SKU:

SX-KLCS-B

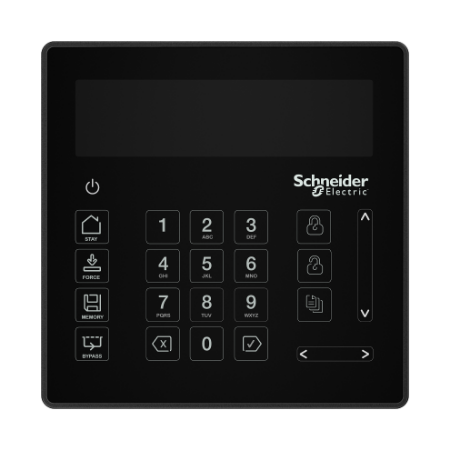

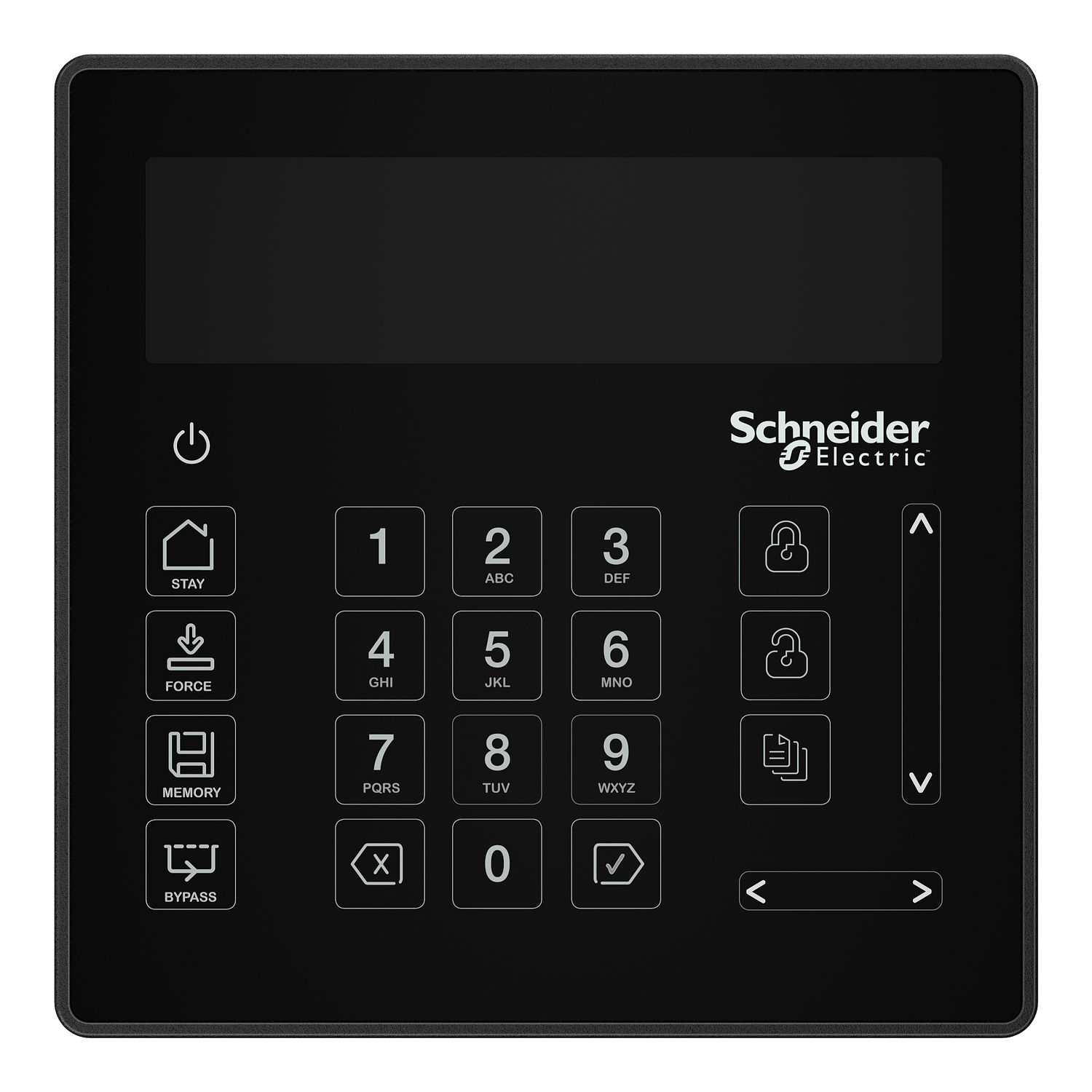

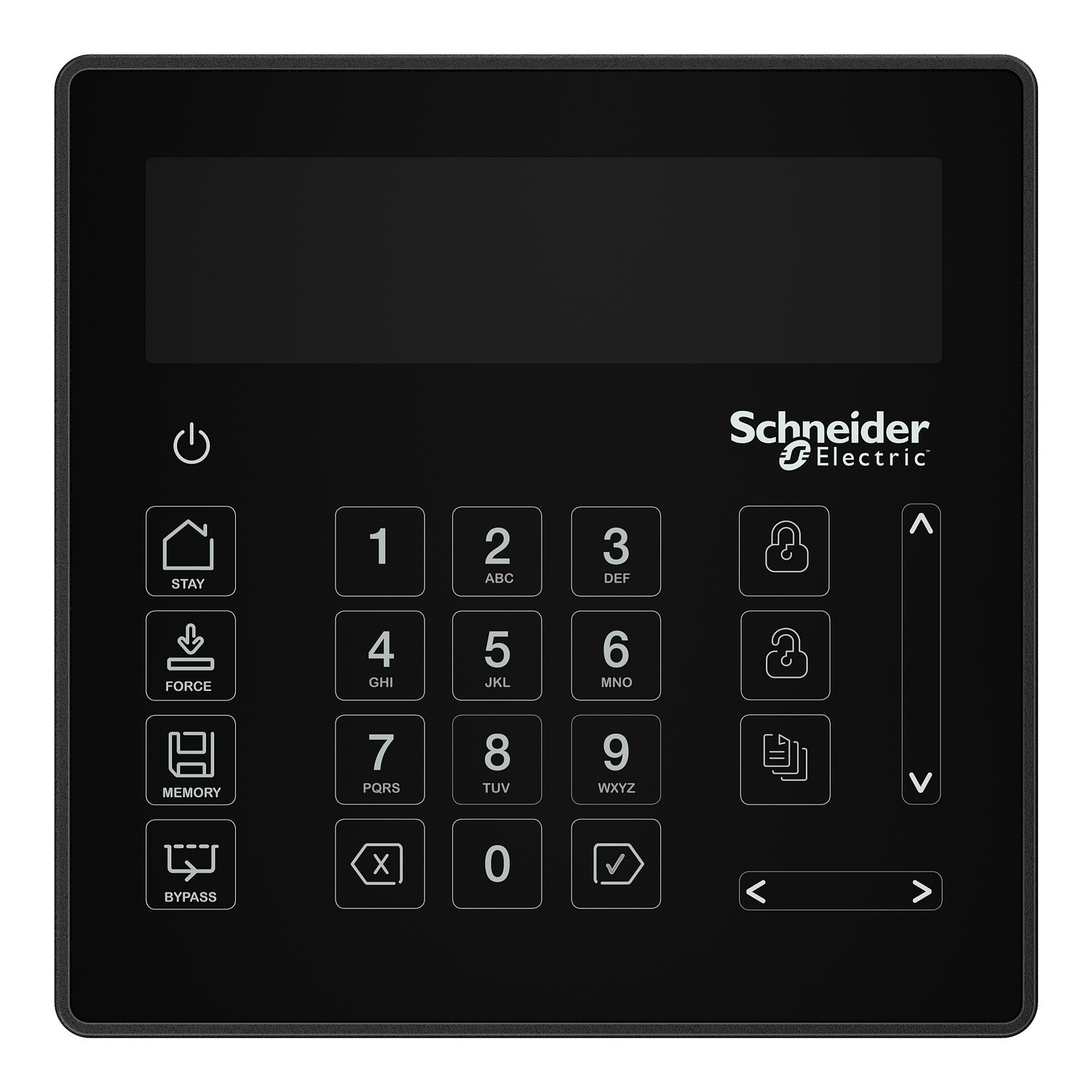

Security Expert touch sense LCD keypad, black

$1,512.72 INC GST

Qty:

Available for Shipping : 27-Jan-2026

Security Expert touch sense LCD keypad, black

Manufacturer: Schneider Electric

Delivery date: 27-Jan-2026

Product Page Link

Product Data Sheet

Security Expert touch sense LCD keypad, black

Attribute name	Attribute value
Main
Device short name	SX-KLCS-B
Device application	control
Control button type	4 for navigation touch button capacitive, 7 operation touch button capacitive, 12 numeric touch button capacitive
Range	EcoStruxure Security Expert
Product or component type	keypad
Colour tint	black
Product brand	Schneider Electric
Complementary
Device composition	keypad, set of resistors
Depth	18 mm
Width	125 mm
[Ue] rated operational voltage	11...14 V DC
[Ie] rated operational current	95 mA maximum, 60 mA in operation
Discrete input type	4 zone for duplex mode input, 2 zone for standard input
Local signalling	buzzer, green LED, disarmed front face, red LED, armed front face, LED, status front face
Net weight	318 g
Display type	backlit LCD: 2 lines of 16 characters
Discrete output type	1 open collector (50 mA), 4 configurable for signaling
Height	125 mm
Environment
Relative humidity	0-93 % non-condensing
Ambient air temperature for storage	-10-85 °C
Ambient air temperature for operation	0-49 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.2 cm
Package 1 Width	12.8 cm
Package 1 Length	3.8 cm
Package 1 Weight	240 g
