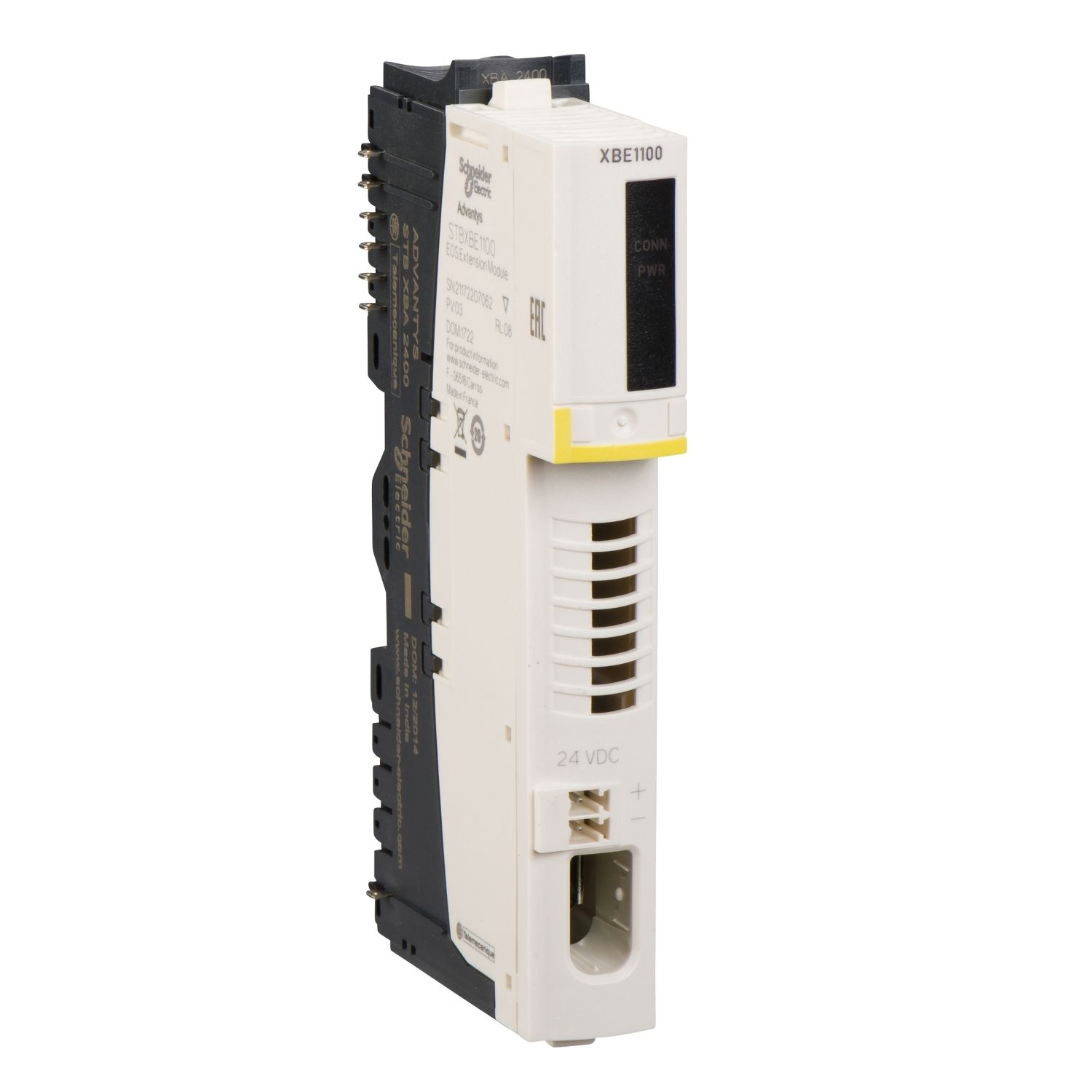

Picture of bus extension kit, Modicon STB, EOS internal
SKU:

STBXBE1100K

bus extension kit, Modicon STB, EOS internal

$384.56 INC GST
Available for Shipping : 08-Dec-2025
bus extension kit, Modicon STB, EOS internal
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This bus extension kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This EOS internal bus extension kit is furnished with FireWire for interface. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA, UL. It is compatible with standard STB modules. The kit includes STBXTS1120, 2-terminal screw type connector, STBXTS2120, 2-terminal spring clamp connector, STBXBA2400 size 2 base and STBXBE1100 module. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon STB distributed I/O solution
Product or component type EOS internal bus extension kit
Complementary
Product compatibility standard STB modules
Electrical connection Firewire for interface
Marking CE
Kit composition STBXTS1120, 2-terminal screw type connector, STBXTS2120, 2-terminal spring clamp connector, STBXBA2400 size 2 base, STBXBE1100 module
Overvoltage category II
Mounting location end of segment (except for the last segment)
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Electromagnetic compatibility immunity to electromagnetic interference conforming to IEC 61131-2
Operating altitude <= 2000 m
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications UL, CSA, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 8.000 cm
Package 1 Length 13.200 cm
Package 1 Weight 115.000 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.151 kg
