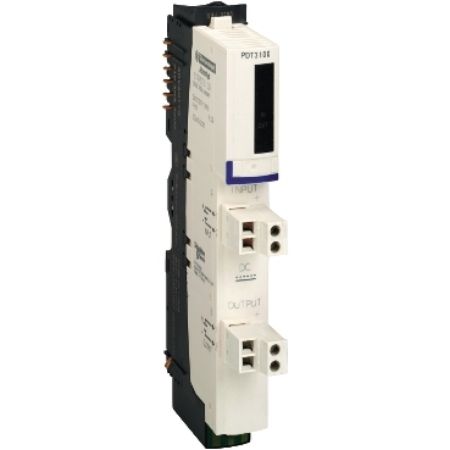

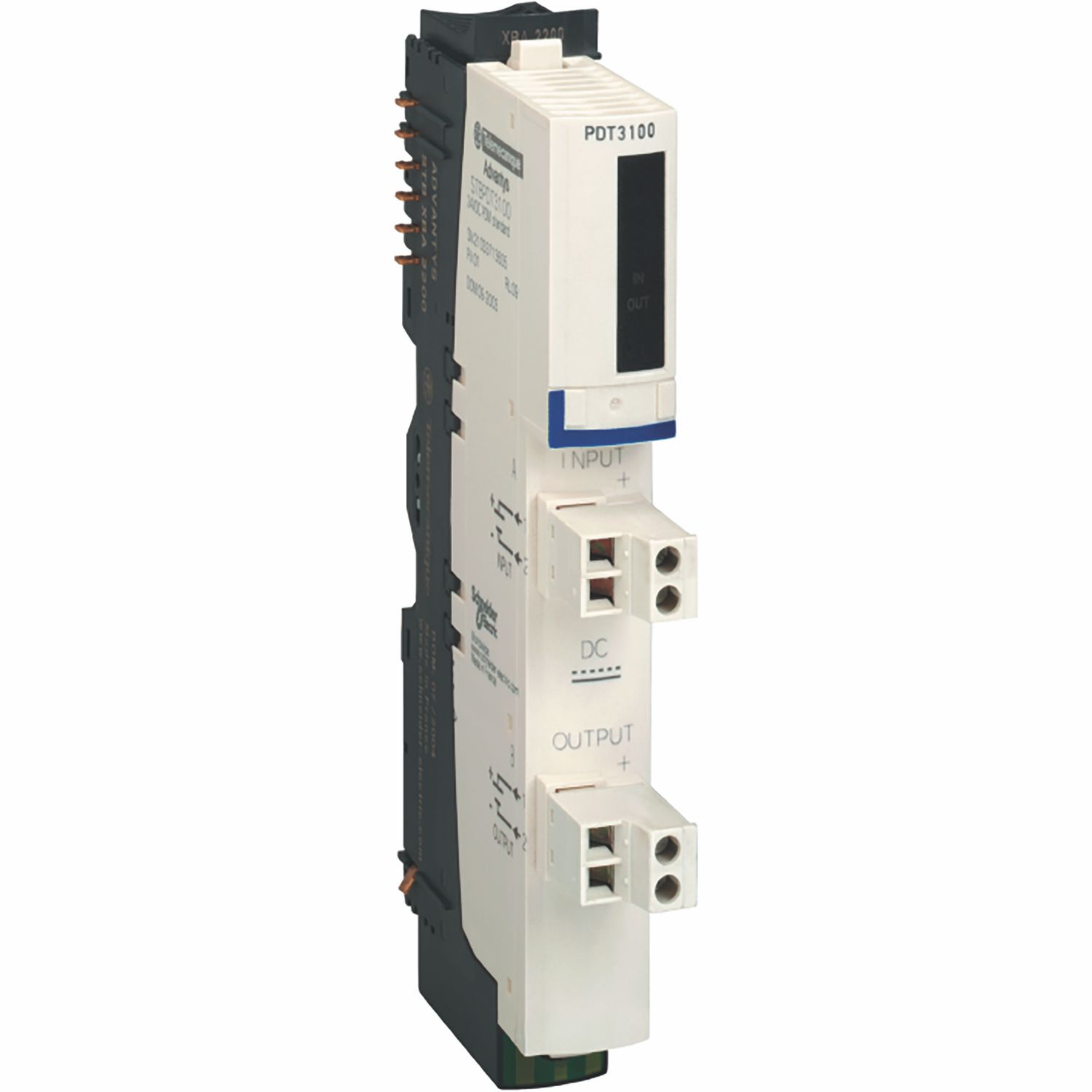

Picture of power distribution kit, Modicon STB, standard, 24V DC
SKU:

STBPDT3100K

power distribution kit, Modicon STB, standard, 24V DC

$279.56 INC GST
Available for Shipping : 14-Dec-2025
power distribution kit, Modicon STB, standard, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Dec-2025
Circularity Profile
Environmental Disclosure
User guide
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard power distribution kit supports hot swapping illegal fallback. This product is compatible with most major fieldbus networks. It allows 30A permissible current for 2 minutes grounding terminal. The voltage detection threshold is <15V ±1 DC IN/OUT LED lit and ≥15V ±1 DC IN/OUT LED non lit. It is an IP20 rated product. Its dimensions are 18.4mm (width) x 65.1mm (depth) x 125mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2200. The kit includes STBXTS2130, spring type connectors, STBPDT2100 module, STBXBA2200 base and STBXTS1130 screw type connectors. It supports STBXBA2200 mounting base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Product or component type standard power distribution kit
Range of product Modicon STB distributed I/O solution
Complementary
Kit composition STBXTS1130, screw type connectors, STBXBA2200 base, STBPDT3100 module, STBXTS2130, spring type connectors
Product compatibility mounting base STBXBA2200
Depth 65.1 mm
Overvoltage category II
Width 18.4 mm
Supply circuit type DC
Permissible current 30 A for 2 minutes grounding terminal
Net weight 0.13 kg
Power supply output current 0-8 A at 30 °C (output circuit), 0-4 A at 30 °C (input circuit), 8-8 A at 60 °C (input/output circuit), 6-6 A at 70 °C (input/output circuit), 12-12 A at 30 °C (input/output circuit), 10-10 A at 45 °C (input/output circuit)
Marking CE
Protection type reverse polarity for actuator bus, built-in overcurrent protection, 5 A time-lag fuse for input circuit, built-in overcurrent protection, 10 A time-lag fuse for output circuit
Voltage detection threshold >= 15 V +/-1 DC IN/OUT LED non lit, < 15 V +/-1 DC IN/OUT LED lit
Hot swapping fallback hot swapping illegal
Status LED 1 LED (green) sensor bus power supply (IN), 1 LED (green) actuator bus power supply (OUT)
Height 125 mm
Voltage range 19.2...30 V DC sensor/actuator bus
[Us] rated supply voltage 24 V
Environment
Operating altitude <= 2000 m
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to EN 61131-2 class 1
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Ambient air temperature for operation -25-70 °C (with derating factor), 0-60 °C (without)
Product certifications CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 8.5 cm
Package 1 Length 14.0 cm
Package 1 Weight 150.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.026 kg
Unit Type of Package 3 3
Number of Units in Package 3 384
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 75.52 kg

Related products

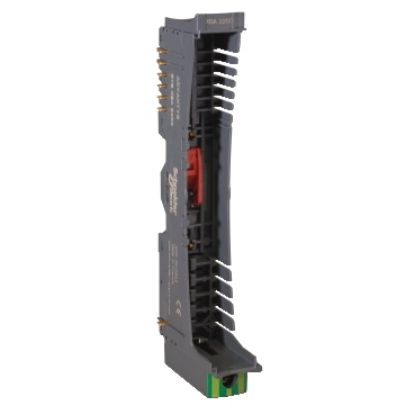

Picture of Modicon STB - mounting base - for power distribution module - 18.4 mm

Modicon STB - mounting base - for power distribution module - 18.4 mm

STBXBA2200
$105.88 INC GST
View Detail

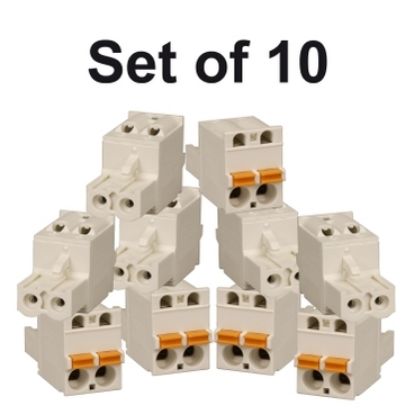

Picture of Modicon STB - 2 pin removable field wiring connector - spring - type

Modicon STB - 2 pin removable field wiring connector - spring - type

STBXTS2130
$82.10 INC GST
View Detail

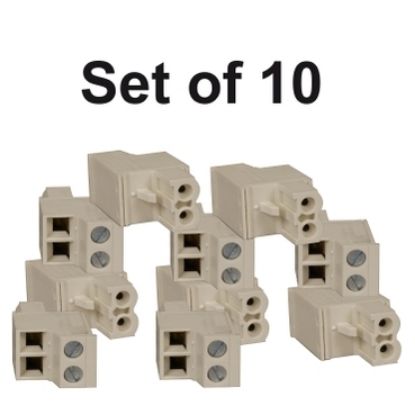

Picture of Modicon STB - 2 pin removable field wiring connector - screw - type
