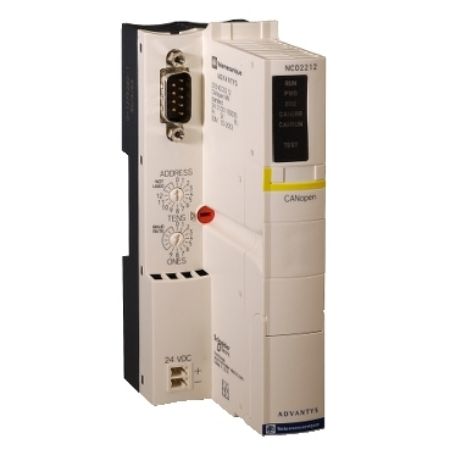

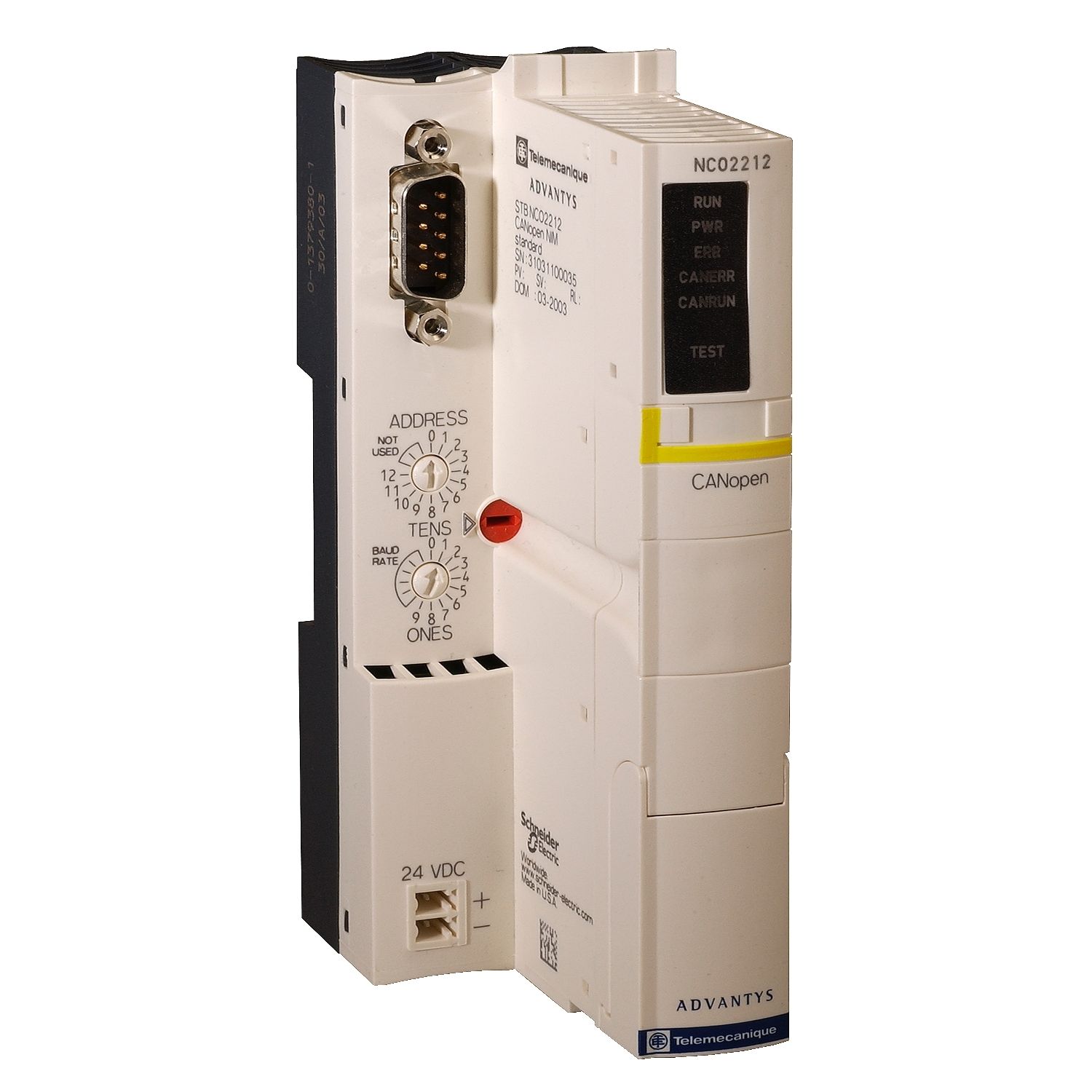

Picture of network interface module, Modicon STB, standard, CANopen bus, 1Mbps
SKU:

STBNCO2212

network interface module, Modicon STB, standard, CANopen bus, 1Mbps

$1,743.17 INC GST
Available for Shipping : 12-Jan-2026
network interface module, Modicon STB, standard, CANopen bus, 1Mbps
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 slaves. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. Communication services are service data object (SDO), network management (NMT) etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Number of slave 127
Structure type CAN field bus
Transmission rate 10 kbit/s for bus length of 5000-5000 m, 1 Mbit/s for bus length of 30-30 m
Range of product Modicon STB distributed I/O solution
Integrated connection type CANopen bus conforming to CIA DS-301 8-way female (RS232 port), CANopen bus conforming to CIA DS-301 HE-13 (RS232 port), CANopen bus conforming to CIA DS-301 9-way male SUB-D connector double shielded twisted pair (bus)
Product or component type standard Network Interface Module
Number of segments 1 primary, maximum 6 extensions
Complementary
Maximum supply current 700 A
Supply voltage limits 19.2-30 V
Input current 430 mA for supply circuit
Marking CE
Communication service Process Data Object (PDO), Network management (NMT), Service Data Object (SDO)
Output voltage 5.25 V DC (tolerance: +/- 0.21 %) for logic bus
Status LED 1 LED (yellow) test mode, 1 LED (red) module error (ERR), 1 LED (red) CAN ERR, 1 LED (green) power supply (PWR), 1 LED (green) island state (RUN), 1 LED (green) CAN RUN
Height 40 mm
Nominal output current 1.2 A, 0.575 A at 60-70 °C
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Net weight 0.135 kg
Power supply type SELV
Number of addressable I/O module 0-32 per island
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Electromagnetic compatibility immunity to electromagnetic interference conforming to IEC 61131-2
Ambient air temperature for operation -25-70 °C (with derating factor), 0-60 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications C-Tick, UL, CSA, FM Class 1 Division 2, ATEX Cat 3G
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.300 cm
Package 1 Width 7.200 cm
Package 1 Length 13.000 cm
Package 1 Weight 169.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.640 kg
