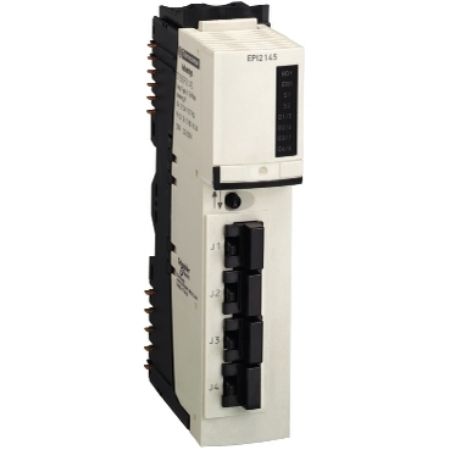

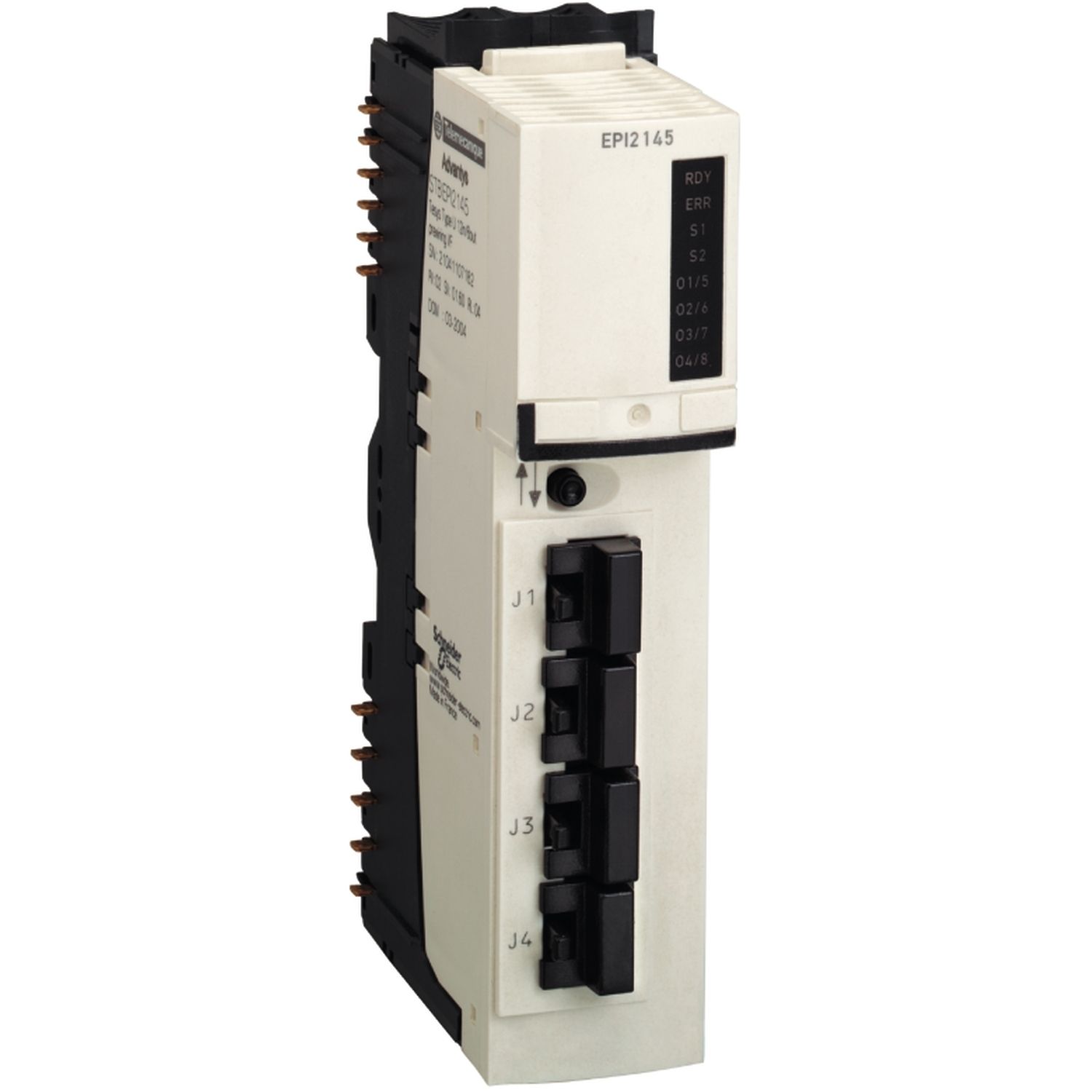

Picture of parallel interface kit, Modicon STB, 12 inputs 8 outputs channel
SKU:

STBEPI2145K

parallel interface kit, Modicon STB, 12 inputs 8 outputs channel

$720.42 INC GST
Available for Shipping : 16-Dec-2025
parallel interface kit, Modicon STB, 12 inputs 8 outputs channel
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Declaration of conformity
Circularity Profile
Environmental Disclosure
User guide
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This parallel interface kit has 12 inputs channels and 8 output channels. It is a parallel interface kit with a rated supply voltage of I/O voltage of 24V DC, a current consumption of ≤100mA at 24V DC for sensor bus, ≤220mA at 24V DC for actuator bus for 150ms, 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is furnished with 4 RJ45 connectors for electrical connection. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 170mm (depth) x 28.1mm (height) and weighs 0.165kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon STB distributed I/O solution
Product specific application TeSys U, TeSys Quickfit
Product or component type parallel interface kit
Complementary
Number of output channels 8
Product compatibility mounting base STBXBA3000, power distribution module STBPDT3100/3105
Input voltage type DC
Output voltage 24 V
Input voltage limits -3...5 V at state 0, 15...30 V at state 1
Current state 1 guaranteed >= 2 mA
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Protection type input protection resistor-limited, short-circuit protection,  overload protection, power protection integrated fuse on PDM time lag 10 A
Output voltage type DC
Number of input channels 12
Hot swapping fallback yes for standard NIMs
Status LED 4 LEDs (green) output status, 2 LEDs (green) switch position (S1 and S2), 1 LED (red) module error (ERR), 1 LED (green) module status (RDY)
Height 28.1 mm
Cold swapping yes
Kit composition STBEPI2145 module, terminal screw type connector, STBXBA3000 base, terminal spring clamp connector
[Us] rated supply voltage 24 V DC
Depth 170 mm
Overvoltage category II
Width 128.3 mm
Electrical connection 4 RJ45 connectors
Input voltage 24 V
Net weight 0.165 kg
Current state 0 guaranteed <= 0.5 mA
Current consumption 80 mA at 24 V DC for actuator bus per output at state 1, 50 mA at 24 V DC for actuator bus (with all 8 outputs at state 0), 100 mA at 5 V DC for logic bus, <= 220 mA at 24 V DC for actuator bus for 150 ms, <= 100 mA at 24 V DC for sensor bus
Supply power distribution module
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Ambient air temperature for operation -25-70 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications CSA, UL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.800 cm
Package 1 Width 8.200 cm
Package 1 Length 13.100 cm
Package 1 Weight 162.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.646 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 69.000 kg

Related products

Picture of mounting base, Modicon STB, for IO module, 28.1mm

mounting base, Modicon STB, for IO module, 28.1mm

STBXBA3000
$137.13 INC GST
View Detail
