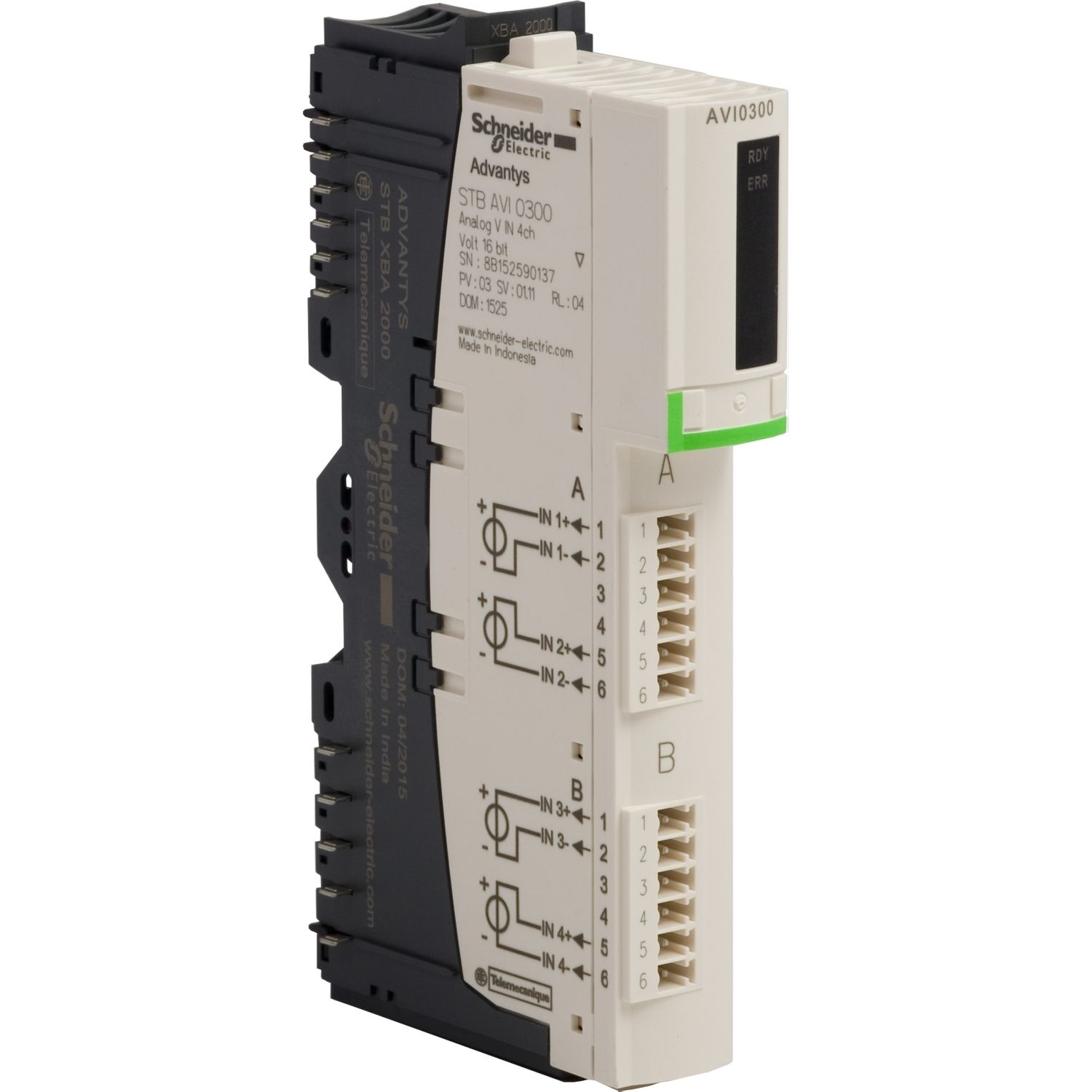

Picture of analog input kit, Modicon STB, standard, +/- 10V, 4 I, 15bits with sign
SKU:

STBAVI0300K

analog input kit, Modicon STB, standard, +/- 10V, 4 I, 15bits with sign

$1,310.54 INC GST
Available for Shipping : 12-Jan-2026
analog input kit, Modicon STB, standard, +/- 10V, 4 I, 15bits with sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This input kit is part of the Modicon STB range, an offer of modular distributed I/O. This standard analog input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 4 analog inputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. The kit includes STBXBA1000 base, STBAVI0300 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.

Products specifications

Attribute name Attribute value
Main
Analogue input resolution 15 bits + sign
Type of filter single low pass input filter 25 Hz
Range of product Modicon STB distributed I/O solution
Analogue input type voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage +/- 10 V
Kit composition STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector, STBAVI0300 module
Analogue input number 4
Product or component type standard analog input kit
Complementary
Product compatibility power distribution module STBPDT3100/3105, mounting base STBXBA1000
Addressing requirement 2 input words
Temperature drift +/-0.01 %/°C
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Data format IEC 61131-2, EN 61131-2
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (red) module error (ERR), 1 LED (green) module status (RDY)
Insulation between channels and sensor bus 30 V
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Overvoltage category II
Maximum source impedance 1 kOhm
Absolute maximum input 50 V DC
Absolute accuracy error +/- 0.75 % of full scale 25 °C
Current consumption 90 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.2 %FS
Differential linearity monotonic
Input impedance 400 kOhm
Maximum supply current for sensors 100 mA per input channels
Environment
Ambient air temperature for operation - 13...158 °F without derating, -25-70 °C
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications C-Tick, ATEX Cat 3G, CSA, UL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 8.000 cm
Package 1 Length 13.200 cm
Package 1 Weight 148.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.670 kg
