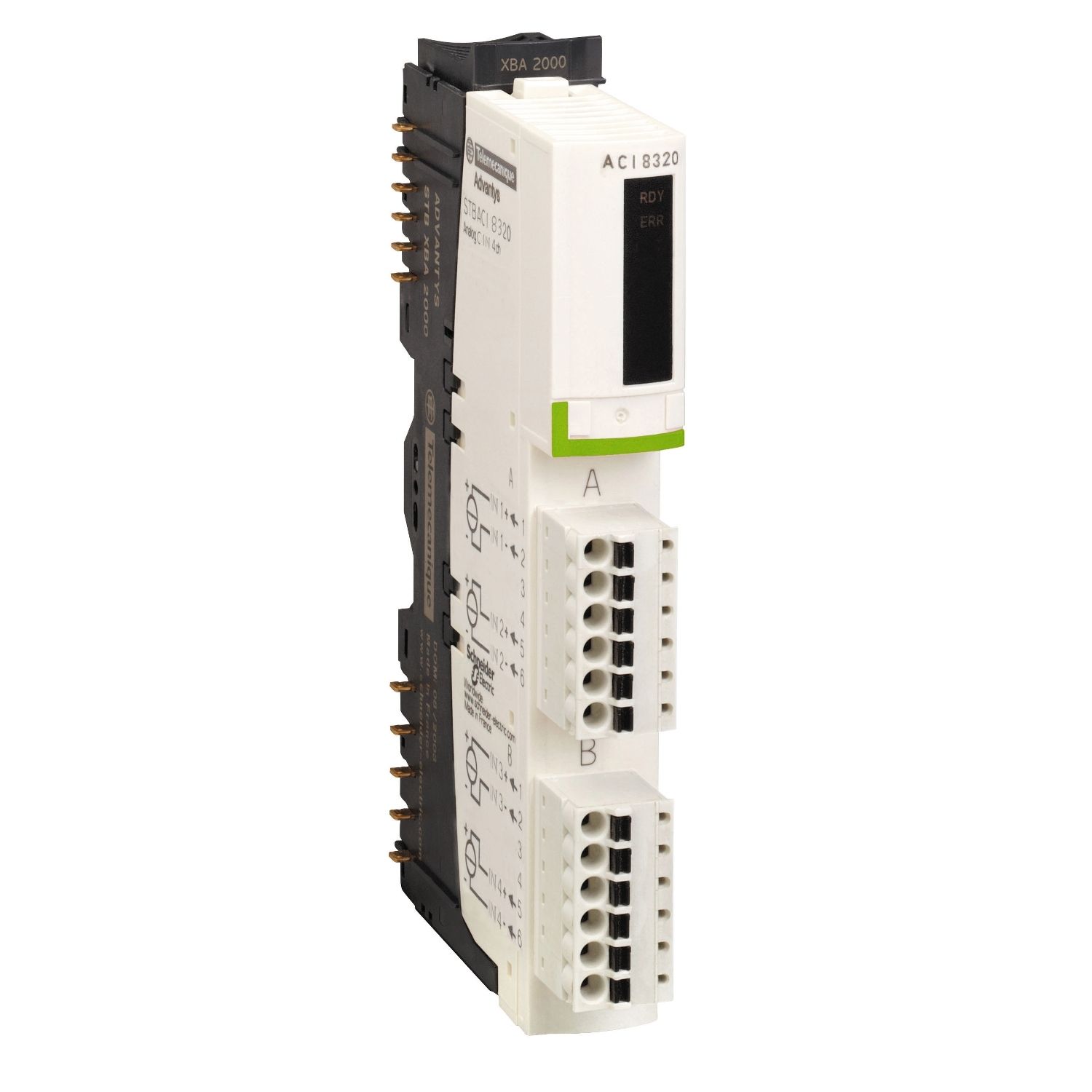

Picture of analog input kit, Modicon STB, standard, 4-20mA, 4 I, 15bits with sign
SKU:

STBACI8320K

analog input kit, Modicon STB, standard, 4-20mA, 4 I, 15bits with sign

$1,310.54 INC GST
Available for Shipping : 12-Jan-2026
analog input kit, Modicon STB, standard, 4-20mA, 4 I, 15bits with sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 4 analogue inputs (current 0mA to 20mA, 4mA to 20mA) with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 95mA at 5V DC for logic bus. It supports hot swap fallback, requires standard type network interface module (NIM). It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBACI8320 module, STBXBA2000 base, STBXTS1100, 6-terminal screw type connector and STBXTS2100, 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.

Products specifications

Attribute name Attribute value
Main
Analogue input resolution 15 bits + sign
Type of filter single low pass input filter 985 Hz
Range of product Modicon STB distributed I/O solution
Analogue input type current 4...20 mA, current 0...20 mA
Kit composition STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector, STBXBA2000 base, STBACI8320 module
Communication port protocol Hart protocol tolerance
Analogue input number 4
Product or component type standard analog input kit
Complementary
Product compatibility mounting base STBXBA2000, power distribution module STBPDT3100/3105
Update time 80 ms
Protection type short-circuit protection
Addressing requirement 8 input words
Temperature drift +/-0.005 %/°C
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Data format IEC 61131-2, EN 61131-2
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (red) module error (ERR), 1 LED (green) module status (RDY)
Insulation between channels and sensor bus 200 V
Height 18.4 mm
Cold swapping yes
Insulation between channels and logic bus 1780 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Absolute maximum input 25 mA/50 V DC
Absolute accuracy error +/- 0.4 % of full scale 25 °C
Current consumption 95 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.05 %FS
Input impedance 250 Ohm
Maximum supply current for sensors 25 mA per input channels
Environment
Ambient air temperature for operation 32...140 °F without derating, -25-70 °C
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications UL, FM Class 1 Division 2, ATEX Cat 3G, C-Tick, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 8.0 cm
Package 1 Length 13.0 cm
Package 1 Weight 146.0 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.599 kg
Unit Type of Package 3 3
Number of Units in Package 3 448
Package 3 Height 60.0 cm
Package 3 Width 80.0 cm
Package 3 Length 448.0 cm
Package 3 Weight 65.408 kg
