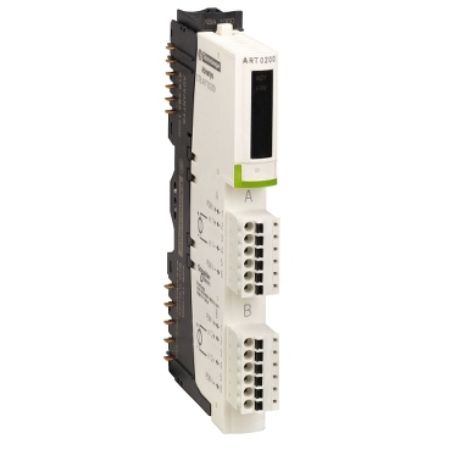

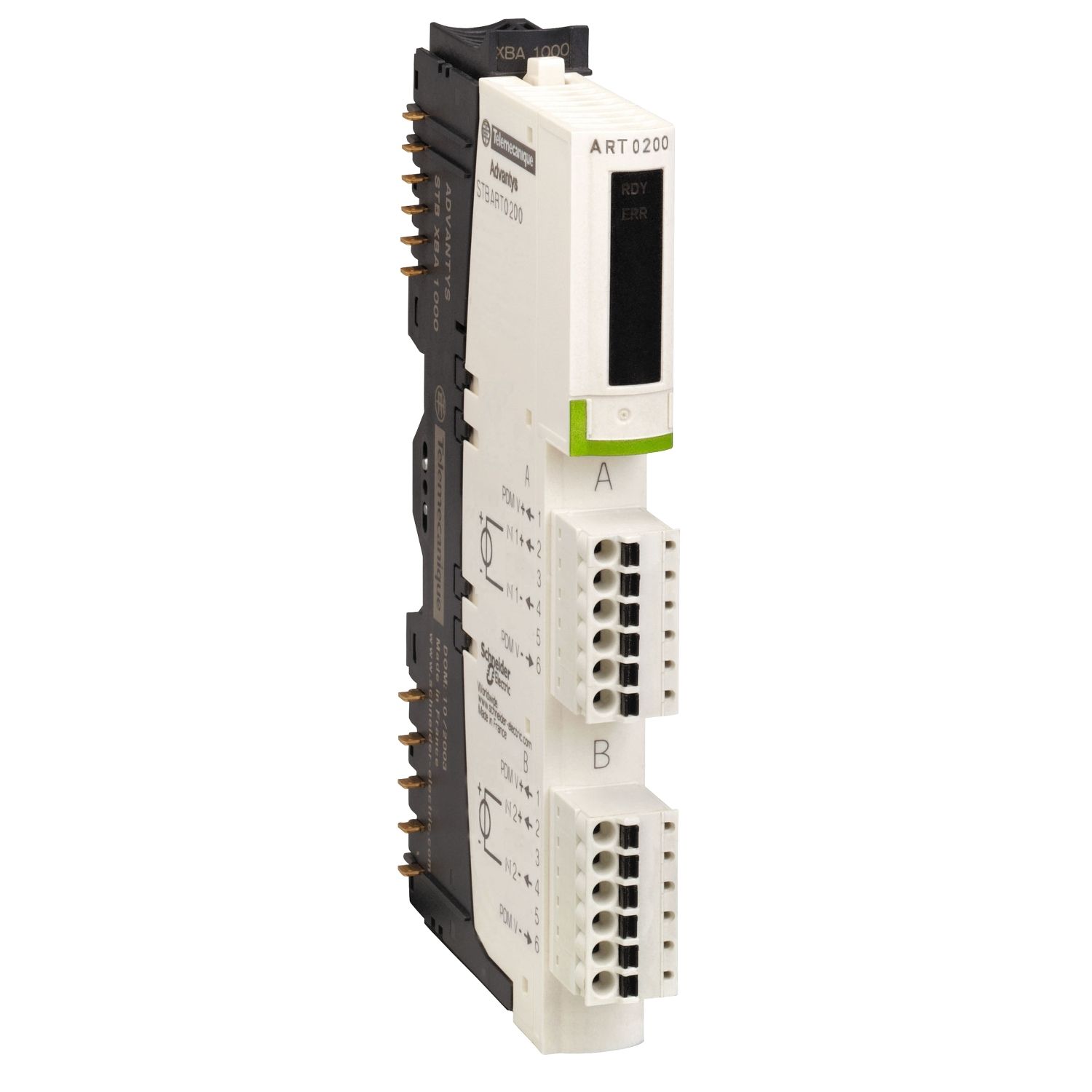

Picture of standard analog input kit, Modicon STB, 2I, 15 bits with sign
SKU:

STBART0200K

standard analog input kit, Modicon STB, 2I, 15 bits with sign

$998.72 INC GST
Available for Shipping : 12-Jan-2026
standard analog input kit, Modicon STB, 2I, 15 bits with sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBART0200 module, STBXTS1100, 6-terminal screw type connector, STBXBA1000 base and STBXTS2100, 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.

Products specifications

Attribute name Attribute value
Main
Analogue input resolution 15 bits + sign
Type of filter single low pass input filter 25 Hz
Range of product Modicon STB distributed I/O solution
Analogue input type thermocouple -50...+1665 °C thermocouple S, thermocouple -50...+1665 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+760 °C thermocouple J, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000 2, 3 or 4 wires IEC, temperature probe -60...+180 °C Ni 100 2, 3 or 4 wires IEC, temperature probe -200...+850 °C Pt 1000 2, 3 or 4 wires IEC, temperature probe -200...+850 °C Pt 100 2, 3 or 4 wires IEC, temperature probe -100...+450 °C Pt 1000 2, 3 or 4 wires US/JIS, temperature probe -100...+450 °C Pt 100 2, 3 or 4 wires US/JIS, temperature probe -100...+260 °C Cu 10 2, 3 or 4 wires IEC, voltage +/- 80 mV
Kit composition STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBXTS1100, 6-terminal screw type connector, STBART0200 module
Analogue input number 2
Product or component type standard analog input kit
Complementary
Measurement resolution 0.1 °C or 0.1 °F thermocouple, 0.1 °C or 0.1 °F temperature probe, 0.01 mV voltage
Measurement accuracy +/- 7 °C thermocouple J with internal cold-junction compensation 60 °C, +/- 6.8 °C thermocouple E with internal cold-junction compensation 60 °C, +/- 6.8 °C thermocouple B with internal cold-junction compensation 60 °C, +/- 6.4 °C thermocouple T with internal cold-junction compensation 60 °C, +/- 5.5 °C thermocouple K with internal cold-junction compensation 60 °C, +/- 5.1 °C thermocouple J with internal cold-junction compensation 25 °C, +/- 5 °C thermocouple S with internal cold-junction compensation 60 °C, +/- 4.6 °C thermocouple E with internal cold-junction compensation 25 °C, +/- 4.6 °C thermocouple B with internal cold-junction compensation 25 °C, +/- 4.4 °C thermocouple T with internal cold-junction compensation 25 °C, +/- 4.2 °C thermocouple R with internal cold-junction compensation 60 °C, +/- 4.1 °C thermocouple S with internal cold-junction compensation 25 °C, +/- 4 °C thermocouple K with internal cold-junction compensation 25 °C, +/- 4 °C Cu 10 25 °C internal, +/- 4 °C Cu 10 25 °C external, +/- 3.6 °C thermocouple R with internal cold-junction compensation 25 °C, +/- 2.85 °C thermocouple T with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple S with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple R with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple K with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple J with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple E with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple B with external cold-junction compensation 60 °C, +/- 2 °C Pt 1000 25 °C external, +/- 2 °C Pt 100 25 °C external, +/- 1.75 °C thermocouple T with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple S with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple R with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple K with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple J with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple E with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple B with external cold-junction compensation 25 °C, +/- 1 °C Pt 1000 25 °C internal, +/- 1 °C Pt 100 25 °C internal, +/- 1 °C Ni 1000 25 °C internal, +/- 1 °C Ni 1000 25 °C external, +/- 1 °C Ni 100 25 °C internal, +/- 1 °C Ni 100 25 °C external
Product compatibility power distribution module STBPDT3100/3105, mounting base STBXBA1000
Protection type short-circuit protection
Addressing requirement 2 input words, 1 word for cold-junction compensation
Conversion time 400 ms thermocouple with external cold-junction compensation 50 Hz, 360 ms thermocouple with external cold-junction compensation 60 Hz, 340 ms temperature probe 50 Hz 3 wires, 300 ms temperature probe 60 Hz 3 wires, 230 ms thermocouple with internal cold-junction compensation 50 Hz, 210 ms thermocouple with internal cold-junction compensation 60 Hz, 200 ms temperature probe 50 Hz 2 or 4 wires, 180 ms temperature probe 60 Hz 2 or 4 wires, 170 ms voltage 50 Hz, 150 ms voltage 60 Hz
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Data format IEC 61131-2, EN 61131-2
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (red) module error (ERR), 1 LED (green) module status (RDY)
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Overvoltage category II
Absolute maximum input +/- 7.5 V DC
Absolute accuracy error +/- 0.15 % of full scale 25 °C external, +/- 0.1 % of full scale 25 °C internal
Maximum wiring resistance 500 Ohm Pt 1000 IEC/US/JIS 4 wires, 500 Ohm Ni 1000 IEC/US/JIS 4 wires, 50 Ohm Pt 100 IEC/US/JIS 4 wires, 50 Ohm Ni 100 IEC/US/JIS 4 wires, 50 Ohm Cu 10 IEC/US/JIS 4 wires, 200 Ohm Pt 1000 IEC/US/JIS 2 or 3 wires, 200 Ohm Ni 1000 IEC/US/JIS 2 or 3 wires, 20 Ohm Pt 100 IEC/US/JIS 2 or 3 wires, 20 Ohm Ni 100 IEC/US/JIS 2 or 3 wires, 20 Ohm Cu 10 IEC/US/JIS 2 or 3 wires
Current consumption 30 mA at 5 V DC for logic bus
Supply power distribution module
Input impedance 10 MOhm +/- 80 mV
Maximum supply current for sensors 100 mA per input channels
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-70 °C
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications C-Tick, ATEX Cat 3G, CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 8.300 cm
Package 1 Length 13.300 cm
Package 1 Weight 136.000 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.031 kg
