Picture of single phase panel, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 90...280V AC, output 48...660V AC
SKU:

SSP1A450M7T

single phase panel, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 90...280V AC, output 48...660V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
single phase panel, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 90...280V AC, output 48...660V AC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
End of life manual
Product environmental
Declaration of conformity
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

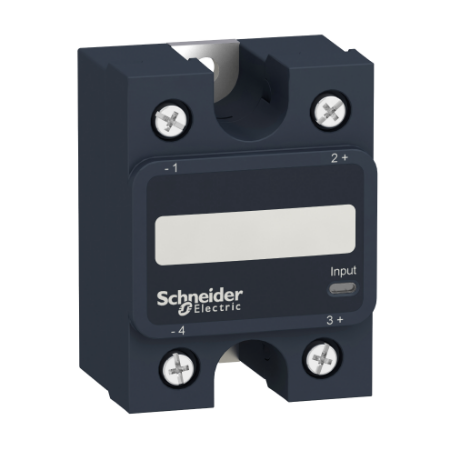

This Harmony SSP solid state panel mount single-phase relay is rated 50A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSP1
[Uc] control circuit voltage 90...280 V
[In] rated current 50 A
Provided equipment thermal pad
Solid state output type zero voltage switching, SCR output
Network number of phases 1 phase
Product or component type solid state relay up to 50 A
Output switching mode zero voltage switching
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Protection device type type 2 - 32 A miniature circuit breaker (MCB) - curve B, type 1 - 40 A miniature circuit breaker (MCB) - curve B
Input current limits 5-10 mA
Capacitance unbalance 8 pF for input/output
Maximum switching voltage 10 V AC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Absolute maximum voltage 1200 V
Device presentation complete product
Thermal impedance 0.48 °C-in²/W at 25 psi
IP degree of protection IP20
Maximum leakage current 1 mA off-state
Minimum switching voltage 90 V AC turn-on
[Uimp] rated impulse withstand voltage 6 kV input to output, 6 kV output to case
Net weight 89.2 g
Local signalling LED, green for input
Load current 0.15-50 A
Surge current 625 A for 16.6 ms
Response time 25 ms (turn-on), 30 ms (turn-off)
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Connections - terminals ring lugs: 11.7 x 4.5 mm for output, forked type tag connectors: 11.7 x 4.5 mm for output, ring lugs: 9.2 x 4 mm for input, forked type tag connectors: 9.2 x 4 mm for input, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Maximum voltage drop <1.15 V on-state
Maximum I²t for fusing 1629 A².s for 8.33 ms at 60 Hz, 1770 A².s for 10 ms at 50 Hz
Thermal resitance 0.45 °C/W junction to case
Insulation resistance 1000 MOhm at 500 V DC
Tightening torque 2...2.2 N.m for output, 1.5...1.7 N.m for input
Motor power hp 5 hp 480 V AC, 2 hp 240 V AC, 0.75 hp 120 V AC
Cos phi 0.5-0.5 (with maximum load)
Safety reliability data MTTFd = 1875.9 years, B10d = 1731395
Environment
Overvoltage category III
Ambient air temperature for storage -40-125 °C
Marking CE, CSA, UL, EAC
Pollution degree 2
Standards IEC 62314, UL 508, CSA C22.2 No 14-13, IEC 60950-1
Ambient air temperature for operation -40-80 °C
Product certifications EAC, CSA, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.800 cm
Package 1 Width 4.800 cm
Package 1 Length 6.500 cm
Package 1 Weight 101.900 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.232 kg

Related products

Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W

SSRHP05
$133.97 INC GST $141.02 INC GST
View Detail
