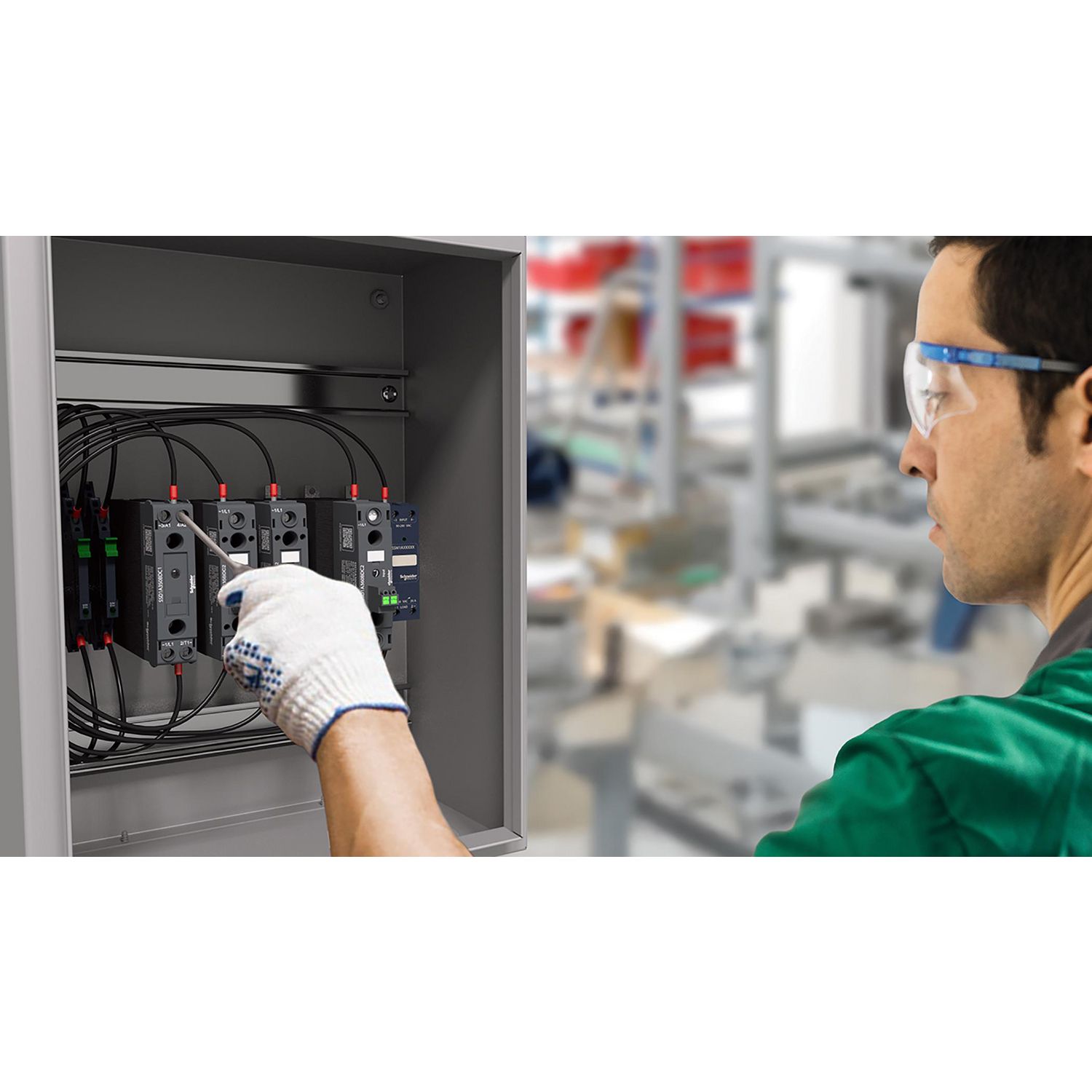

Image of product in real life situation
Catalog
Circularity Profile
Product Page Link
Product Data Sheet

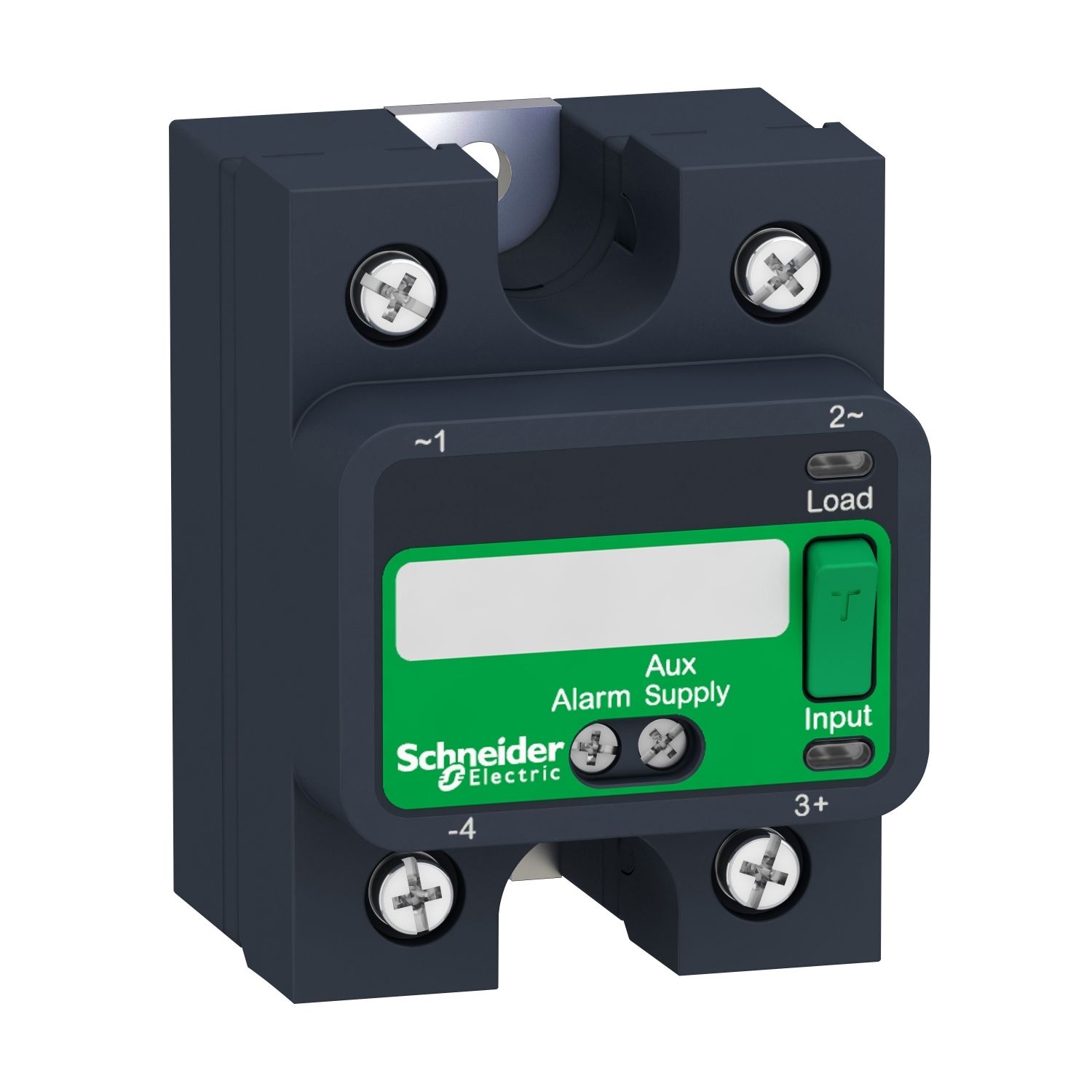

SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 125A, is controlled with a 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It is a green premium product and conforms to international standard and certifications.

Products specifications

Attribute name Attribute value
Main
Device short name SSP1
[Uc] control circuit voltage 4...32 V
[In] rated current 125 A
Provided equipment thermal pad
Solid state output type zero voltage switching, SCR output
Network number of phases 1 phase
Product or component type solid state relay up to 125 A
Output switching mode zero voltage switching
Mounting support panel
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Auxiliary connection terminal screw-type connector, 0.5...1.5 mm² (AWG 20...AWG 16) with slotted Philips screwdriver
Protection device type type 2 - 63 A miniature circuit breaker (MCB) - curve B, type 1 - 80 A miniature circuit breaker (MCB) - curve B
Input current limits 7-12 mA
Minimum load 150 mA
Capacitance unbalance 8 pF for input/output
Maximum switching voltage 1 V DC turn-off
Maximum output current 30 mA at 32 V DC
DV/dt 500 V/µs off-state at maximum voltage
Absolute maximum voltage 1200 V
Electromagnetic compatibility surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2
Device presentation complete product
IP degree of protection IP20
Maximum leakage current 1 mA off-state
Minimum switching voltage 4 V DC turn-on
[Uimp] rated impulse withstand voltage 6 kV input to output, 6 kV output to case
Net weight 97.1 g
Local signalling LED, flashing, red for load cut-off/short-circuit, LED, steady, red for open-circuit for control input, LED, flashing, amber for control input to energise load, LED, steady, amber for ON status for load, LED, steady, green for ON status for control input/test button actuated
Load current 0.15-125 A
Surge current 1750 A for 16.6 ms
Response time 0.5 cycle (turn-off), 0.5 cycle (turn-on)
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Connections - terminals ring lugs: 11.7 x 4.5 mm for output, forked type tag connectors: 11.7 x 4.5 mm for output, ring lugs: 9.2 x 4 mm for input, forked type tag connectors: 9.2 x 4 mm for input, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Maximum voltage drop <1.15 V on-state
Maximum I²t for fusing 13950 A².s for 10 ms at 50 Hz, 12709 A².s for 8.33 ms at 60 Hz
Thermal resitance 0.22 °C/W junction to case
Insulation resistance 1000 MOhm at 500 V DC
Tightening torque 4.4...5.3 lb.in for auxillary terminal, 0.5...0.6 N.m for auxillary terminal, 13.27...15.04 lb.in for input, 17.7...19.47 lb.in for output, 2...2.2 N.m for output, 1.5...1.7 N.m for input
Motor power hp 10 hp 480 V AC, 5 hp 240 V AC, 2 hp 120 V AC
Cos phi 0.5-0.5 (with maximum load)
Safety reliability data B10d = 1731395, MTTFd = 1875.9 years
Environment
Overvoltage category III
Ambient air temperature for storage -40-125 °C
Marking UL, CSA, EAC, CE
Pollution degree 2
Standards IEC 60950-1, UL 508, IEC 62314, CSA C22.2 No 14-13
Ambient air temperature for operation -40-80 °C
Product certifications CSA, UL, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 4.7 cm
Package 1 Length 6.6 cm
Package 1 Weight 114.0 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.511 kg

Related products

Heat sink, Harmony, panel mount, thermal resistance 0.7 degree C W

SSRHP07
$123.31 INC GST $129.80 INC GST
View Detail

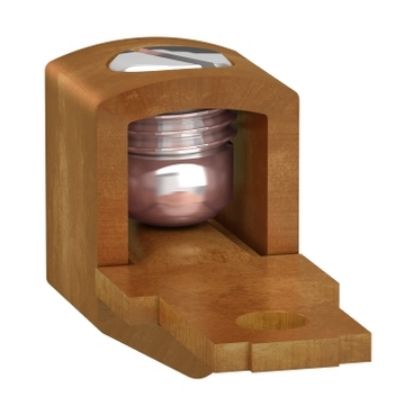

Copper terminals lug, Harmony, for SSP1 solid state relay
