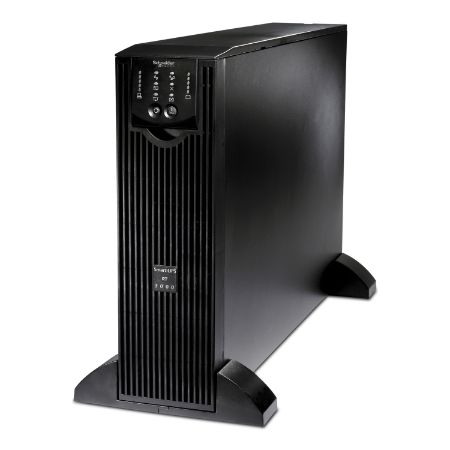

Picture of Industrial UPS, On-Line UPS 3000VA, 230V, with pre-installed input/output hardwire kit
Picture of Industrial UPS, On-Line UPS 3000VA, 230V, with pre-installed input/output hardwire kit
Picture of Industrial UPS, On-Line UPS 3000VA, 230V, with pre-installed input/output hardwire kit
SKU:

SR13KXIET

Industrial UPS, On-Line UPS 3000VA, 230V, with pre-installed input/output hardwire kit

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Industrial UPS, On-Line UPS 3000VA, 230V, with pre-installed input/output hardwire kit
  • 3000VA/2100W UPS with pre-installed input/output hardwire kit.
  • 220V, 230V and 240V user selectable output.
  • SmartSlot for optional remote management and monitoring of the UPS and connected load.
  • 2-year warranty on UPS and internal batteries.
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Declaration of conformity
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
Proven Industrial UPS power protection for control applications and harsh environments.

Products specifications

Attribute name Attribute value
Main
Rated power in W 2100 W
Main Input Voltage 230 V
Number of cables 1
Input voltage 240 V, 220 V
Output voltage 240 V, 220 V
Number of rack unit 3U
Provided equipment user manual, Smart UPS signalling RS-232 cable, CD with software
Rated power in VA 3000 VA
Output connector type hard wire 3-wire (H N + E) 1
Output voltage 230 V
Number of battery replacement quantity 1
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Battery option SURT192XLBP 10 20160 VAh , SURT192XLBP 8 16320 VAh , SURT192XLBP 6 12480 VAh , SURT192XLBP 5 10560 VAh , SURT192XLBP 4 8640 VAh , SURT192XLBP 3 6720 VAh , SURT192XLBP 2 4800 VAh , SURT192XLBP 1 2880 VAh
Curve X-axis title load
Curve Y-axis maximum 100 %
Curve Y-axis units percentage
Wave type sine wave
Mounting preference lower
Battery charger power 382 W rated
Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Surge energy rate 480 J
Number of power module filled slots 0
Two post mountable 0
Battery curve C
Show note OP temperature No
Noise suppression full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
UPS type double conversion online
Number of tare power 60 W
Curve X-axis minimum 0 %
Liquid value 0
Number of battery filled slots 2
Size UPS version telecom, server, internetworking
Curve Y-axis minimum 50 %
Battery power in VAH 960 VAh runtime
Curve X-axis maximum 100 %
Curve X-axis units percentage
Curve load maximum 100 %
Battery recharge time 2.5 h
UPS size WS
Emergency power off yes
Redundant No
Curve Y-axis title efficiency
Extended runtime 1
Maximum configurable power in VA 3000 VA
Maximum configurable power in W 2100 W
Curve equation efficiency
Number of power module free slots 0
Environmental
Relative humidity 0-95 %
Ambient air temperature for storage -15-45 °C
Ambient air temperature for operation 0-40 °C
Operating altitude 0...10000 ft
Acoustic level 55 dBA
Heat dissipation 609 Btu/h
Storage altitude 0-50000 ft
Storage Relative Humidity 0-95 %
Physical
Colour black
Mounting mode not rack-mountable
Height 43.2 cm
Depth 66 cm
Width 13 cm
Mounting location front
Net weight 54.55 kg
USB compatible No
Input
Input voltage limits 160...280 V
Network frequency 50/60 Hz +/- 5 Hz auto-sensing
Output
Efficiency 92 % (full load)
Crest factor 3 : 1
Graph display 1
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Harmonic distortion less than 3 %
Bypass type internal bypass (automatic and manual)
Conformance
Standards EN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021
Product certifications VDE, VCCI, JEON, GOST, CSA, CE, C-Tick, BSMI
Batteries & Runtime
Battery design life 2 year(s)
Battery type lead-acid battery
UPS design life 3 year(s)
Battery life 3-5 year(s)
Communications & Management
Free slots 1
Alarm alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
General
Value multiplier 0
Performance multiplier 0
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 98.000 cm
Package 1 Width 60.300 cm
Package 1 Length 34.700 cm
Package 1 Weight 63.640 kg
