SKU:

SP-F2F8

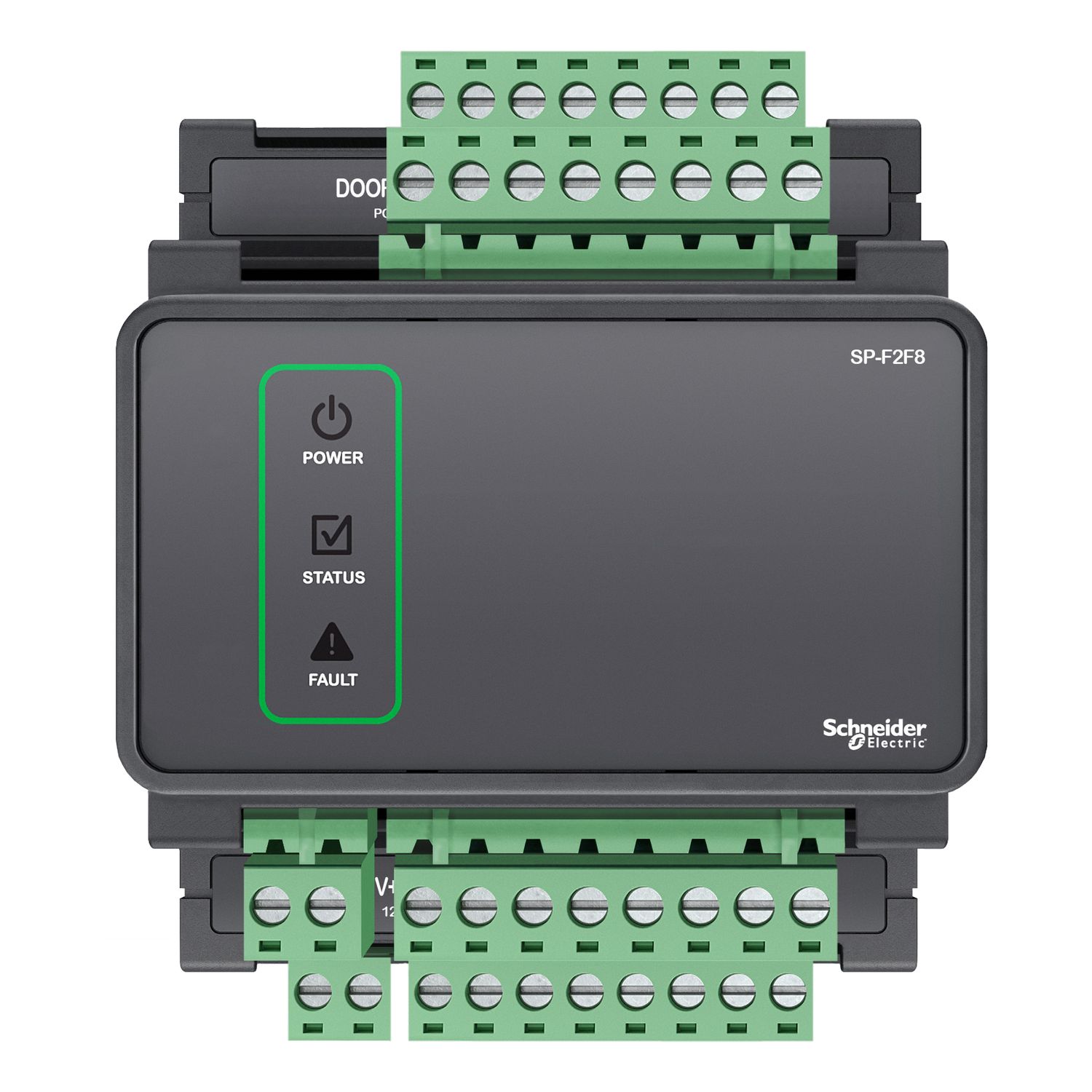

Security Expert Security Purpose F/2F Expansion

$6,216.00 EXCL GST

Qty:

Available for Shipping : 18-Mar-2025

Security Expert Security Purpose F/2F Expansion

Manufacturer: Schneider Electric

Product Page Link

Product Data Sheet

Security Expert Security Purpose F/2F Expansion

Attribute name	Attribute value
Main
Device application	equipment monitoring and control
Width	90 mm
[In] rated current	50 mA
Relative humidity	0-93 % non-condensing
Output current	140 mA
Ambient air temperature for storage	-10-85 °C
Colour	black
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Discrete input type	8 reader input (F/2F)
Range	EcoStruxure Security Expert
Net weight	177 g
Input/output type	current
Product or component type	I/O expansion module
Ambient air temperature for operation	0-50 °C
Height	60 mm
Product brand	Schneider Electric
Product certifications	AS/NZS, ACMA, CE
Complementary
Maximum supply current	2.4 A
Quality labels	RCM
Environmental characteristic	indoor use
Local signalling	1 LED (red) for fault, 1 LED (green/red) for status, 1 LED (green) for power
Range compatibility	EcoStruxure Security Expert controller
Standards	ICES-003 class A, FCC CFR 47 part 15: class A
Mounting support	DIN rail
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.661 cm
Package 1 Width	0.508 cm
Package 1 Length	0.762 cm
Package 1 Weight	176.902 g
