SKU:

SP-PSU-8A

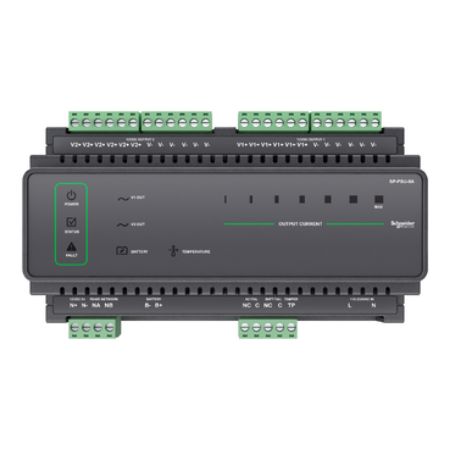

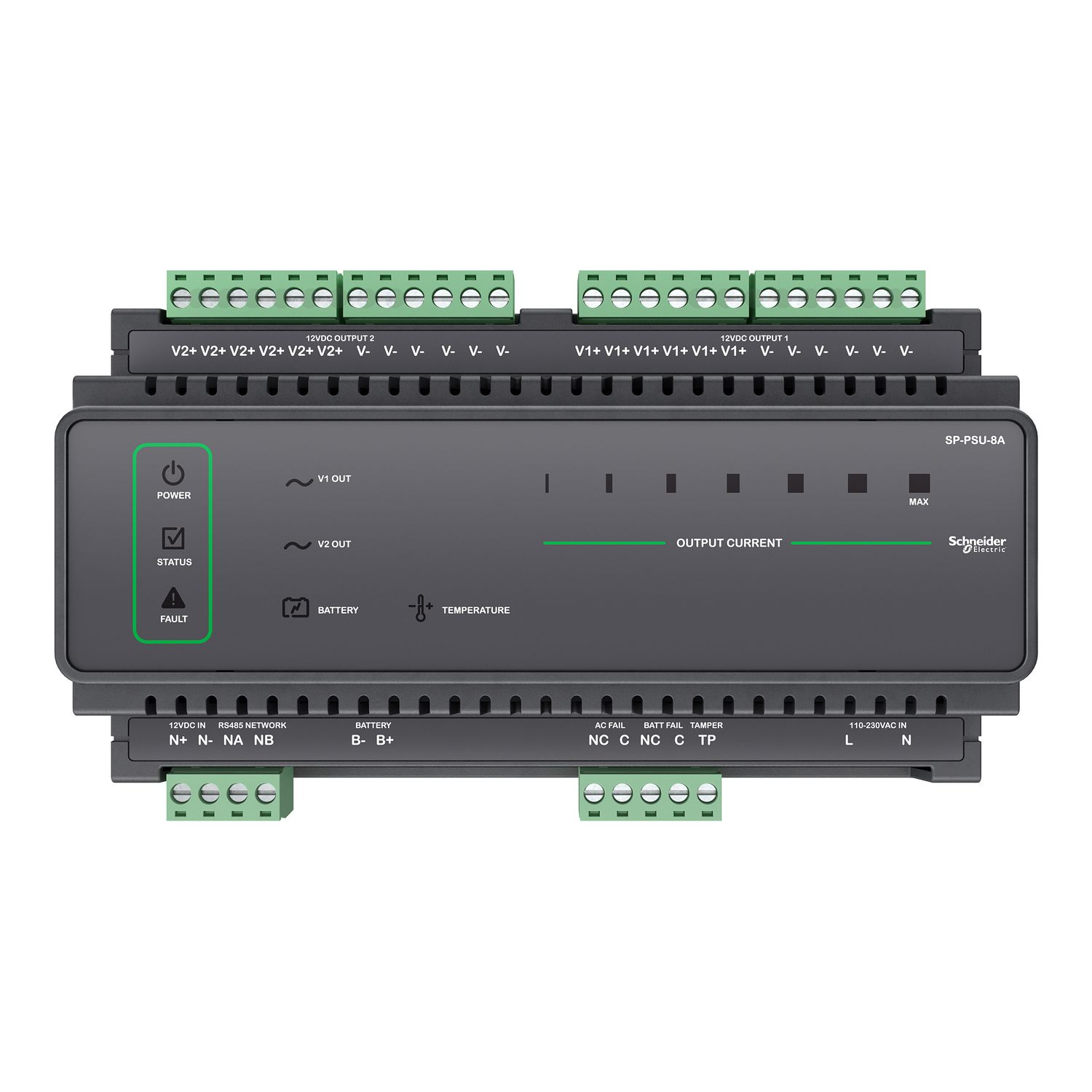

Security Expert security purpose power module, 8 A

$4,765.20 INC GST

Qty:

Available for Shipping : 09-Dec-2025

Security Expert security purpose power module, 8 A

Manufacturer: Schneider Electric

Delivery date: 09-Dec-2025

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

Security Expert security purpose power module, 8 A

Attribute name	Attribute value
Main
Device short name	SP-PSU-8A
Device application	power supply
Width	90 mm
Charging current	500 mA
Input voltage	120 V AC 2.5 A
Relative humidity	0-93 % non-condensing
Ambient air temperature for storage	-10-85 °C
Colour	black
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Mounting mode	DIN rail mount
Height	60 mm
Range	EcoStruxure Security Expert
Net weight	440 g
Product or component type	power supply module
Standards	EN 50133-1:1998, FCC CFR 47 part 15, CSN EN 60950-1:ed. 2, 2006, EN 50131-6:2008, EN 50131-3:2009, EN 50131-1:2006
Number of outputs	2 form B relay output
Ambient air temperature for operation	0-50 °C
Product brand	Schneider Electric
Product certifications	ACMA, CE
Complementary
Backup type	battery
Quality labels	RCM
Communication interface	RS485
Function available	processor controlled battery level testing and indication, intelligent charging algorithm monitors battery and AC supply
Tamperproof of settings	tamper contact
Length	156.8 mm
Supply	mains
Environment
Environmental characteristic	indoor use

Output voltage	12.2 V DC,<= 5 A, 12.64 V DC,<= 7.5 A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	18.4 cm
Package 1 Width	10.8 cm
Package 1 Length	6.8 cm
Package 1 Weight	540 g
