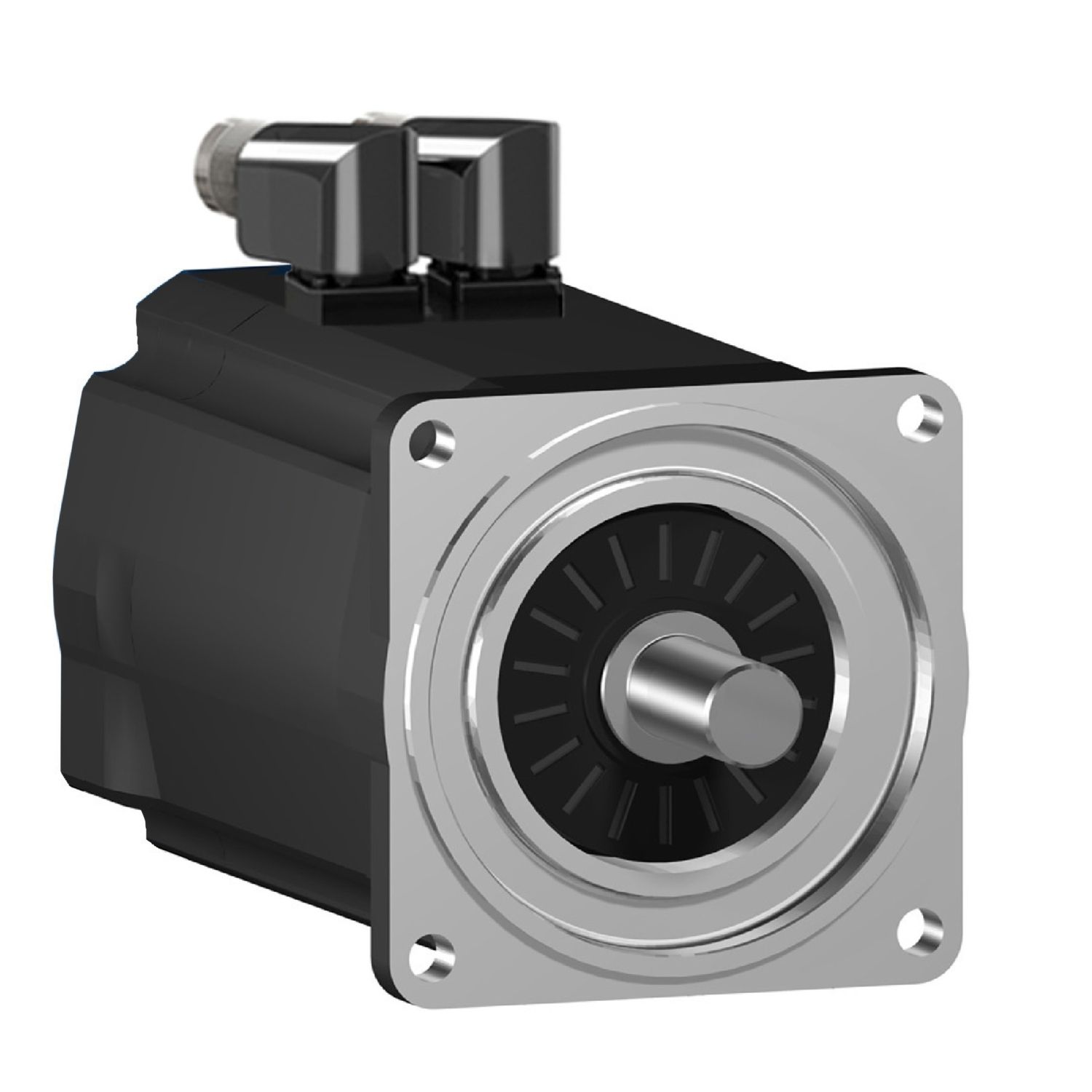

Picture of servo motor SH3 140 33,4Nm,nokey,single,brake,90°conn.IP54/IP65,4k RPM
SKU:

SH31404P01F2000

servo motor SH3 140 33,4Nm,nokey,single,brake,90°conn.IP54/IP65,4k RPM

$7,446.00 EXCL GST
Available for Shipping : 04-Mar-2025
servo motor SH3 140 33,4Nm,nokey,single,brake,90°conn.IP54/IP65,4k RPM
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name SH3.....P
Range compatibility PacDrive 3
Product or component type servo motor
Complementary
Temperature copper hot 130 °C
Continuous stall torque 33.4 N.m at 115...480 V three phase
Torque constant 1.57 N.m/A at 120 °C
Network number of phases 3, three phase
Nominal torque 11.1 N.m at 480 V three phase, 12.9 N.m at 400 V three phase, 26.3 N.m at 230 V single phase, 30.2 N.m at 115 V single phase
Continuous stall current 21.3 A
Stator resistance 0.28 Ohm
Electrical connection rotatable right angled connector
Nominal speed 3600 rpm at 480 V three phase, 3000 rpm at 400 V three phase, 1500 rpm at 230 V single phase, 750 rpm at 115 V single phase
IP degree of protection IP65 shaft bushing: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5
Shaft end smooth shaft
Type of cooling natural convection
Mounting holes diameter 11 mm
Nominal output power 4190 W at 480 V three phase, 4040 W at 400 V three phase, 4130 W at 230 V single phase, 2370 W at 115 V single phase
Shaft diameter 24 mm
Peak stall torque 131.9 N.m at 115...480 V three phase
Number of mounting holes 4
[Us] rated supply voltage 115...480 V
Motor flange size 140 mm
Stator inductance 5.945 mH
Centring collar diameter 130 mm
Sizing reference SH31404P
Maximum current Irms 95.6 A
Net weight 27.8 kg
Length 420.5 mm
Output current 3s peak 2 130 A
Shaft length 50 mm
Speed feedback resolution 128 periods
Holding brake with
Centring collar depth 3.5 mm
Maximum axial force Fa 300 N
Back emf constant 104 V/krpm at 20 °C
Number of motor poles 5
Rotor inertia 29.2 kg.cm²
Mounting support international standard flange
Encoder type absolute single turn SinCos Hiperface
Maximum radial force Fr 1840 N at 3000 rpm, 2110 N at 2000 rpm, 2660 N at 1000 rpm
Holding torque 36 N.m
Maximum mechanical speed 4000 rpm
Continuous power 4040 W
Circle diameter of the mounting holes 165 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.0 cm
Package 1 Width 30.0 cm
Package 1 Length 79.5 cm
Package 1 Weight 30.4 kg

Related products

Picture of Power Cable for Axis 1 for STS40/60/80; 5 meter

Power Cable for Axis 1 for STS40/60/80; 5 meter

VW3E1143R050
$238.32 EXCL GST
View Detail
