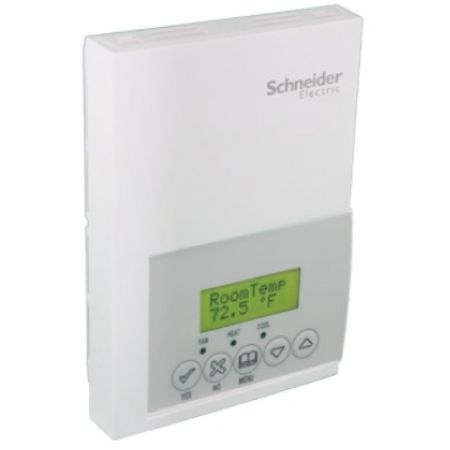

Picture of Zoning System Controller: Wireless - Zigbee Proprietary, with Economizer, with Scheduling, 2H/2C
SKU:

SEZ7656R1045W

Zoning System Controller: Wireless - Zigbee Proprietary, with Economizer, with Scheduling, 2H/2C

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Zoning System Controller: Wireless - Zigbee Proprietary, with Economizer, with Scheduling, 2H/2C
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Brochure
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
Zoning System Controller: Wireless - Zigbee Proprietary, with Economizer, with Scheduling, 2H/2C

Products specifications

Attribute name Attribute value
Main
Device short name SEZ7000
Device application low voltage rooftop, zoning system
Depth 1.18 in
Market segment residential
Width 3.42 in
Temperature setting range 54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating
Sensor type 10 kOhm T2 NTC thermistor
Relative humidity 0-95 % RH, non-condensing
Product specific application 2-stage cooling, 2-stage heating
Input voltage 0…10 V DC
Ambient air temperature for storage -22-122 °F
AWG gauge AWG 22...AWG 18
Directives 1999/5/EC - R&TTE directive
Communication port protocol Zigbee
Input type 1 x analog, 1 x universal, 2 x dry contact
Range EcoStruxure Building Expert
Net weight 0.75 lb(US)
Product name SE7000 Series
Output type 4 xrelay
Product or component type heat pump controller
Standards ICES-003, FCC part 15 Subpart C, UL 873, CSA C22.2 No 24
Ambient air temperature for operation 32-122 °F
Height 4.92 in
Storage Relative Humidity 0-95 % RH, non-condensing
Complementary
Device presentation without cover
Rated operational power in VA 2 VA
Environment
Electrical insulation class class II
Economizer No
PIR cover No
Humidity control No
Scheduling Yes
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 10.1 cm
Package 1 Length 5.2 cm
Package 1 Weight 45.0 g
