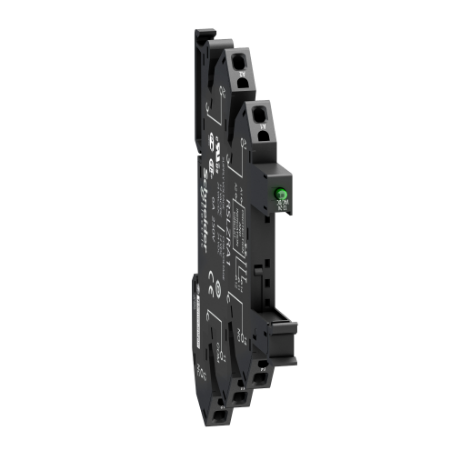

Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 110V AC DC
SKU:

RSLZRA3

Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 110V AC DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 110V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Declaration of conformity
Technical illustration
Product Page Link
Product Data Sheet
"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RSLZ
[Uc] control circuit voltage 110 V
Product compatibility plug-in relay RSL with 1 C/O contact at 60 V DC
Device presentation basic element
Rated operational voltage limits 88...126.5 V
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 6 A
[Ue] rated operational voltage < 300 V AC
Switching voltage 110 V AC/DC
[In] rated current 6 A
Contacts type and composition 1 C/O
Product or component type socket
Complementary
Group of product RSL_SPRING_TERS_110
Compatibility code RSLZ
Sale per indivisible quantity 10
CAD overall height 78.6 mm
Fixing mode plastic compression spring (35 mm symmetrical DIN rail)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
Clamping force 10-40 N
[Uimp] rated impulse withstand voltage 3.6 kV
CAD overall depth 101 mm
CAD overall width 6.2 mm
Overvoltage category III
Connections - terminals spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end, spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, spring terminals
Net weight 0.023 kg
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Ambient air temperature for operation -40-55 °C
Standards UL 508, IEC 61984
Product certifications GOST, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.600 cm
Package 1 Width 8.500 cm
Package 1 Length 10.800 cm
Package 1 Weight 24.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 8.800 cm
Package 2 Length 10.800 cm
Package 2 Weight 265.000 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.663 kg
