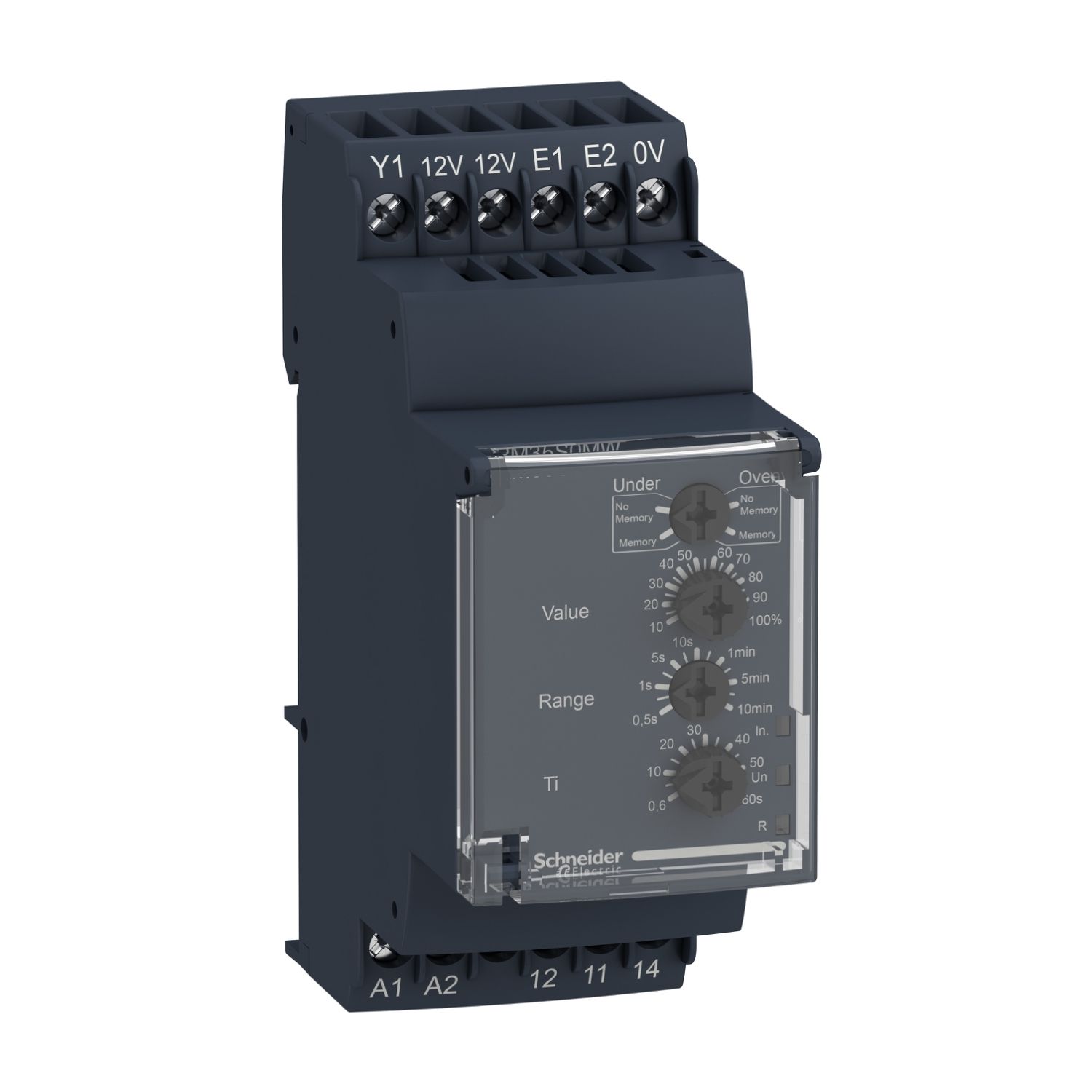

Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Picture of Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
SKU:

RM35S0MW

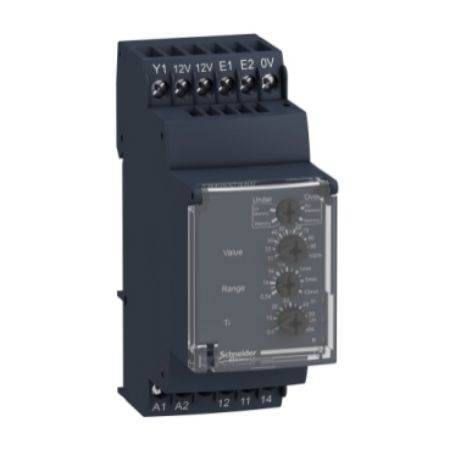

Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC

Old price: $478.50 INC GST
$454.58 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Harmony Control Relays, Modular speed control relay, 5A, 1CO, 24…240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Declaration of conformity
Environmental Disclosure
Circularity Profile

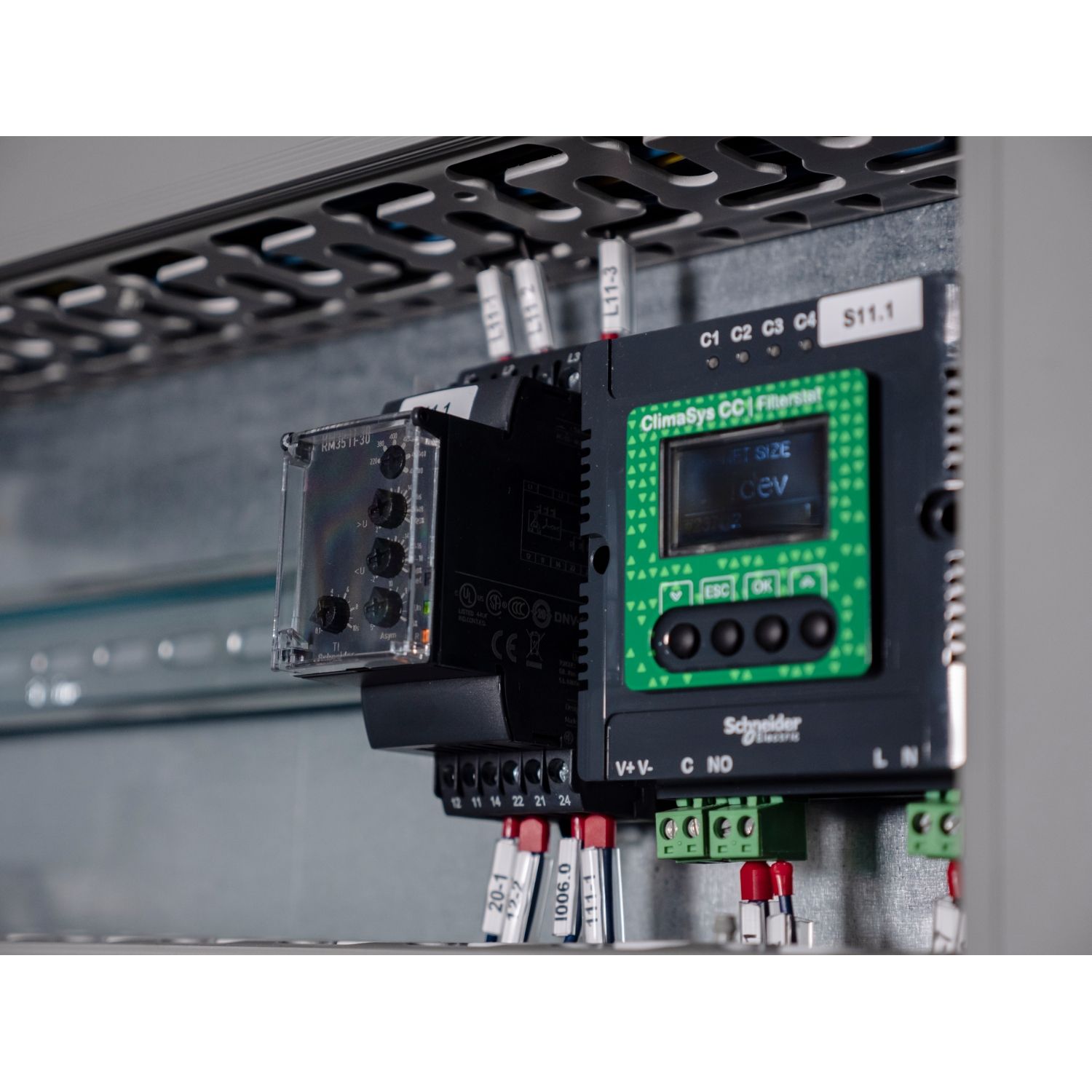

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet

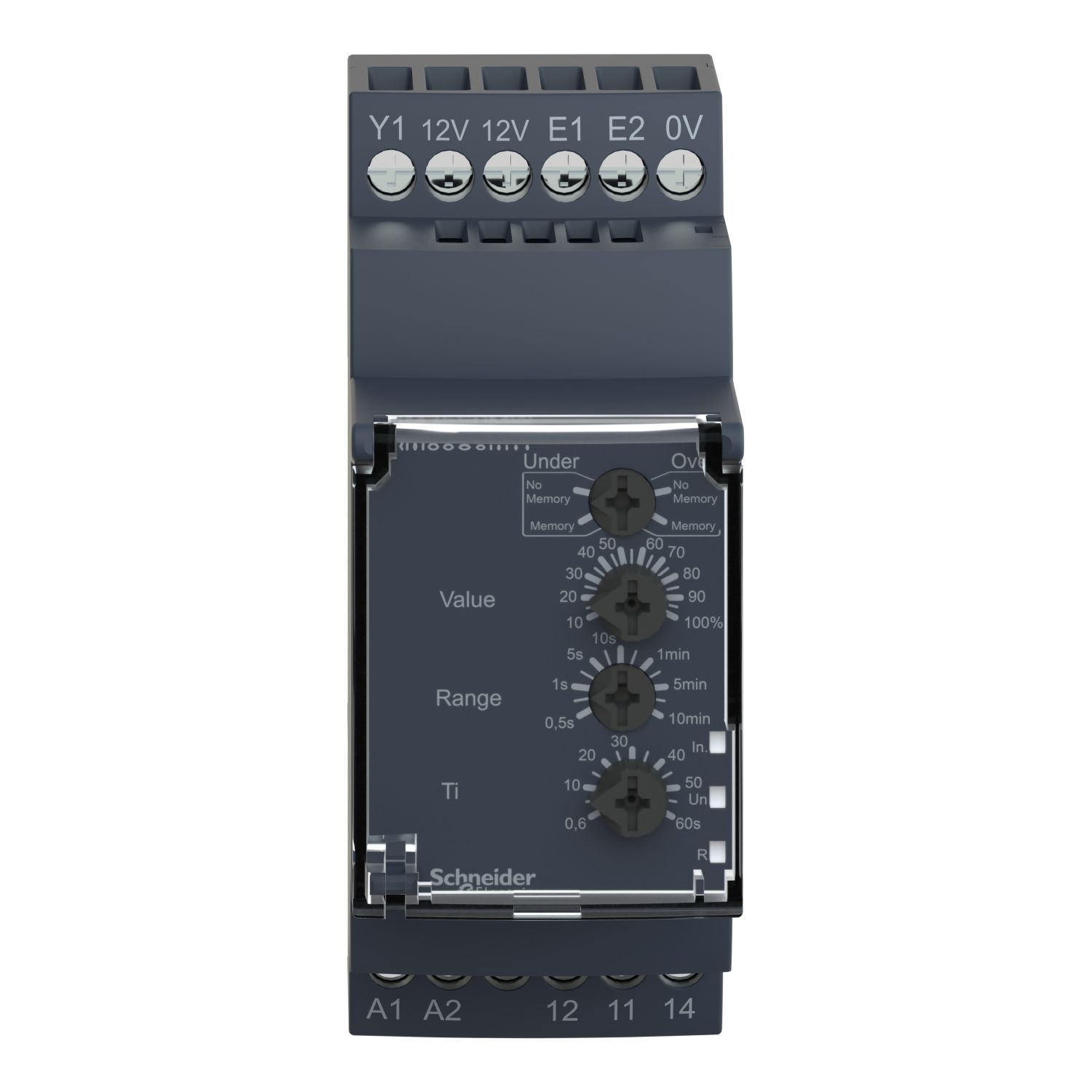

This Harmony RM35-S control relay allows monitoring of speed control. This modular control relay is ideal for monitoring of electrical values and speed variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 24...240 V
Relay type speed control relays
Time delay range 0.6...60 s adjustable on energisation delay (tolerance: 0...10 % of the full scale value)
Relay name RM35S
Measurement range 0.05...600 s, 0.1...1 min, 0.1...1 s, 0.5...5 s, 1...10 s, 1...10 min, 0.5...5 min, 0.05...0.5 s
Range of product Harmony Control Relays
Maximum power consumption in VA 5 VA AC
[In] rated current 5 A
Relay monitored parameters underspeed, overspeed
Time delay type adjustable 0.6...60 s Ti- inhibition time delay upon startup
Contacts type and composition 1 C/O
Utilisation category DC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component type speed control relay
Switching capacity in VA 1250 VA
Connections - terminals screw connectors
Minimum switching current 10 mA at 5 V DC
Complementary
Supply frequency 50/60 Hz +/- 10 %
Run-up delay at power-up 0.05 s
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit voltage limits - 15 % + 10 % Un
Compatibility code RM3
Mechanical durability 30000000 cycles
Supply voltage limits 20.4-264 V AC/DC
Input compatibility volt-free contact input (E1), 12 V, 9.5 kOhm, voltage input (E1), 0...30 V, 9.5 kOhm, high state >= 4.5 V low state <= 1 V, NAMUR sensor (E2), 12 V, 1.5 kOhm, 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA
[Us] rated supply voltage 11.5...12.5 V
Control type without test button
Threshold setting 10...100 %
Marking CE : 73/23/EEC, CE : EMC 89/336/EEC
Contacts material cadmium free
Status LED 1 LED yellow for relay (R), 1 LED yellow for inhibit, 1 LED green for power ON
Measurement error < +/- 1 % over the whole range with voltage variation, +/- 0.1 %/°C with temperature variation
Insulation resistance > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
Repeat accuracy +/- 0.5 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability 100000 cycles
Maximum power consumption in W 3 W DC
Width 35 mm
Measurement accuracy +/- 10 % of the full scale value
Impulse duration >= 5 ms low state, >= 5 ms high state
Housing material self-extinguishing plastic
Nominal output current 5 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage category III conforming to IEC 60664-1
[Ui] rated insulation voltage 250 V conforming to IEC 60664-1
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time 1 s supply Un in memory mode on time delay, 50 ms contact S2 in memory mode on time delay
Maximum switching voltage 250 V AC/DC
Input frequency 0.0017-20 Hz
Operating position any position without derating
Response time 15 ms max (on crossing the threshold)
Polarity reversible polarity on DC supply
Output contacts 1 C/O
Operating rate <= 360 operations/hour full load
Hysteresis 5-5 % of threshold
Maximum supply current for sensors 50 mA for 24...240 V DC, 50 mA for 24...240 V AC, 40 mA for < 24 V DC at 25 °C, 40 mA for < 24 V AC at 25 °C
Environment
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Electromagnetic compatibility immunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Immunity to microbreaks 50 ms
Ambient air temperature for operation -20-50 °C
Non-dissipating shock wave 4 kV
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
Shock resistance 15 gn for 11 ms conforming to IEC 60255-21-1
Dielectric test voltage 2 kV AC 50 Hz
Standards IEC 60255-6, NF EN 60255-6
Product certifications CSA, GL, UL, GOST, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.4 cm
Package 1 Width 7.4 cm
Package 1 Length 9.4 cm
Package 1 Weight 130.0 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.181 kg
