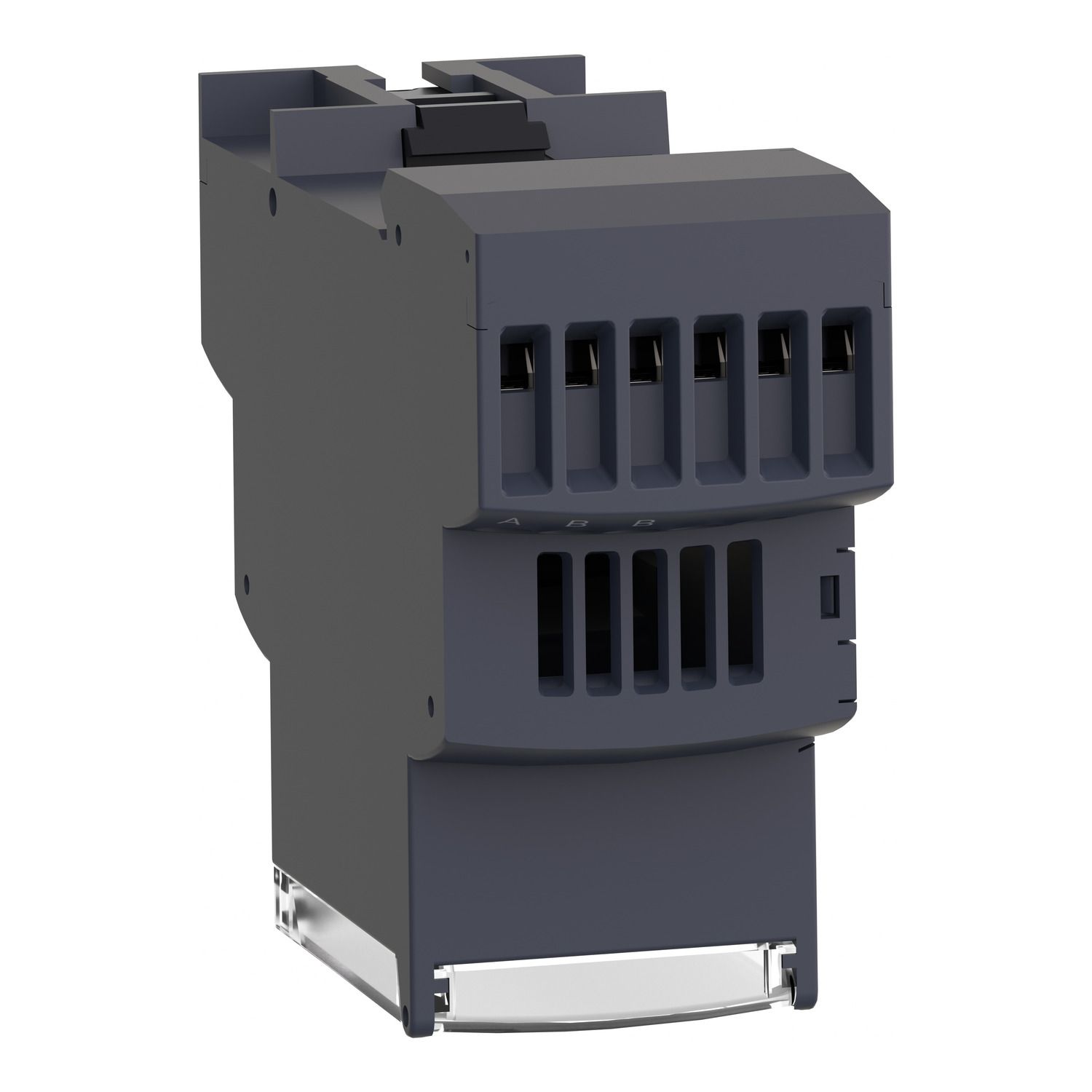

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

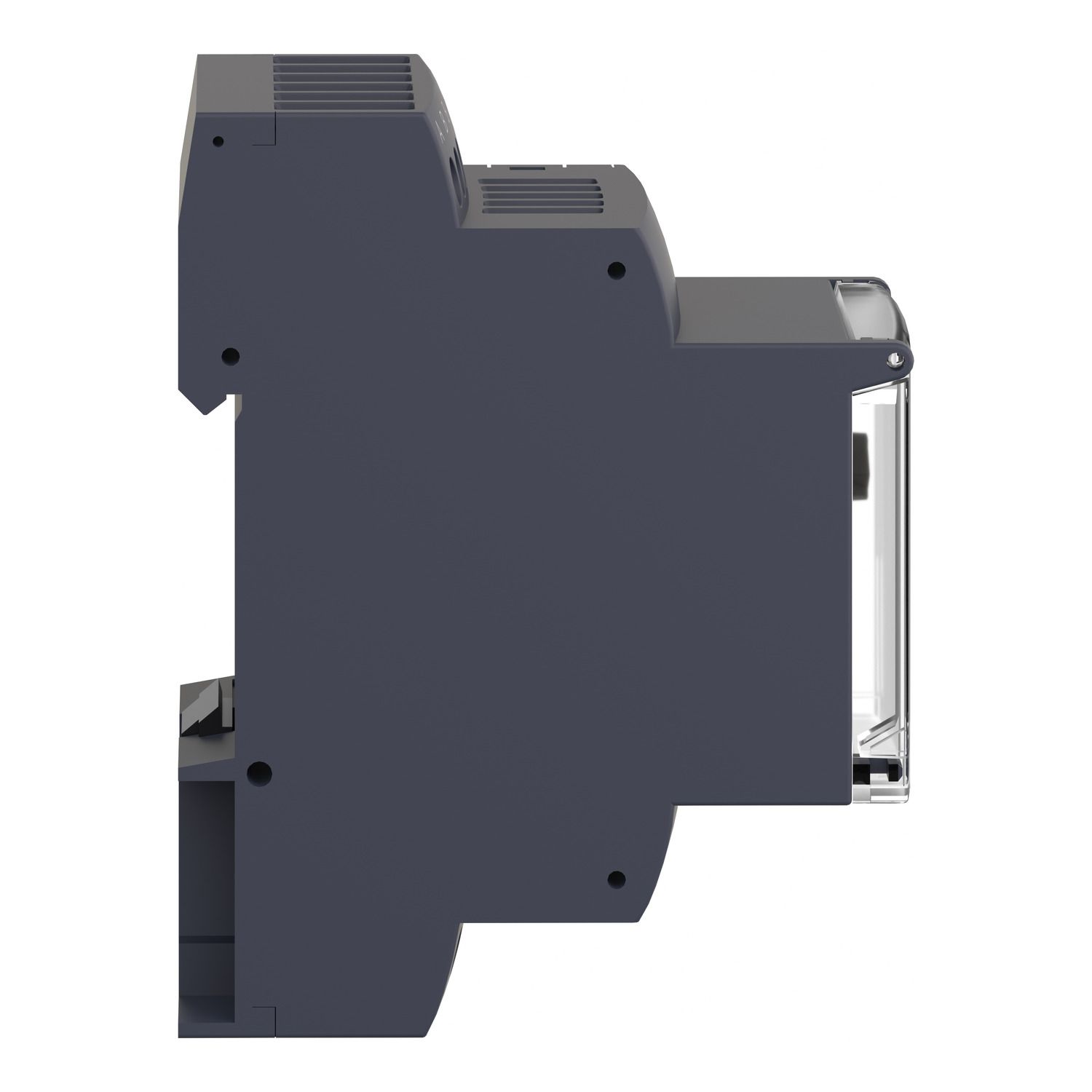

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

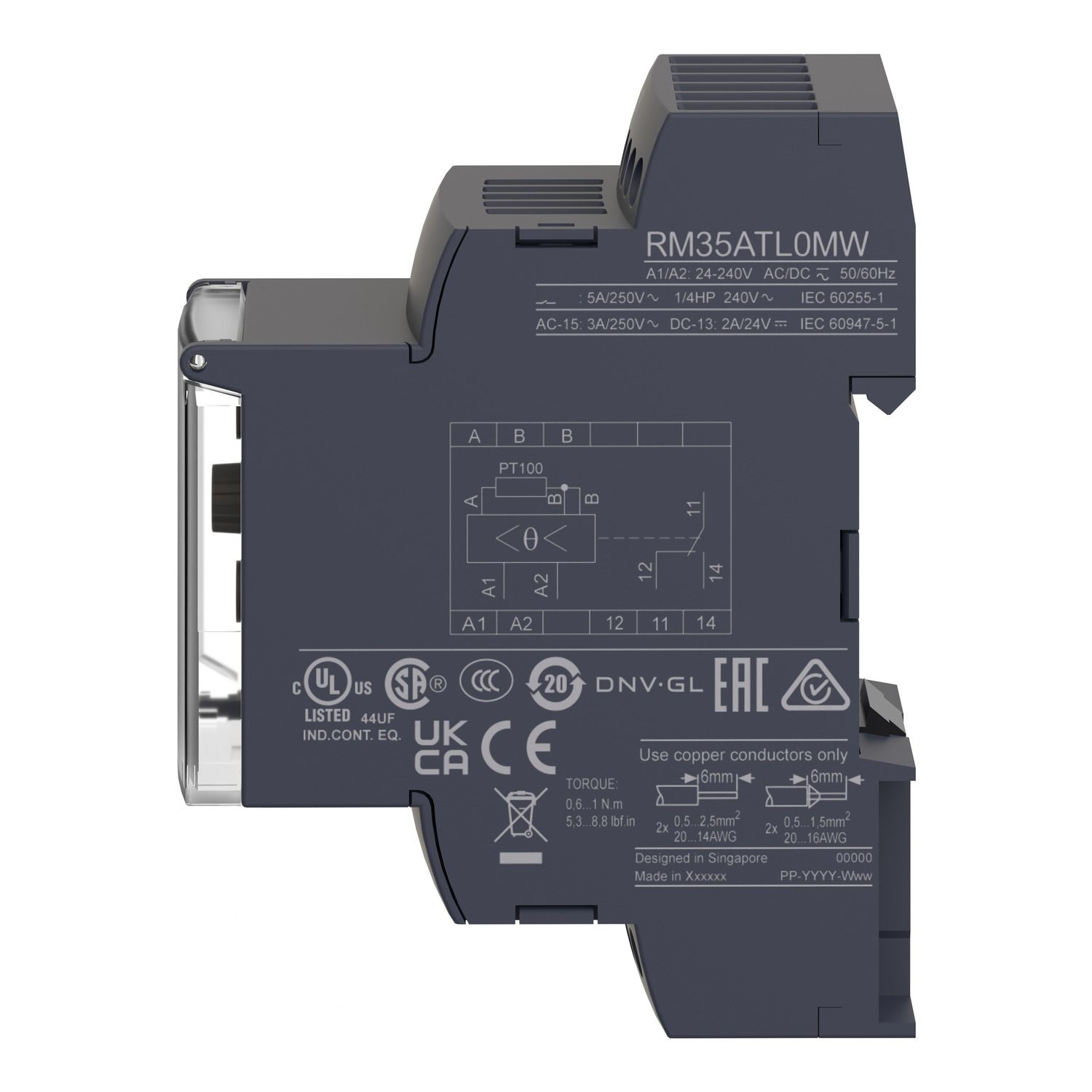

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

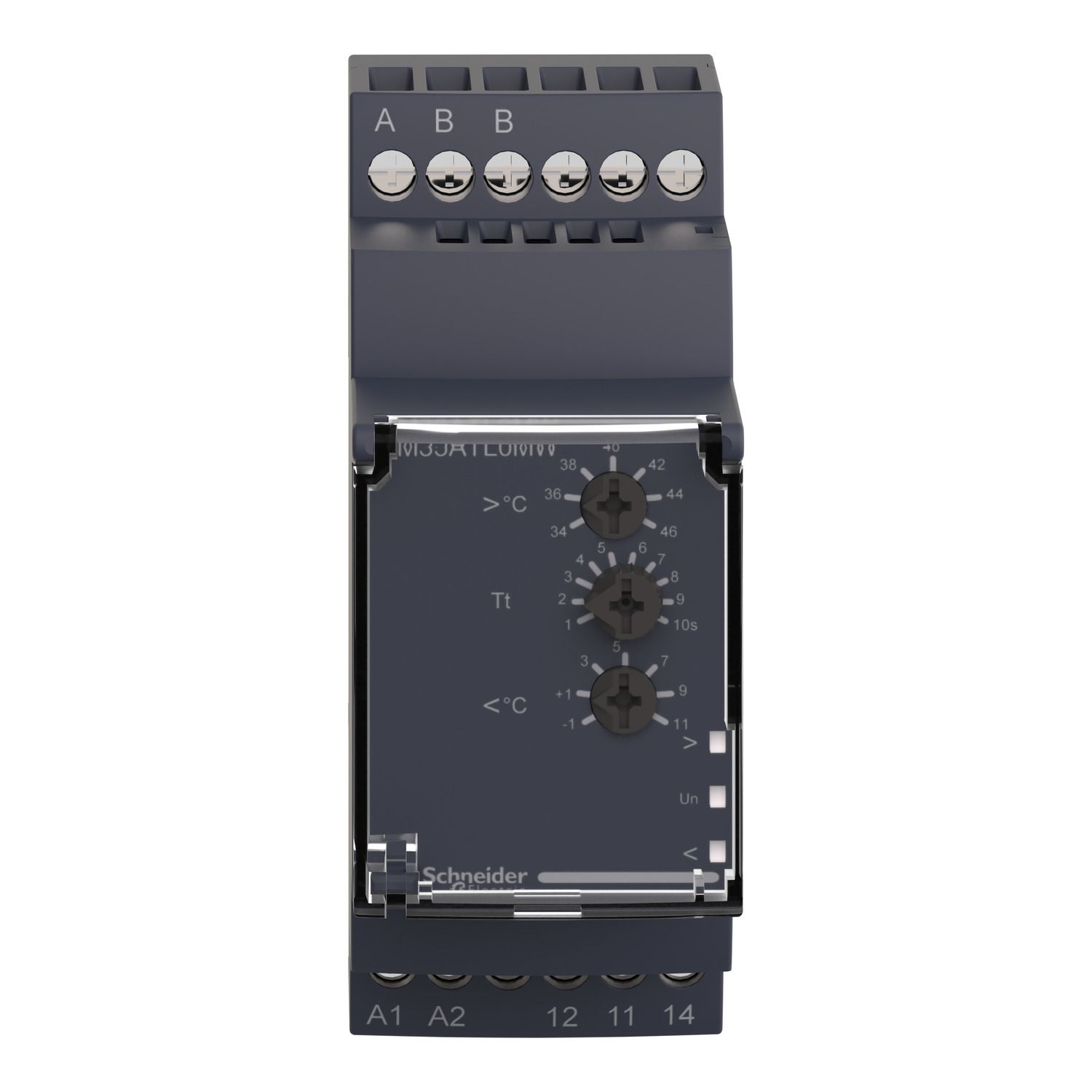

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

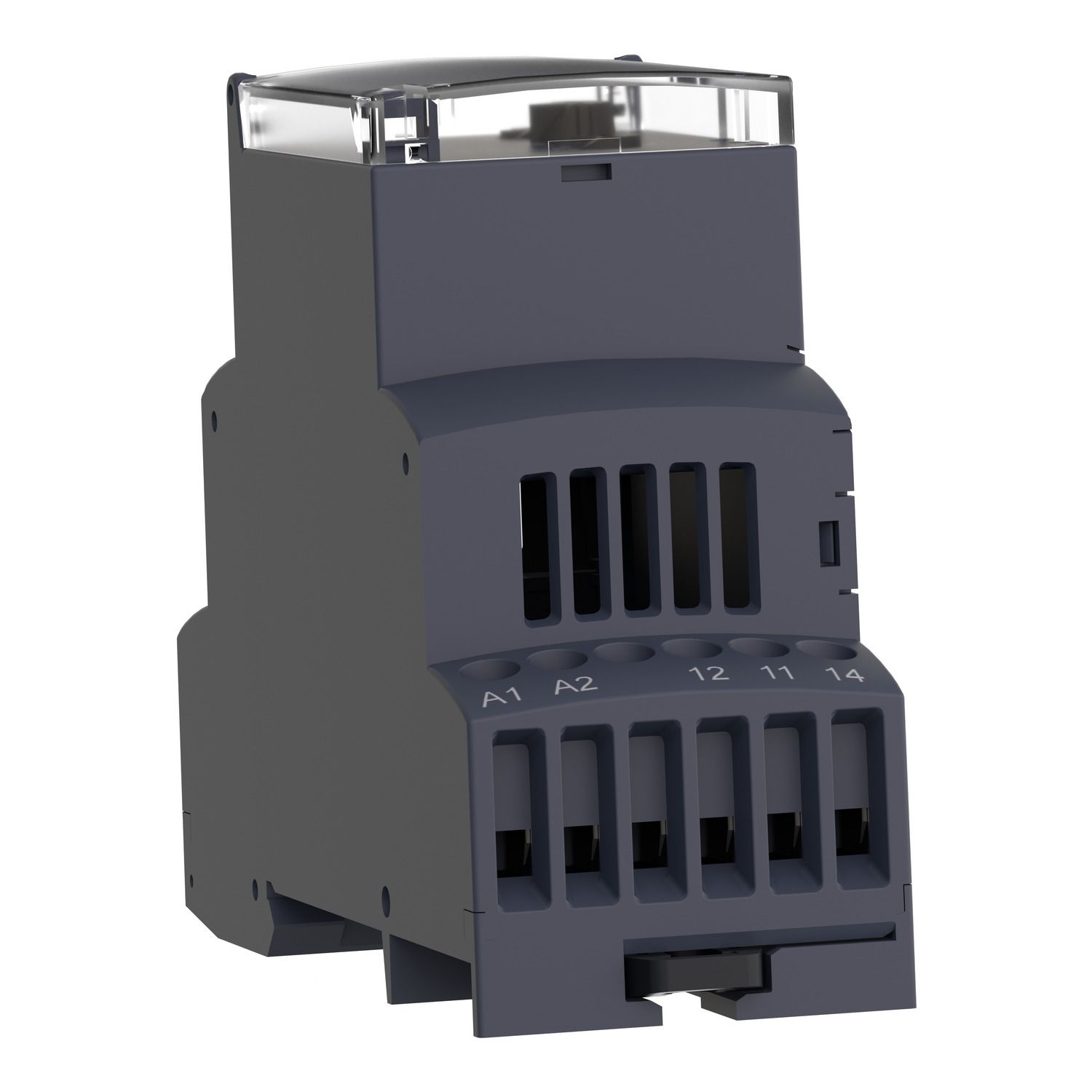

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

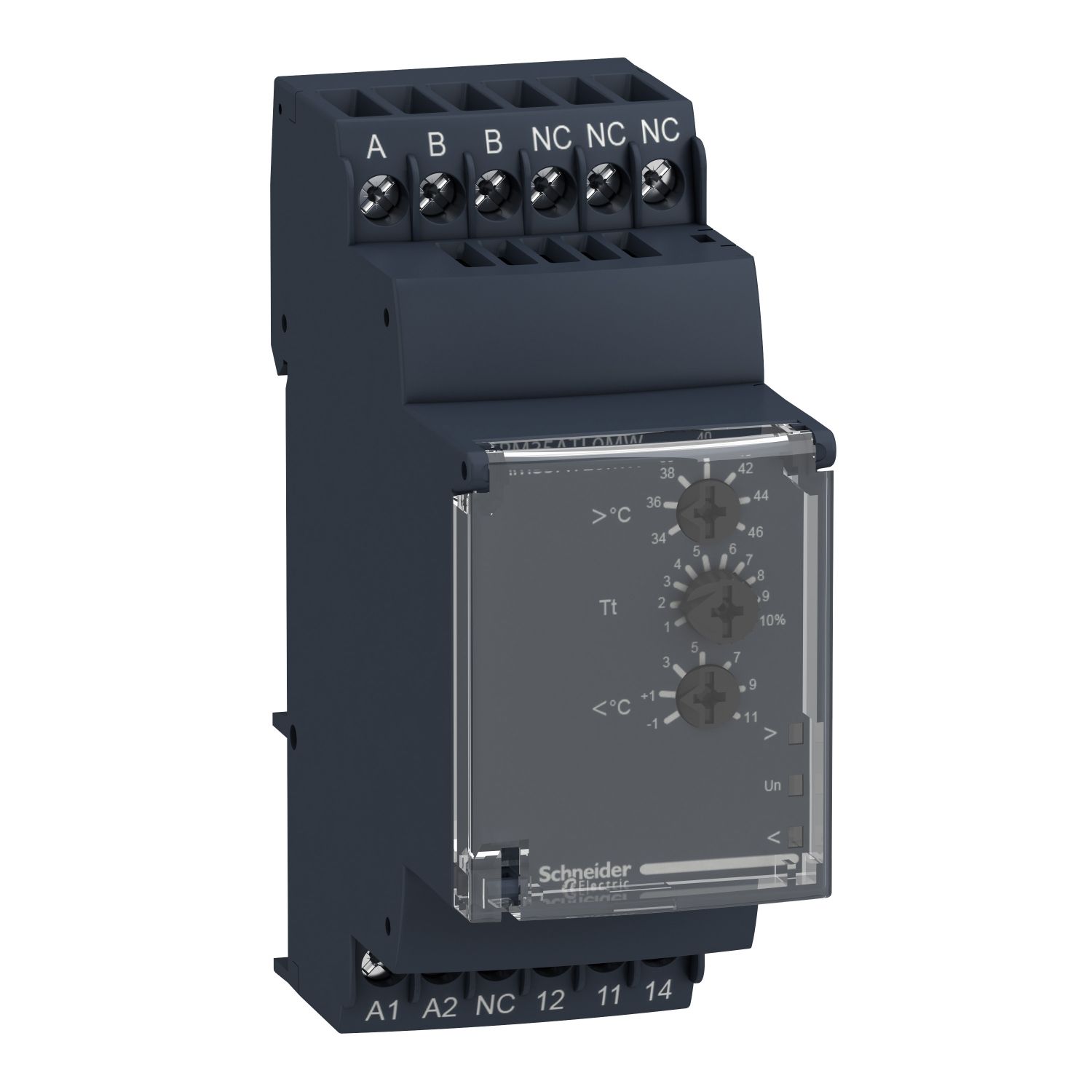

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

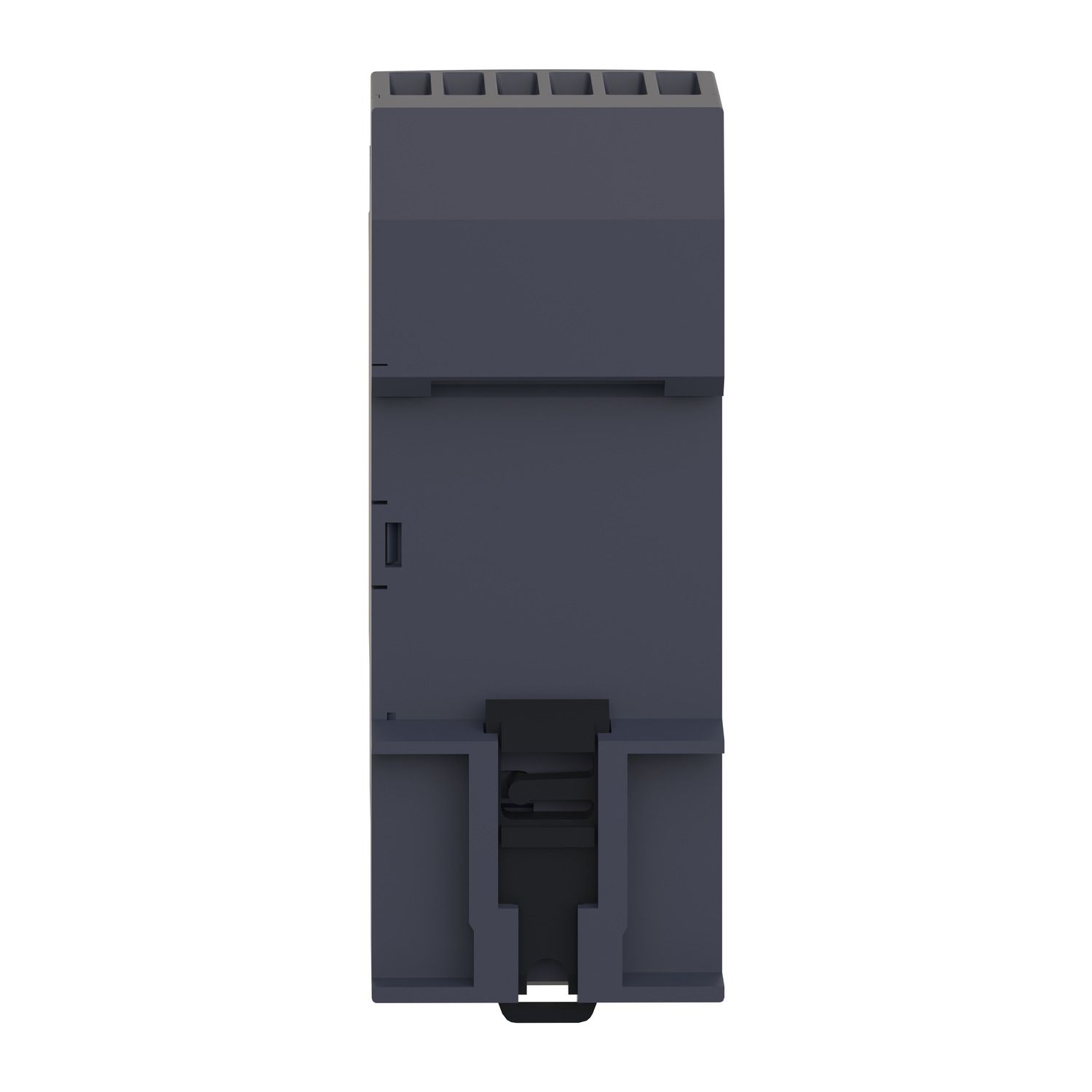

Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC
Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC
Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC
Picture of Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC
SKU:

RM35ATL0MW

Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC

Old price: $232.65 INC GST
$221.02 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Harmony Control Relays, Modular temperature control relay, 5A, 1CO, 24..240V ACDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Instruction sheet
Declaration of conformity
Environmental Disclosure
Circularity Profile

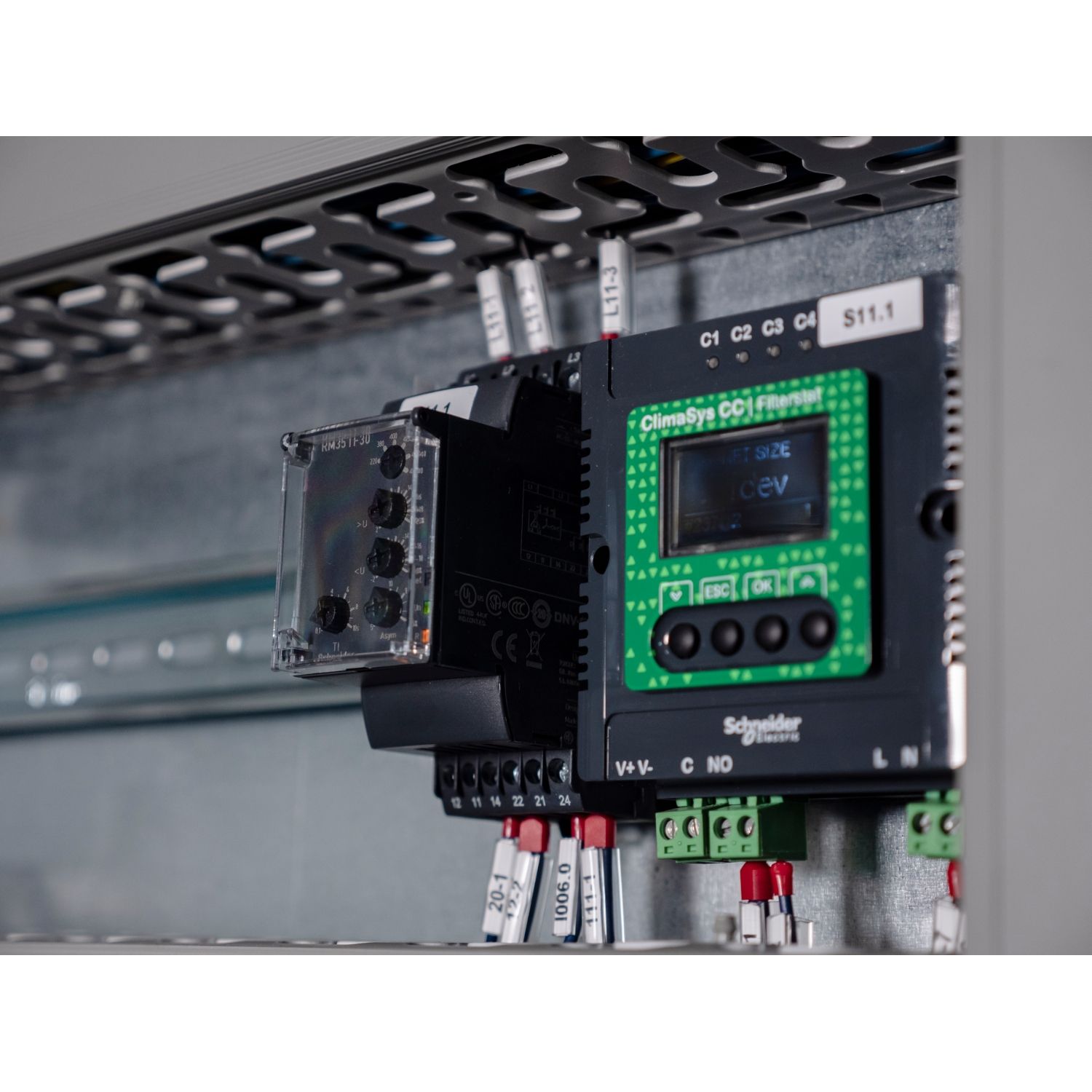

Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
"This Harmony RM35AT control relay allows monitoring of temperature control." "This modular control relay is ideal for monitoring of electrical values and temperature variation in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 24...240 V
Relay type temperature control relays
Time delay range 0.1...10 s adjustable delay (tolerance: 0...10 % of the full scale value)
Relay name RM35AT
Measurement range +/- 1...46 °C
Range of product Harmony Control Relays
Maximum power consumption in VA 3.5 VA AC
[In] rated current 5 A
Relay monitored parameters overtemperature: 34...46°C, undertemperature: -1...11°C
Time delay type adjustable 1...10 s Tt- time delay upon fault
Product specific application for elevator machine rooms and 3-phase supplies
Contacts type and composition 1 C/O
Utilisation category DC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component type elevator machine room temperature control relay
Switching capacity in VA 1250 VA
Connections - terminals screw connectors
Minimum switching current 10 mA at 5 V DC
Complementary
Supply frequency 50/60 Hz +/- 10 %
Run-up delay at power-up 0.2 s
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit voltage limits - 15 % + 10 % Un AC, - 10 % + 10 % Un DC
Resistance across terminals 1.33 kOhm at temperature
Compatibility code RM3
Mechanical durability 30000000 cycles
Supply voltage limits 21.6-264 V DC, 20.4-264 V AC
Insulation galvanic insulation between supply and measurement
Control type without test button
Marking CE : 73/23/EEC, CE : EMC 89/336/EEC
Installed device Pt 100 probe cable length <= 10 m
Contacts material cadmium free
Status LED 1 LED yellow for correct temperature (low R2), 1 LED yellow for correct temperature (high R1), 1 LED green for power ON
Insulation resistance > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
Temperature probe type Pt 100 - 3-wire
[Us] rated supply voltage 24...240 V AC/DC
Electrical durability 100000 cycles
Maximum power consumption in W 0.6 W DC
Width 35 mm
Measurement accuracy +/- 2 °C
Housing material self-extinguishing plastic
Nominal output current 5 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage category III conforming to IEC 60664-1
[Ui] rated insulation voltage 250 V conforming to IEC 60664-1
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Maximum switching voltage 250 V AC/DC
Operating position any position without derating
Response time <= 3.5 s (on disappearance of fault), <= 3.5 s + Tt (in case of temperature fault)
Reset time 8 s
Output contacts 1 C/O
Operating rate <= 360 operations/hour full load
Environment
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Electromagnetic compatibility immunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Immunity to microbreaks 10 ms
Ambient air temperature for operation -20-50 °C
Non-dissipating shock wave 4 kV
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
Shock resistance 15 gn for 11 ms conforming to IEC 60255-21-1
Dielectric test voltage 2 kV, 1 min AC 50 Hz
Standards NF EN 60255-6, IEC 60255-6
Product certifications CSA, UL, C-Tick, GL, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 4.6 cm
Package 1 Length 9.7 cm
Package 1 Weight 127.0 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.732 kg
