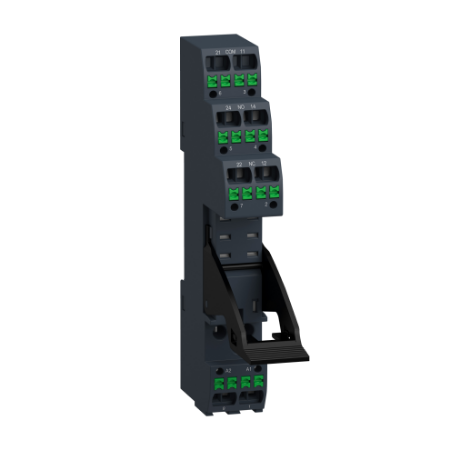

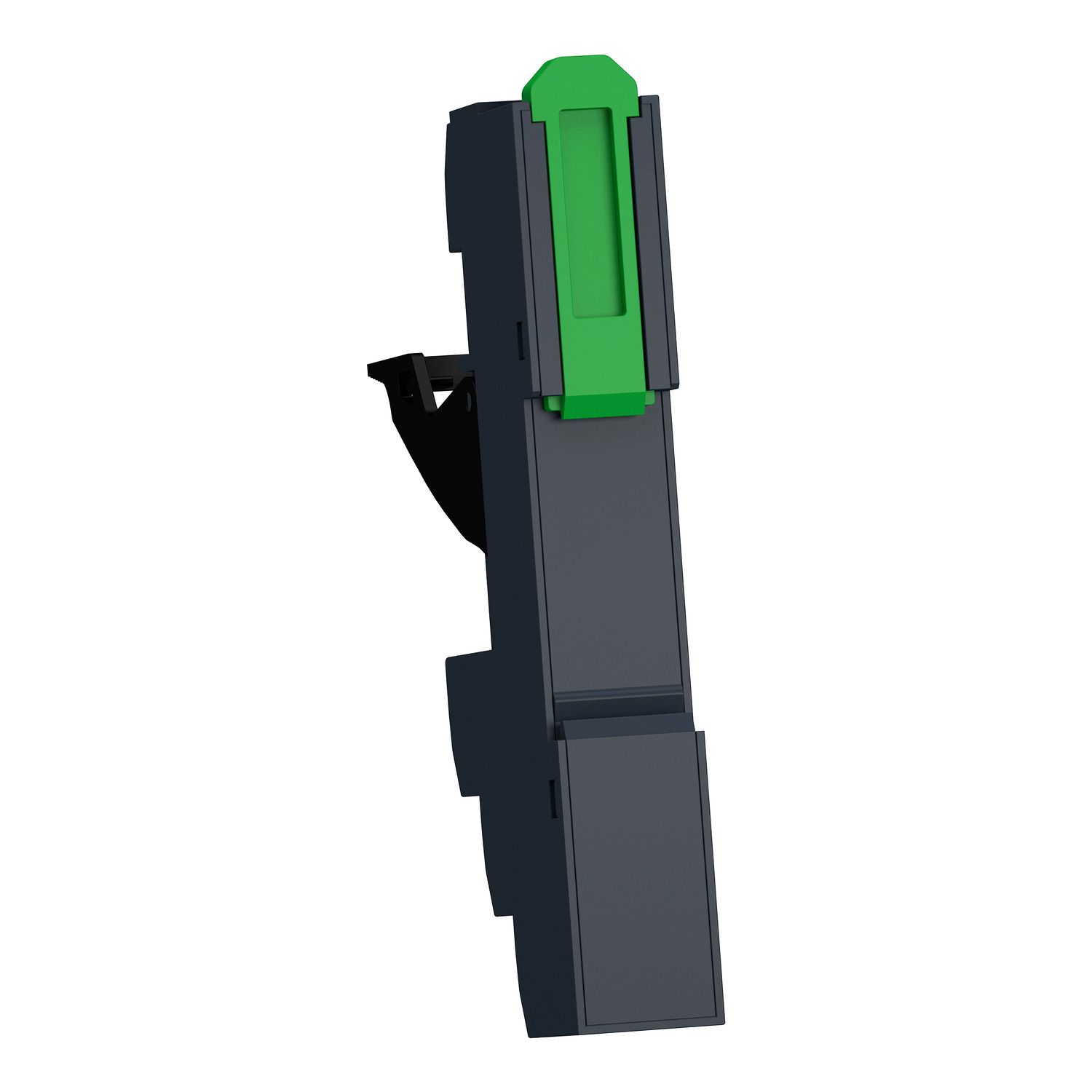

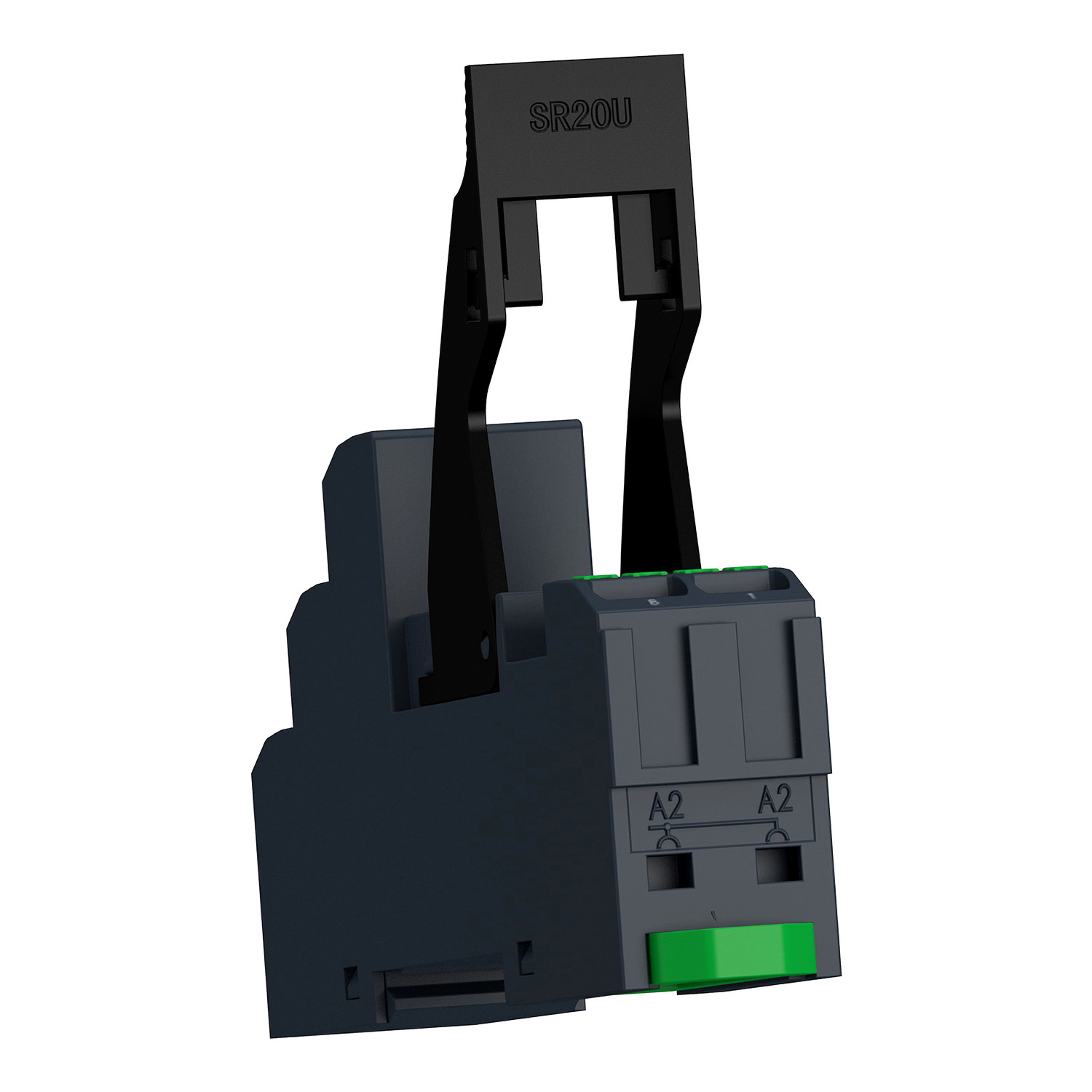

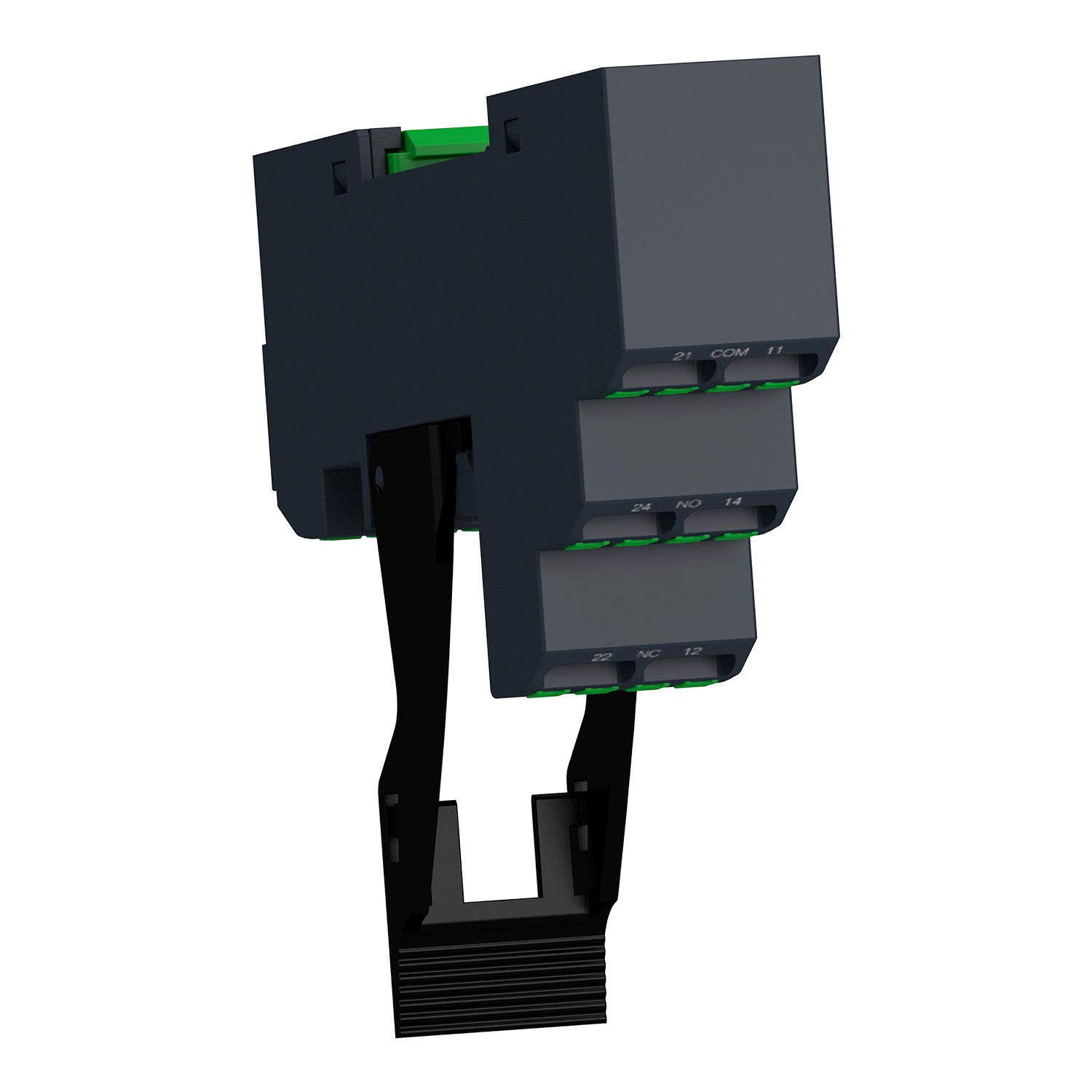

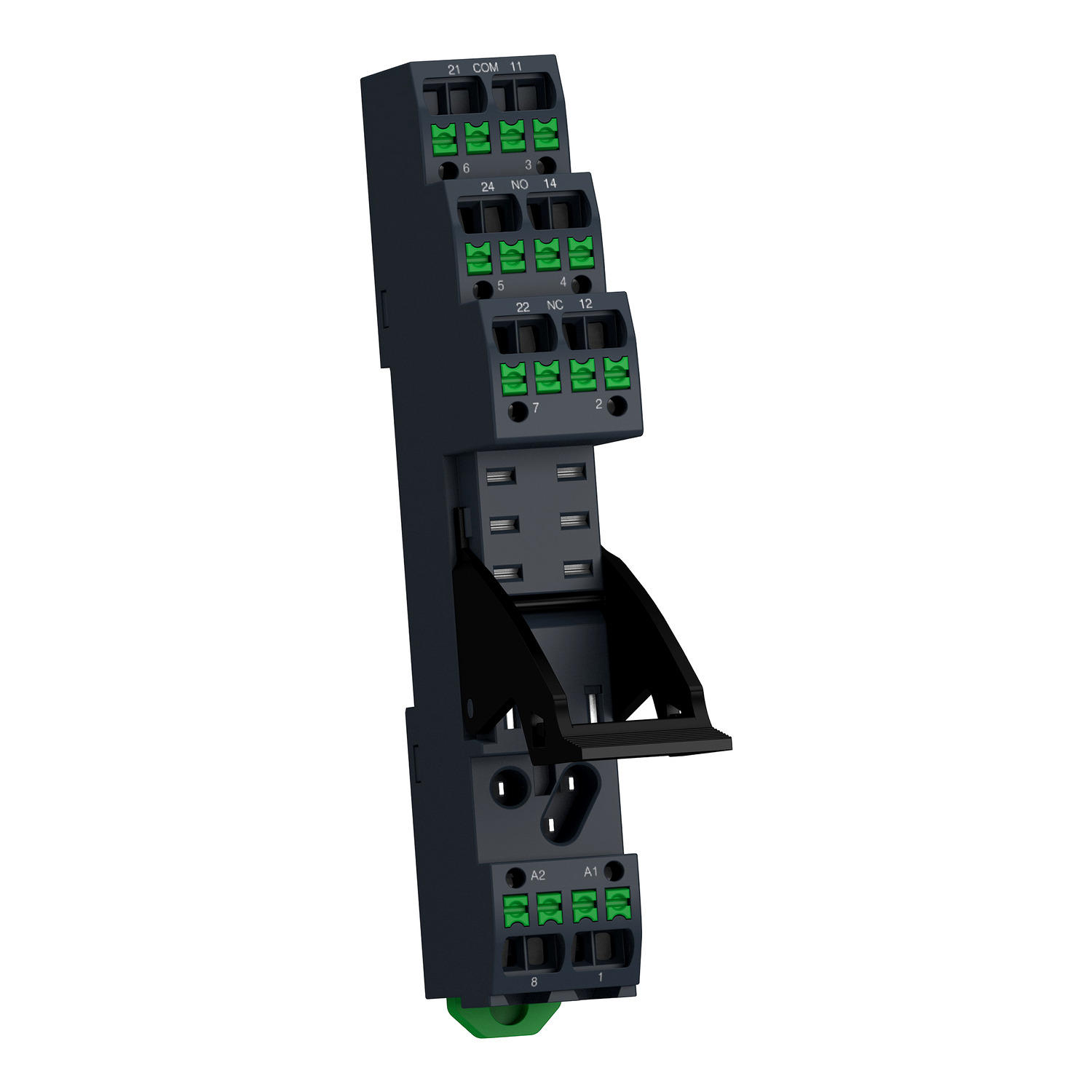

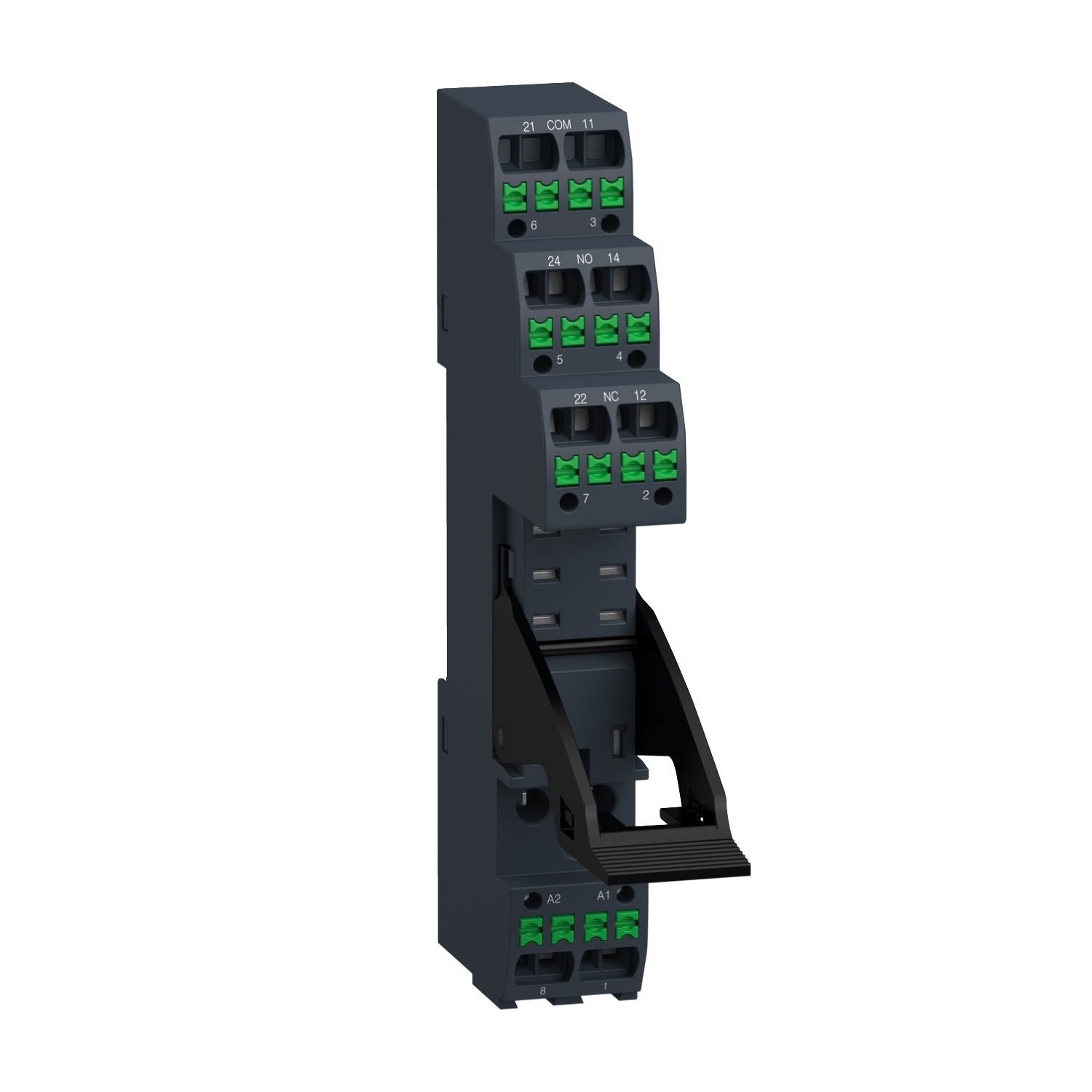

Picture of push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
Picture of push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
Picture of push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
Picture of push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
Picture of push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
Picture of push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
SKU:

RGZE08P

push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact

Old price: $15.62 INC GST
$14.84 INC GST
Available for Shipping : 04-Jan-2026
Product Selector
push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Catalog
Declaration of conformity
Image of product in real life situation
Environmental Disclosure
Product Page Link
Product Data Sheet
RGZ push-in relay socket is part of the Harmony Electromechanical relays range. This Harmony RGZ push-in relay socket has separate contact terminals. Its volatge is 5 A. It is compatible with all 2 C/O DPDT RXG relays. It also has a test button for easy debugging, testing and commissioning 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RGZ
Product compatibility plug-in relay RXG with 2 C/O contact
Range of product Harmony Electromechanical Relays
[In] rated current 5 A
Contacts type and composition 2 C/O
Product or component type socket
[Ui] rated insulation voltage 250 V
Complementary
[Uimp] rated impulse withstand voltage 4 kV between terminals and DIN rail with basic insulation, 4 kV between poles with basic insulation, 6 kV between coil and contact with reinforced insulation
Dielectric strength 3 kV between terminals and DIN rail with basic insulation, 3 kV between poles with basic insulation, 5 kV between coil and contact with reinforced insulation
Fixing mode clip-on (35 mm symmetrical DIN rail)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
Height 67 mm
Overvoltage category III
Width 16 mm
Connections - terminals spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals
Net weight 0.042 kg
Length 98 mm
[Ue] rated operational voltage 300 V conforming to UL, 250 V conforming to IEC
Environment
IP degree of protection IP20
Ambient air temperature for storage -40-85 °C
Marking CE
Ambient air temperature for operation -40-70 °C
Standards IEC 61984
Product certifications DNV-GL, EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.600 cm
Package 1 Width 6.700 cm
Package 1 Length 9.800 cm
Package 1 Weight 41.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.500 cm
Package 2 Width 10.500 cm
Package 2 Length 16.500 cm
Package 2 Weight 456.000 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.720 kg

Related products

connection accessories, Harmony Electromechanical Relays, bus jumper, 2 poles, for RXZ, RGZ, RSZ push in sockets

RSZS02
$1.37 INC GST $1.44 INC GST
