SKU:

RGZE05P

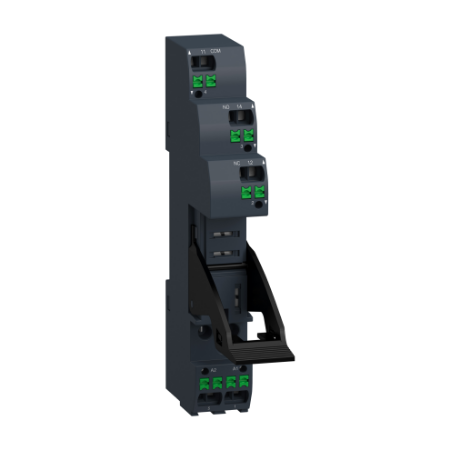

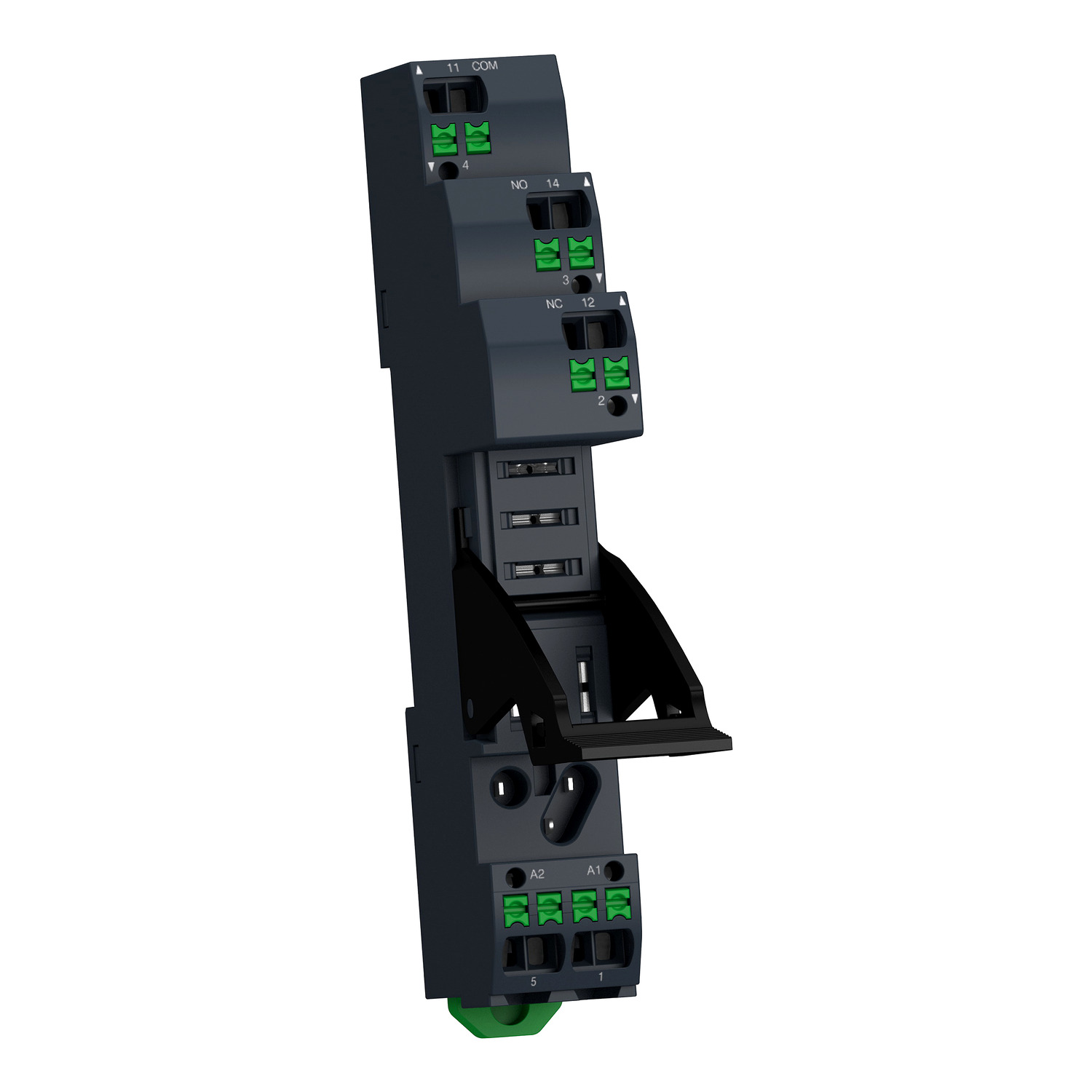

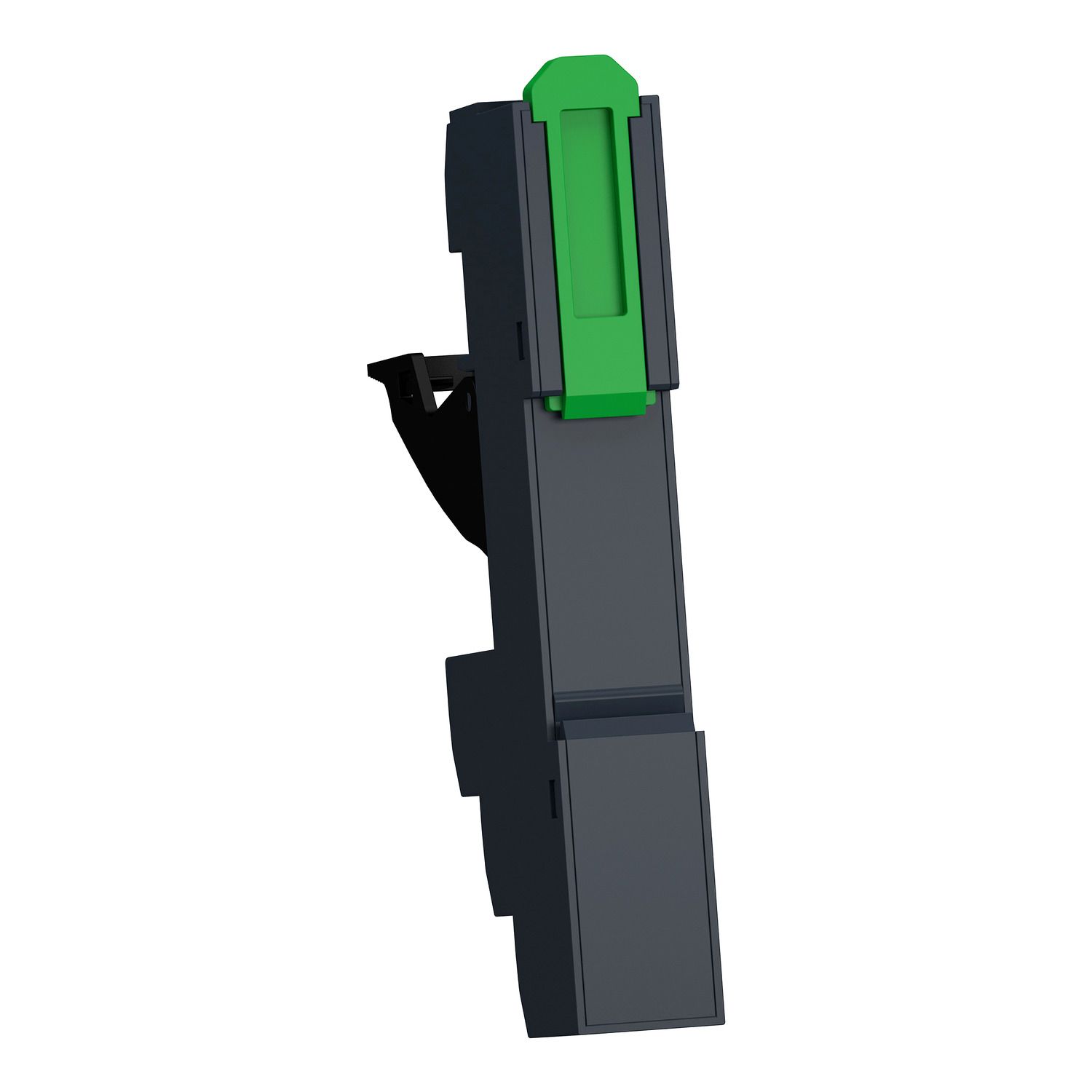

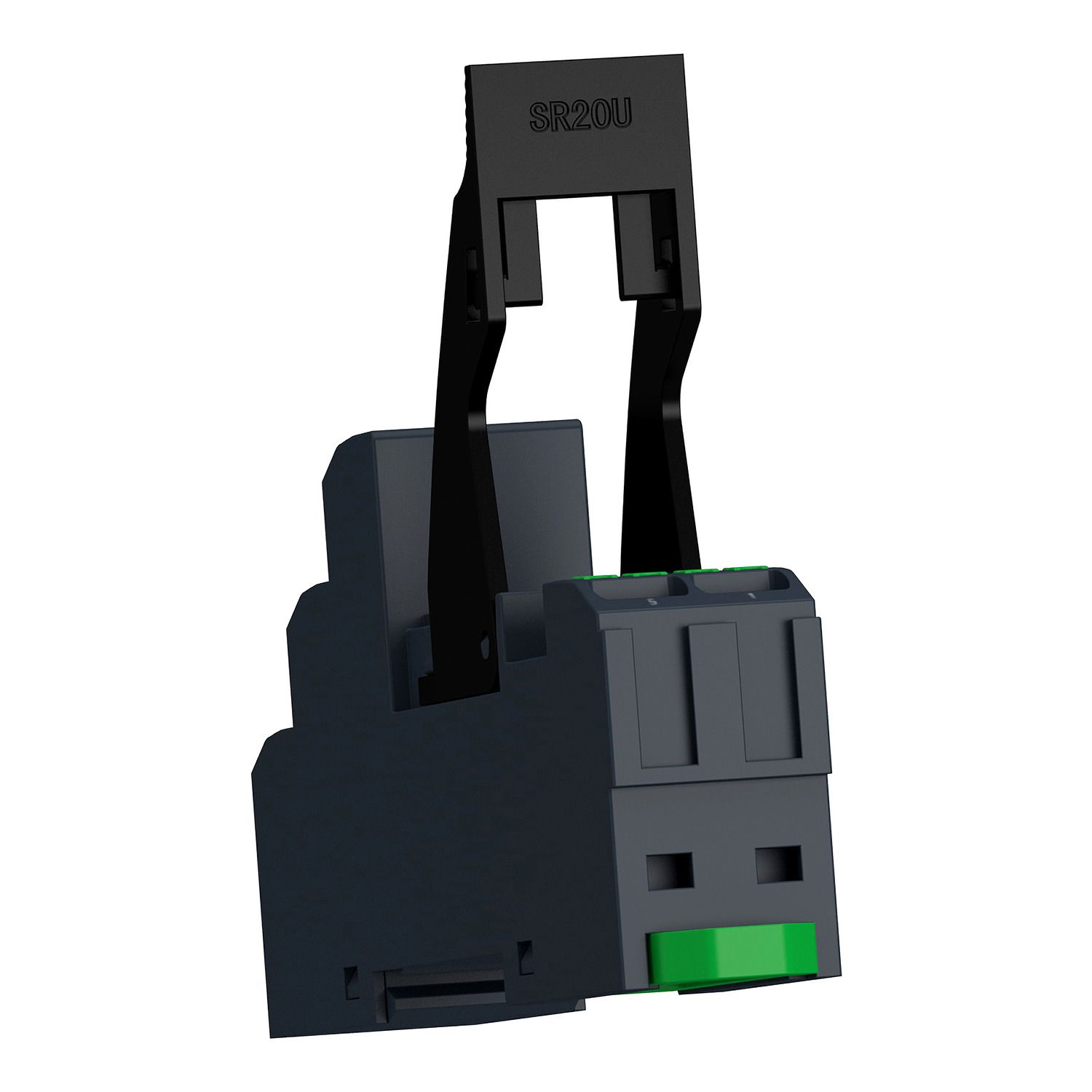

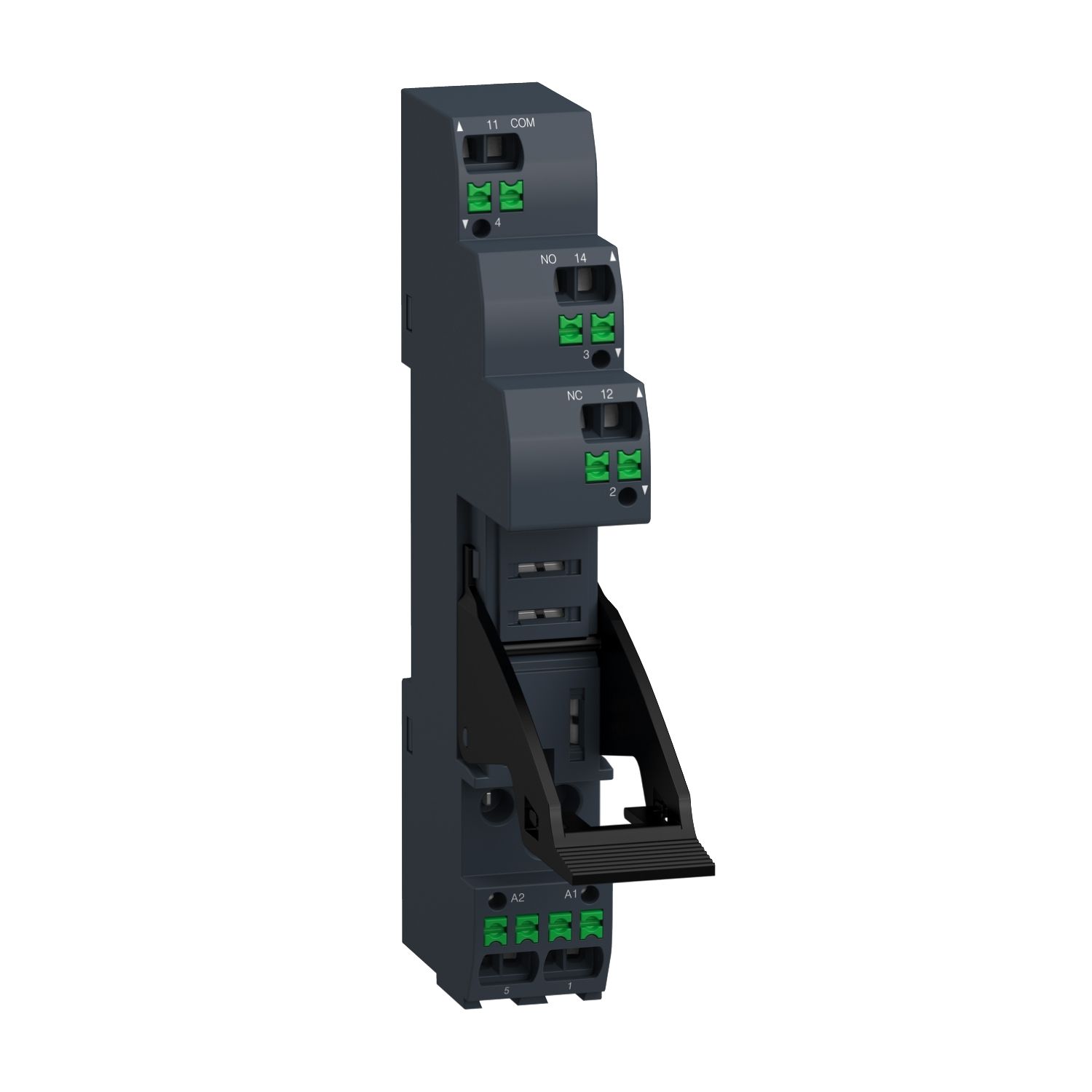

push in socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, push in terminals, separate contact

Old price: $11.33 INC GST
$10.76 INC GST
Available for Shipping : 04-Jan-2026
Product Selector
push in socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, push in terminals, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Catalog
Declaration of conformity
Image of product in real life situation
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony RGZ range is a timing relay socket with a mixed contact terminals. It enables quick and easy plug-in installation of relays without the need for tools It is compatible with all 1 C/O RXG relays and its voltage is 10A. Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime. It is a green premium product and conforms to international standard and certifications.

Products specifications

Attribute name Attribute value
Main
Device short name RGZ
[In] rated current 10 A
Product compatibility plug-in relay RXG with 1 C/O contact
Contacts type and composition 1 C/O
Product or component type socket
[Ui] rated insulation voltage 250 V
Range of product Harmony Electromechanical Relays
Complementary
Overvoltage category III
[Uimp] rated impulse withstand voltage 4 kV between terminals and DIN rail with basic insulation, 6 kV between coil and contact with reinforced insulation
Width 16 mm
Dielectric strength 3 kV between terminals and DIN rail with basic insulation, 5 kV between coil and contact with reinforced insulation
Connections - terminals spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals
Fixing mode clip-on (35 mm symmetrical DIN rail)
Net weight 0.039 kg
Contact terminal arrangement separate
Length 98 mm
Shape of pin flat
Pollution degree 3
[Ue] rated operational voltage 300 V conforming to UL, 250 V conforming to IEC
Height 67 mm
Environment
IP degree of protection IP20
Ambient air temperature for storage -40-85 °C
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-70 °C
Product certifications DNV-GL, EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.600 cm
Package 1 Width 6.600 cm
Package 1 Length 9.900 cm
Package 1 Weight 36.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.700 cm
Package 2 Width 10.700 cm
Package 2 Length 16.700 cm
Package 2 Weight 410.000 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.116 kg
Unit Type of Package 4 4
Number of Units in Package 4 1280
Package 4 Height 73.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 67.823 kg
