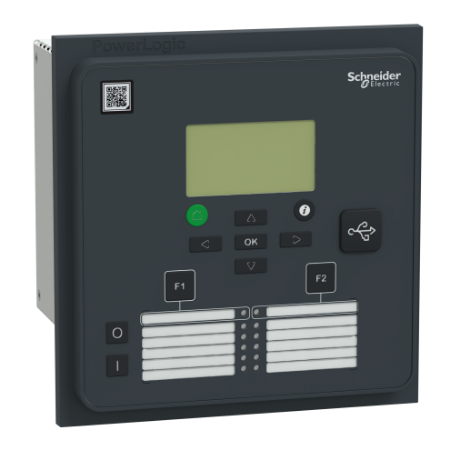

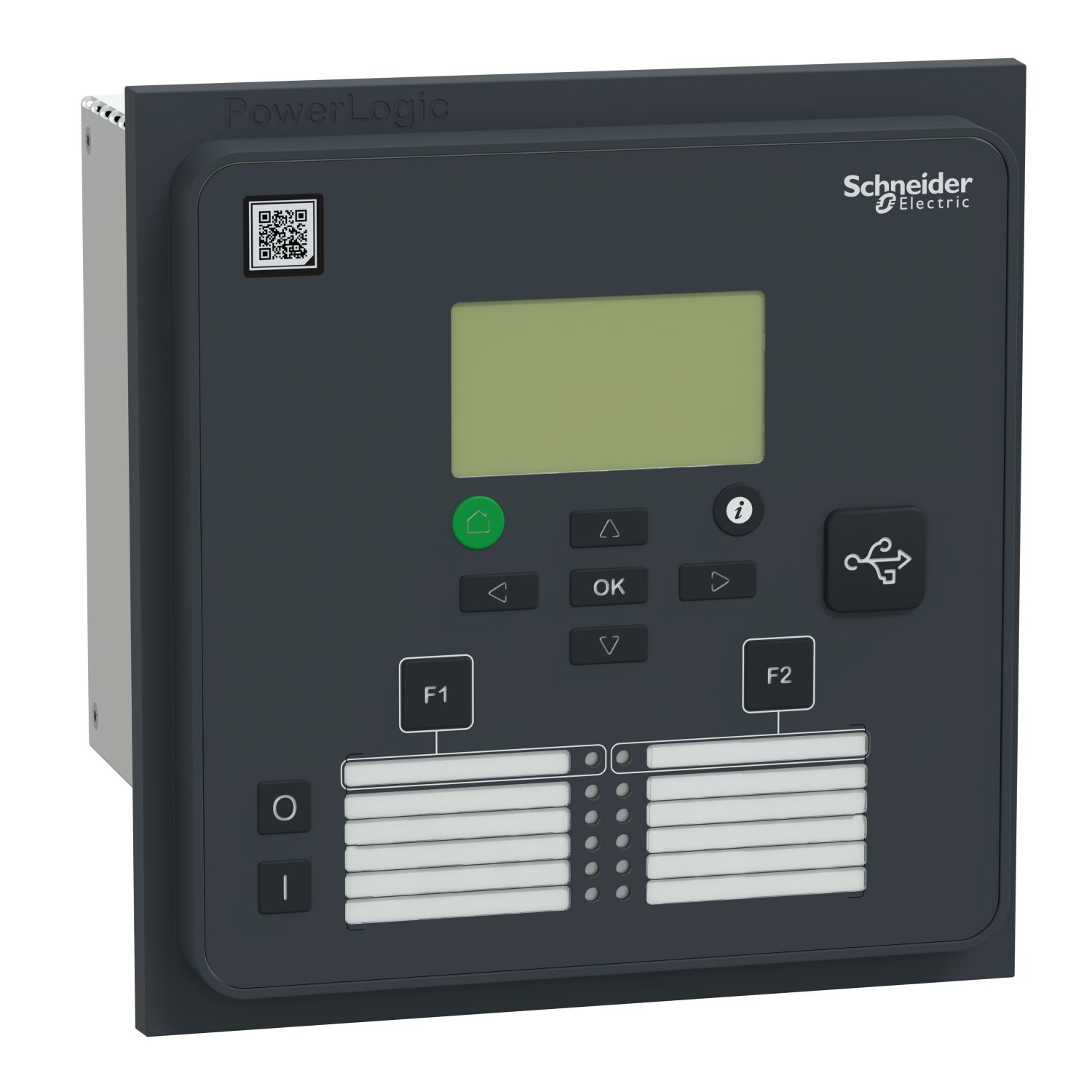

Picture of REL52019 discontinued. To order it, click on blue Product Selector button, configure P3U30, and use its output xml file
SKU:

REL52019

REL52019 discontinued. To order it, click on blue Product Selector button, configure P3U30, and use its output xml file

Old price: $7,058.34 INC GST
$6,352.51 INC GST
Availability: Please contact our sales team on 1300 724 622.
REL52019 discontinued. To order it, click on blue Product Selector button, configure P3U30, and use its output xml file
  • Perfectly suited for buildings and industry, utilities, and large industrial processes.
  • Simple, reliable, safe and easy-to-use, thanks to the User Interface display
  • The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network
  • It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Environmental Disclosure
Brochure
User guide
Catalog
Product Page Link
Product Data Sheet
Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, a 1 LC and RS232 communication port and a USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 48...230 V AC/DC
Device short name P3U30-5AAA1BFAA
Type of measurement condition monitoring CB wear, voltage interruption, voltage 2nd, 15th harmonics with THD, current 2nd, 15th harmonics with THD, current phasor diagram view, voltage phasor diagram view, power factor, power angle, tan φ, cos φ, reactive energy, active energy, RMS apparent power, apparent power, RMS reactive power, reactive power, RMS active power, active power, frequency, earth fault reactance, fault location current, short circuit fault reactance, voltage ratio of negative and positive, voltage negative sequence, voltage positive sequence, voltage zero sequence, voltage phase to phase, voltage phase to earth, current ratio of negative and positive, current negative sequence, current positive sequence, current zero sequence, current 3-phase
Arc flash protection no
Switchgear diagnosis type trip circuit supervision ANSI code: TCS, CT supervision, CT/VT supervision ANSI code: 60
Cybersecurity password protection, port hardening
Integrated connection type RS232 1 rear, LC 1 rear, USB port 1 front
Setting 4
Digital input number 16
Control type programmable logic, web-server, mobile application with Easergy SmartApp, 2 function keys, local/remote control, local control with I/O keys, local control on single-line diagram, programmable switchgear interlocking, switchgear control and monitoring
Monitoring function relay self-monitoring, circuit breaker monitoring, trip circuit supervision 74
Single line diagram 4 controlled + 8 displayed
Product or component type protection relay
Communication port protocol SPAbus, Profibus DP, Modbus TCP master, EtherNet/IP, Modbus TCP, Modbus RTU, DNP3 TCP, DNP3, IEC 60870-5-103, IEC 60870-5-101, IEC 61850 ed. 2, IEC 61850 ed. 1
Relay application universal
Protection type programmable curve, programmable stages 99, H5 detection 68H5, H5 detection, H2 detection 68H2, VT supervision 60, CT supervision 60, lockout relay 86, synchro-check 25, rate of change of frequency 81R, underfrequency 81/81N, earth fault overvoltage 59N, positive sequence undervoltage 27P, undervoltage 27, overvoltage 59, negative sequence overcurrent 46, capacitor overvoltage 59C, motor restart inhibition 66, excessive starting time, locked rotor 48/51LR, phase undercurrent 37, recloser 79, fault locator 21FL, directional active underpower 37P, breaker failure 50BF, switch ON to fault (SOTF), cold load pick-up, broken conductor 46 I2/I1, capacitor bank unbalance 51C, transient earth fault 67NI, directional earth fault 67N, earth fault overcurrent 50N/51N, directional phase overcurrent 67, phase overcurrent 50/51
Number of outputs 8, 1 watchdog
Transmission support medium fiber optic cable external module, copper cable external module
Network and machine diagnosis type tripping context, disturbance recording, event recording
Connections - terminals pin removable (voltage transformer), pin removable (current transformer), screw removable (digital input/output)
Range of product Easergy P3
Input type : 100 V/110 V VT voltage 4 ,  : 1/5 A CT residual current 1 ,  : 1/5 A CT phase current 3
Analogue output number 0
Complementary
Web server embedded HTTP server
Software name eSetup Easergy Pro, EcoStruxure Power Device
Net weight 2.5 kg maximum
Display type LCD 128 x 64 pixels with single line diagram
Height 169.5 mm
Width 170 mm
Time synchronisation protocol SNTP, IRIG-B
Operating threshold 24...230 V AC/DC
Depth 205 mm
Local signalling 8 LEDs programmable, 4 LEDs
Standards IEC
Number of key 2 customizable
Environment
Operating altitude 2000 m
Protective treatment conformal coating
Relative humidity 0-95 %, without condensation
Electromagnetic compatibility EMC immunity conforming to EN/IEC 61000-4-17, EMC immunity conforming to EN/IEC 61000-4-11, EMC immunity conforming to EN/IEC 61000-4-29, EMC immunity level 5 conforming to EN/IEC 61000-4-9, EMC immunity conforming to EN/IEC 61000-4-8, EMC immunity level 3 conforming to EN/IEC 61000-4-6, EMC immunity level 3 conforming to EN/IEC 61000-4-5, EMC immunity level 4 conforming to EN/IEC 61000-4-4, EMC immunity level 3 conforming to EN/IEC 61000-4-3, EMC immunity level 4 conforming to EN/IEC 61000-4-2, EMC immunity conforming to EN/IEC 61000-4-18, EMC immunity conforming to IEC/EN 60255-26 ed. 3, emission tests class A conforming to CISPR 22, emission tests class A conforming to CISPR 11, emission tests conforming to IEC/EN 60255-26 ed. 3
Environmental characteristic exposure to damp heat in service Cab tests conforming to EN/IEC 60068-2-78, exposure to damp heat in service Db tests conforming to EN/IEC 60068-2-30, exposure to cold Ad tests conforming to EN/IEC 60068-2-1, exposure to dry heat Bb tests conforming to EN/IEC 60068-2-2
Ambient air temperature for operation -40-65 °C
Mechanical robustness bumps: Ea conforming to IEC 60068-2-27, bumps (level: class II) conforming to IEC 60255-21-2, seismic tests method A (level: class II) conforming to IEC 60255-21-3, shocks: Ea conforming to IEC 60068-2-27, shocks (level: class II) conforming to IEC 60255-21-2, vibrations: Fc conforming to IEC 60068-2-6, vibrations (level: class II) conforming to IEC 60255-21-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.5 cm
Package 1 Width 26 cm
Package 1 Length 31.5 cm
Package 1 Weight 3.19 kg
