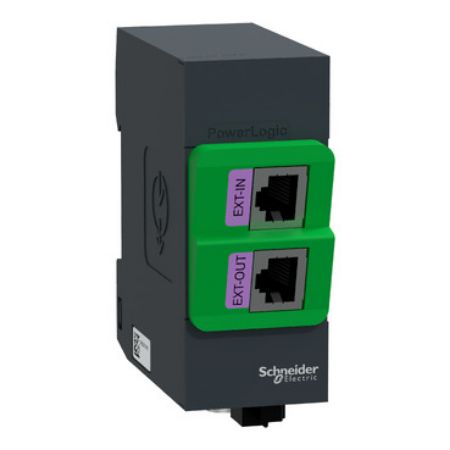

Picture of IRIG-B time synchronization module - accessory for PowerLogic P5
SKU:

REL51045

IRIG-B time synchronization module - accessory for PowerLogic P5

Old price: $1,705.00 INC GST
$1,534.50 INC GST
Available for Shipping : 12-Jan-2026
IRIG-B time synchronization module - accessory for PowerLogic P5
  • Enables IRIG-B time syncronisation for PowerLogic P5
  • Modulated and demodulated input
  • Doesn't need auxiliary power supply
  • Available from centralised stock
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Instruction sheet
User guide
Catalog
Product Page Link
Product Data Sheet
External IRIG-B module for Schneider Electric's Easergy P5 withdrawable protective relay. This module can be used to ensure accurate time syncronization of Easergy P5. It can be connected to Easergy P5 any time: during installation, commissioning or even during maintenance. The module provides modulated and unmodulated input and detects automatically which one is used. This external module offers modulated IRIG to B input with BNC socket and inputs signal level from 200 mV to 20V. It offers as well demodulated IRIG-B with screw-type terminals and TTL inputs signal. This module does not require auxiliary power supply. It is powered by Easergy P5. The product dimensions are 96 mm in height (3.78 in), 36 mm in width (1.42 in) and 78 mm in depth 3.07 in) for a net weight of 100 g (0.220 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be installed on symmetrical DIN rail. Connection cords (59660, 59661, 59662).

Products specifications

Attribute name Attribute value
Main
Product or component type communication module
Accessory / separate part category modules and interfaces
Range of product PowerLogic P5
Environment
Depth 78 mm
Width 36 mm
Net weight 0.1 kg
Ambient air temperature for operation -40-70 °C
Height 96 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 8.500 cm
Package 1 Length 10.500 cm
Package 1 Weight 122.300 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.300 kg
