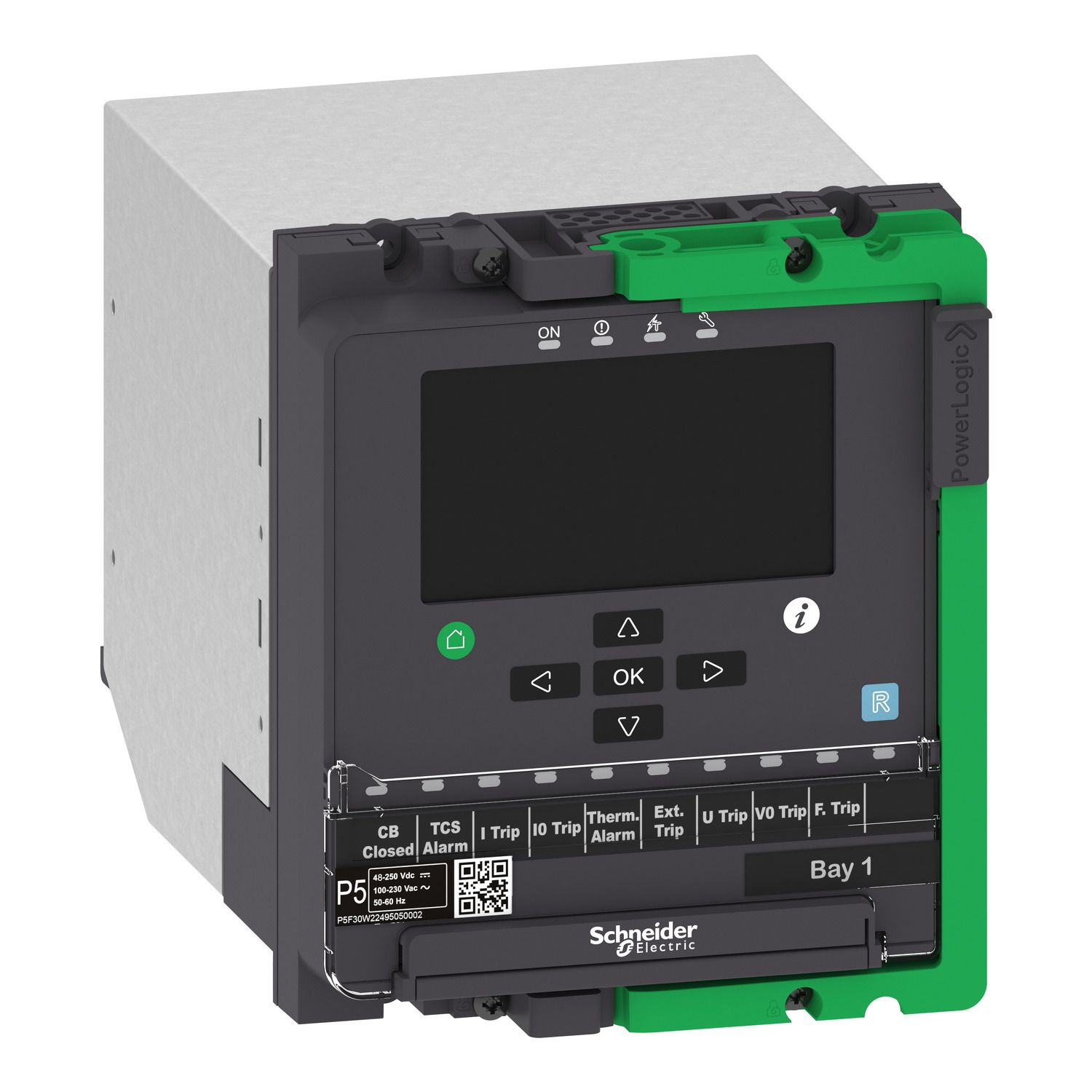

Picture of PowerLogic P5F30 48-250V 3CT 2Io 4VT 10DI-8DO
SKU:

REL50401

PowerLogic P5F30 48-250V 3CT 2Io 4VT 10DI-8DO

$9,780.00
Available for Shipping : 16-Dec-2024
PowerLogic P5F30 48-250V 3CT 2Io 4VT 10DI-8DO
  • Withdrawable design for quicker maintenance
  • Expandable with plug & play communication modules
  • Easy to configure with intuitive, free-of-charge software
  • Easy to test with virtual injection functionality
  • Easy to use for panel builders, system integrators and end users
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
Catalogue
Instruction sheet
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
The Easergy P5 is Schneider Electric's withdrawable protective relay for demanding medium voltage distribution applications. This feeder relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. Easergy P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The Easergy P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 48 to 250 VDC and 100 to 230 VAC. It works with conventional CTs/VTs. 3 phase current inputs, 1 standard neutral current input, 1 sensitive neutral current input and 4 voltage inputs. It offers 10 digital inputs and 8 digital outputs and no communications. Communication modules can be added any time. The product dimensions are 180 mm in height (7.09 in), 152,4 mm in width (6.00 in) and 224 mm in depth 8.82 in) for a net weight of 3.5 kg (7.7 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug & play communication modules: Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also 2nd Ethernet RSTP RJ45 (REL51042), RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51052), 8 temperature sensor module (59641), IRIG-B module (REL51045). Connection cords (59660, 59661, 59662). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 100...230 V AC, 48...250 V DC
Device short name P5F30-AACB-GAAAA-AAEA
Type of measurement frequency, voltage negative sequence, voltage positive sequence, voltage zero sequence, voltage residual, voltage 3-phase, current 2nd, 15th harmonics with THD, phasor diagram of currents or voltages, current ratio of negative and positive, current negative sequence, current positive sequence, current zero sequence, current 3-phase
Switchgear diagnosis type trip circuit supervision ANSI code: 74, CT/VT supervision ANSI code: 60
Number of sensors 0 arc sensor(s) , 0 temperature sensor(s)
Cybersecurity IEC 62442-4-2 SL1, RADIUS based user authentication, LDAP, security log, role-based access control, security policy management, secured communication with assciated tools, client IP address filter, firmware signature, port hardening
Integrated connection type USB port 2 front
Setting 4
Digital input number 10
Control type local/remote control, programmable switchgear interlocking, switchgear control and monitoring
Mounting mode withdrawable
Analogue input number 0
Monitoring function relay self-monitoring, circuit breaker monitoring, trip circuit supervision 74
Mounting case size 30TE
Single line diagram 6 controlled + 2 monitored objects
Product or component type protection and control relay
Communication port protocol -
Relay application feeder - directional over current
Protection type programmable curve, programmable logic, programmable stages 99, VT supervision 60, CT supervision 60, lockout relay 86, synchro-check 25, rate of change of frequency 81R, underfrequency 81/81N, earth fault overvoltage 59N, undervoltage 27, overvoltage 59, negative sequence overcurrent 46, recloser 79, fault locator 21FL, directional active underpower 37P, breaker failure 50BF, H5 detection, H2 detection, switch ON to fault (SOTF), cold load pick-up, current unbalance 46 I2/I1, broken conductor 46 I2/I1, capacitor bank unbalance 51C, earth fault wattmetric 32N, neutral admittance 21YN, transient earth fault 67NI, directional earth fault 67N, restricted earth fault 64REF, earth fault overcurrent 50N/51N, directional phase overcurrent 67, phase overcurrent 50/51
Number of outputs 1 watchdog, 7 DO
Device mounting flush
Network and machine diagnosis type relay maintenance, tripping context, disturbance recording, event recording
Connections - terminals ring lugs (analog inputs and outputs), screw (digital input/output)
Range of product PowerLogic P5
Input type : VT voltage 4 ,  : 1 A CT residual current 1 ,  : 1/5 A CT residual current 1 ,  : 1/5 A CT phase current 3
Analogue output number 0
Complementary
Software name eSetup Easergy Pro: virtual simulation test
Net weight 3.5 kg
Display type colour LCD 480 x 272 pixels
Height 176 mm
Width 152 mm
Depth 219 mm
Local signalling 10 x LED tri-colour programmable, 4 x LED
Number of key 7 customizable
Environment
Operating altitude 2000 m
Protective treatment conformal coating conforming to IEC 60721-3-3:3C2, conformal coating conforming to IEC 60068-2-60:Ke, conformal coating conforming to IEC 60068-2-52:Kb/1
Relative humidity 93-95 % at 25-55 °C, 6 cycles, 12 + 12 hours, 0-93 % at 40-40 °C, without condensation, 56 days
Ambient air temperature for storage -40-85 °C
Electromagnetic compatibility EMC immunity level 4 conforming to IEC 61000-4-5, EMC immunity level 4 conforming to IEC 61000-4-4, EMC immunity level 4 conforming to IEC 61000-4-16, EMC immunity conforming to GOST 30804.4.12, EMC immunity conforming to IEC 61000-4-12, EMC immunity conforming to ANSI C37.90.1, EMC immunity level 3 conforming to IEC 61000-4-18, EMC immunity level 3 conforming to IEC 61000-4-6, EMC immunity level 5 conforming to IEC 61000-4-10, EMC immunity level 5 conforming to IEC 61000-4-9, EMC immunity level 5 conforming to IEC 61000-4-8, EMC immunity conforming to IACS E10, EMC immunity conforming to GOST 30804.4.3, EMC immunity conforming to GOST 32137, EMC immunity conforming to ANSI C37.90.2, EMC immunity level 3 conforming to IEC 61000-4-3, EMC immunity class 4 conforming to ANSI C37.90.3, EMC immunity class 4 conforming to IEC 61000-4-2, emission tests conforming to IACS E10, emission tests class A conforming to CISPR 32, emission tests class A conforming to CISPR 11
IP degree of protection IP54 conforming to IEC 60529
Environmental characteristic influence of corrosion/gas test 4 conforming to IEC 60721-3-3, influence of corrosion/gas test 2 conforming to IEC 60721-3-3, influence of corrosion/gas test 4 conforming to IEC 60068-2-60, influence of corrosion/gas test 2 conforming to IEC 60068-2-60, salt mist conforming to IEC 60068-2-52, temperature variation conforming to IEC 60068-2-14, exposure to damp heat in service conforming to IEC 60068-2-30, exposure to damp heat in service conforming to IEC 60068-2-78, exposure to dry heat conforming to IEC 60068-2-2, exposure to cold conforming to IEC 60068-2-1
Ambient air temperature for operation -40-70 °C ( 96 h ) , -40-85 °C ( 16 h )
Mechanical robustness earthquakes (level: class 2) conforming to IEC 60255-21-3, shocks (level: class 2) conforming to IEC 60255-21-2, vibrations conforming to IACS E10, vibrations conforming to GOST 17516.1, vibrations (level: class 2) conforming to IEC 60255-21-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 30.0 cm
Package 1 Length 35.0 cm
Package 1 Weight 4.5 kg
