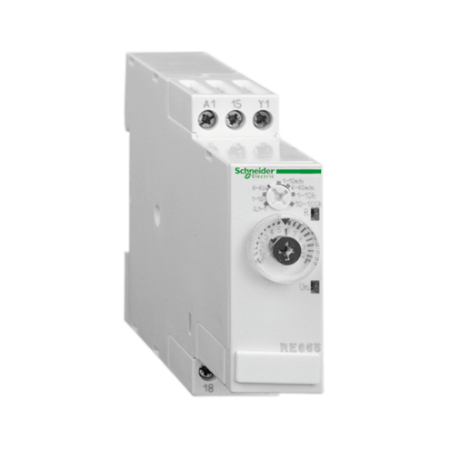

Picture of industrial timing relay, Harmony Timer Relays, 8A, 2CO, 0.6...160s, off delay, 24...240V AC
SKU:

RE88865265

industrial timing relay, Harmony Timer Relays, 8A, 2CO, 0.6...160s, off delay, 24...240V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
industrial timing relay, Harmony Timer Relays, 8A, 2CO, 0.6...160s, off delay, 24...240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Declaration of conformity
Product Page Link
Product Data Sheet
This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device It also offers a sealable cover, simple and precise settings with rotary trimmers

Products specifications

Attribute name Attribute value
Main
Time delay type K
Time delay range 0.6 s, 160 s, 20 s, 2.5 s
Component name RE88865
Product or component type industrial timing relay
Range of product Harmony Timer Relays
Contacts type and composition 2 C/O timed contacts, AgNi (cadmium free)
Complementary
Repeat accuracy +/- 0.5 % conforming to IEC 61812-1
Maximum power consumption in W 1.5 W at 240 V, 0.6 W at 24 V
[Uimp] rated impulse withstand voltage 5 kV for 1.2-50 µs conforming to IEC 61812-1, 5 kV for 1.2-50 µs conforming to IEC 60664-1
Housing material self-extinguishing
On-load factor 100 %
Breaking capacity 2000 VA, 80 W
Mechanical durability 5000000 cycles
Local signalling LED indicator (green) for pulsing: relay energised, no timing in progress, LED indicator (green) for on steady: relay energised, no timing in progress, LED indicator (green) for flashing: timing in progress
Mounting support 35 mm symmetrical mounting rail conforming to EN 50022
Minimum switching current 10 mA
Surge withstand 2 kV common mode conforming to IEC 61000-4-5 level 3, 1 kV differential mode conforming to IEC 61000-4-5 level 3
[Us] rated supply voltage 24...240 V AC 50/60 Hz, 24 V DC
Temperature drift +/- 0.05 %/°C
Connections - terminals screw terminals, 2 x 2.5 mm² without cable end, screw terminals, 2 x 1.5 mm² with cable end
Reset time 100 ms on de-energisation
Voltage drift +/- 0.2 %/V
Width pitch dimension 22.5 mm
Electrical durability 100000 cycles at 8 A, 250 V for resistive load
Net weight 0.09 kg
Power consumption in VA 32 VA at 240 V
Voltage range 0.85...1.1 Us
Marking CE
Maximum switching current 8 A
Minimum pulse duration 30 ms, 100 ms under load
Maximum switching voltage 250 V
Creepage distance 4 kV/3 conforming to IEC 60664-1
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Discrete output type relay
Environment
Dielectric strength 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
Resistance to fast transients 2 kV (direct) conforming to IEC 61000-4-4 level 3, 1 kV (capacitive connecting clip) conforming to IEC 61000-4-4 level 3
Immunity to radioelectric fields 10 V (0.15...80 MHz) conforming to ENV 50141 (IEC 61000-4-6)
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2 level 3, 6 kV in contact conforming to IEC 61000-4-2 level 3
Relative humidity 93-93 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -30-60 °C
IP degree of protection IP40 (housing) conforming to IEC 60529, IP30 (front face) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Vibration resistance 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Immunity to voltage dips 95 % / 5 s conforming to IEC 61000-4-11, 60 % / 100 ms conforming to IEC 61000-4-11, 30 % / 10 ms conforming to IEC 61000-4-11
Immunity to microbreaks 10 ms
Disturbance radiated/conducted class B conforming to EN 55022 (EN 55011 group 1)
Standards 89/336/EEC, 93/68/EEC, 73/23/EEC, IEC 60669-2-3, EN 50082-1/2, IEC 61812-1, EN 50081-1/2
Resistance to electromagnetic fields 10 V/m 80 MHz to 1 GHz conforming to IEC 61000-4-3 level 3, 10 V/m 80 MHz to 1 GHz conforming to ENV 50140/204 level 3
Ambient air temperature for operation -20-60 °C
Product certifications CSA, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 8.9 cm
Package 1 Length 11.0 cm
Package 1 Weight 125.0 g
Unit Type of Package 2 2
Number of Units in Package 2 96
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.586 kg
