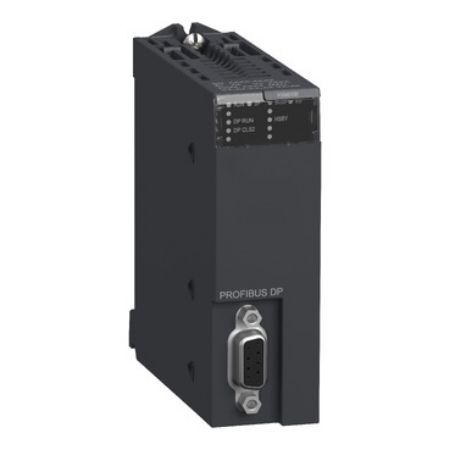

Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
Picture of communication module, Modicon M580, Profibus DP master
SKU:

PMEPXM0100

communication module, Modicon M580, Profibus DP master

$6,084.65 INC GST
Available for Shipping : 06-Jan-2026
communication module, Modicon M580, Profibus DP master
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Circularity Profile
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC)and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Profibus communication module is equipped with 1 SUB-D 9-pin female for Profibus DP. The Modicon X80 automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.270kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, UKCA and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This product is compatible with Modicon M580 processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M580
Product or component type Profibus communication module
Complementary
Module format standard
Bus type Profibus DP
Physical interface DB9 connector
Number of slave 125
Transmission rate 12 Mbit/s, 100 m bus , 3 Mbit/s, 100 m bus , 1.5 Mbit/s, 200 m bus , 500 kbit/s, 400 m bus , 187.5 kbit/s, 1000 m bus , 93.75 kbit/s, 1200 m bus , 19.2 kbit/s, 1200 m bus , 9.6 kbit/s, 1200 m bus
Range compatibility Modicon M580
Integrated connection type Profibus DP - 1 SUB-D 9-pin female
Isolation voltage 1500 V for 1 min 50/60 Hz
Communication service implicit exchange of process data
Current consumption 70 mA 24 V maximum, 43 mA 24 V typical
Net weight 0.270 kg
Transmission support medium Profibus DP twisted shielded pairs cable
[Us] rated supply voltage 24 V DC internal power supply via rack
Power consumption in W 1690 mW at 24 V maximum, 1040 mW at 24 V typical
Environment
Relative humidity 10-95 %
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude <= 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.400 cm
Package 1 Width 17.300 cm
Package 1 Length 21.700 cm
Package 1 Weight 320.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.830 kg
