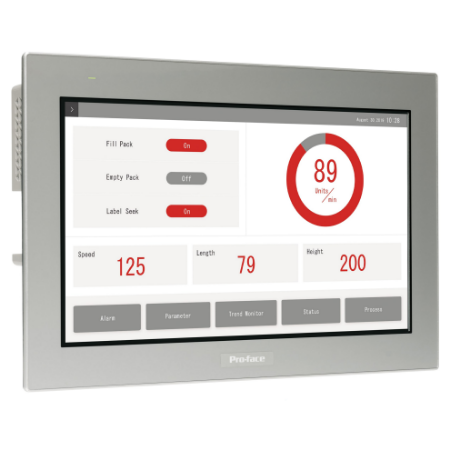

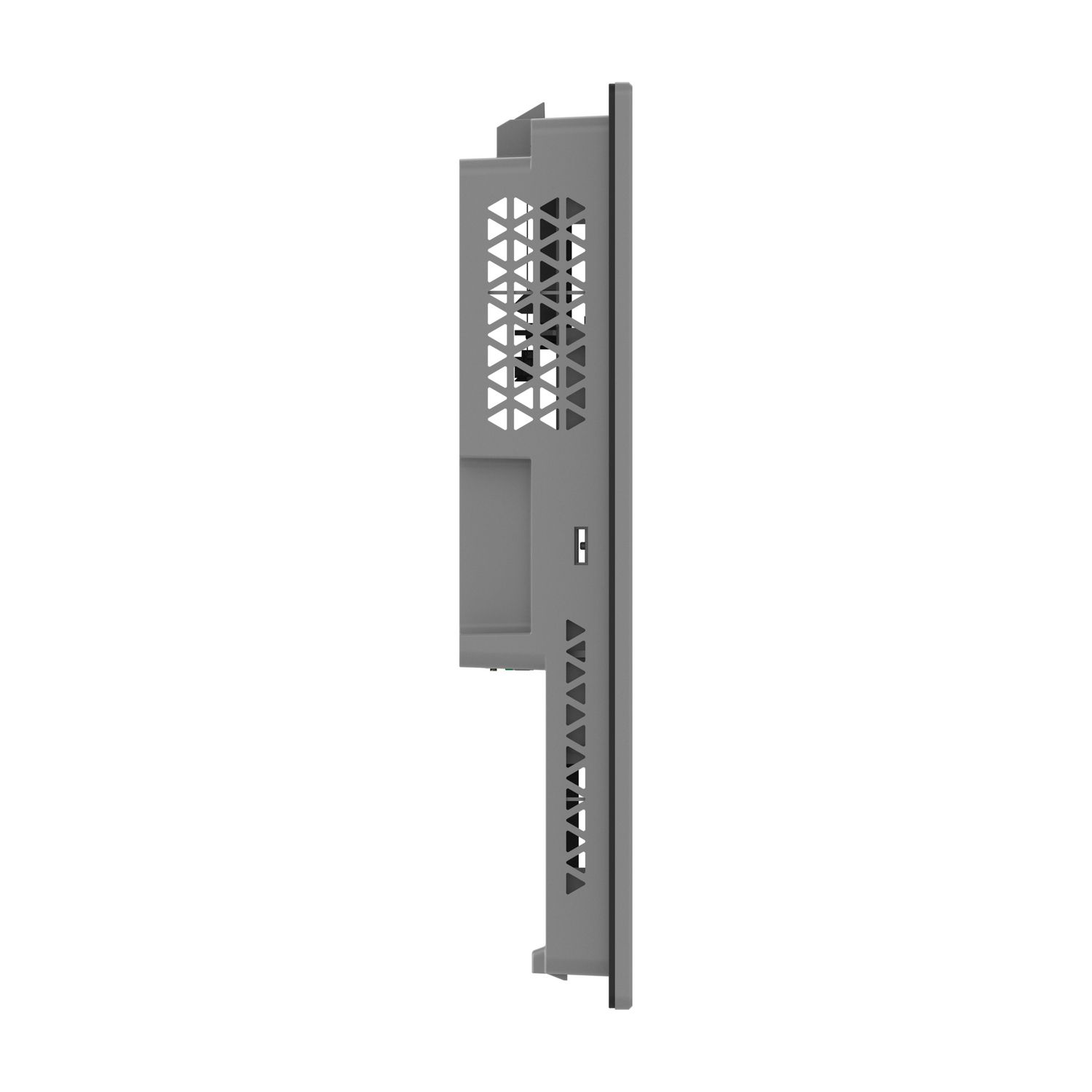

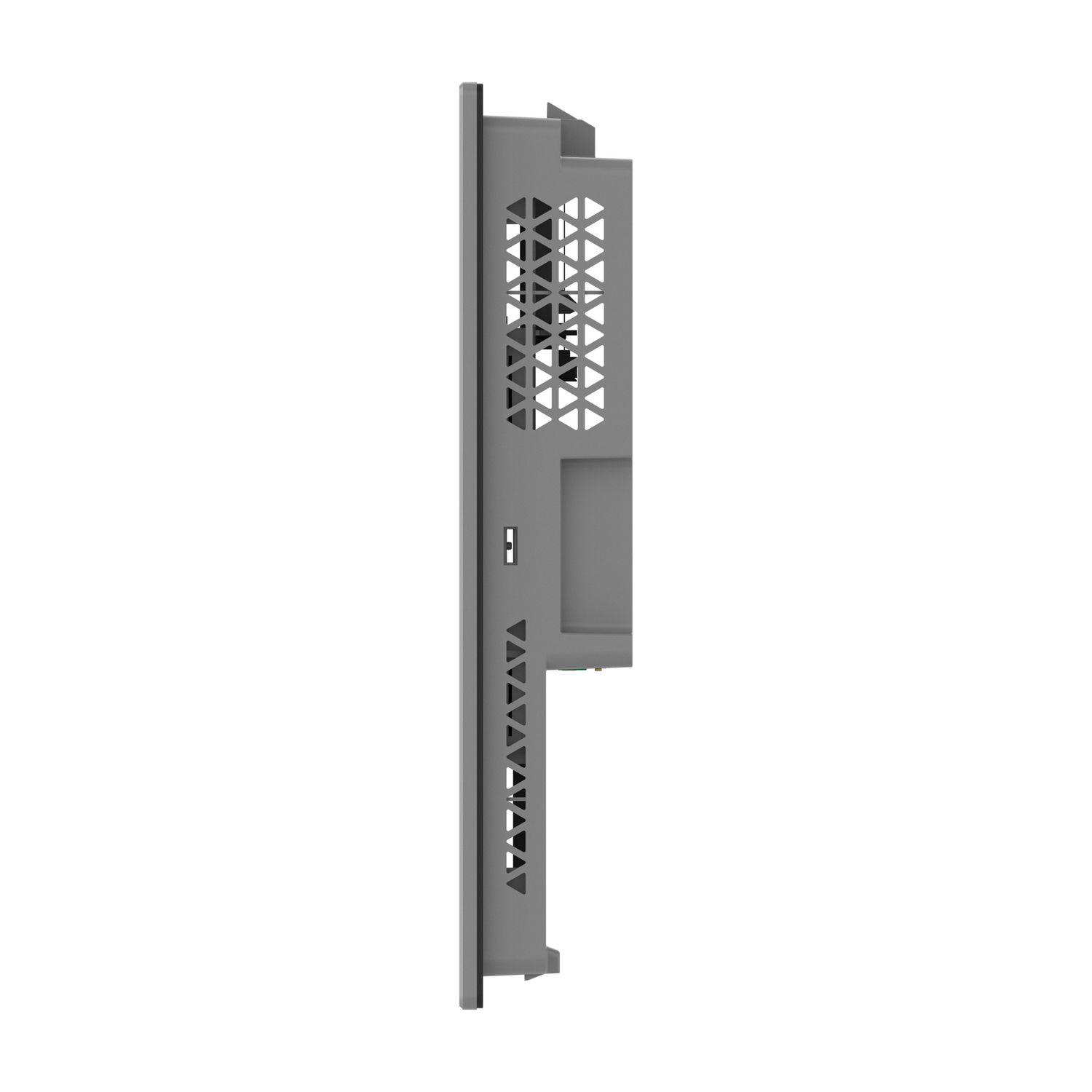

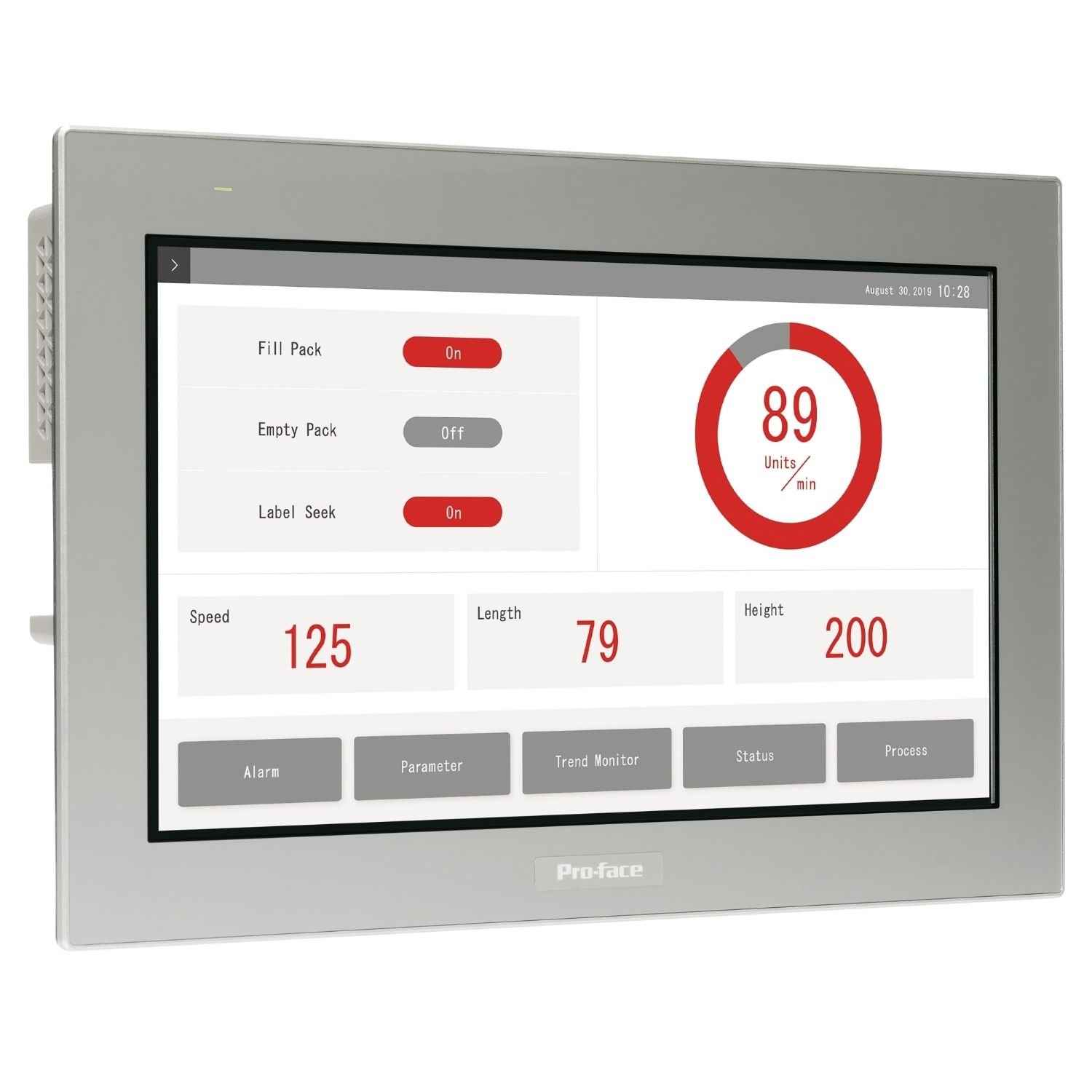

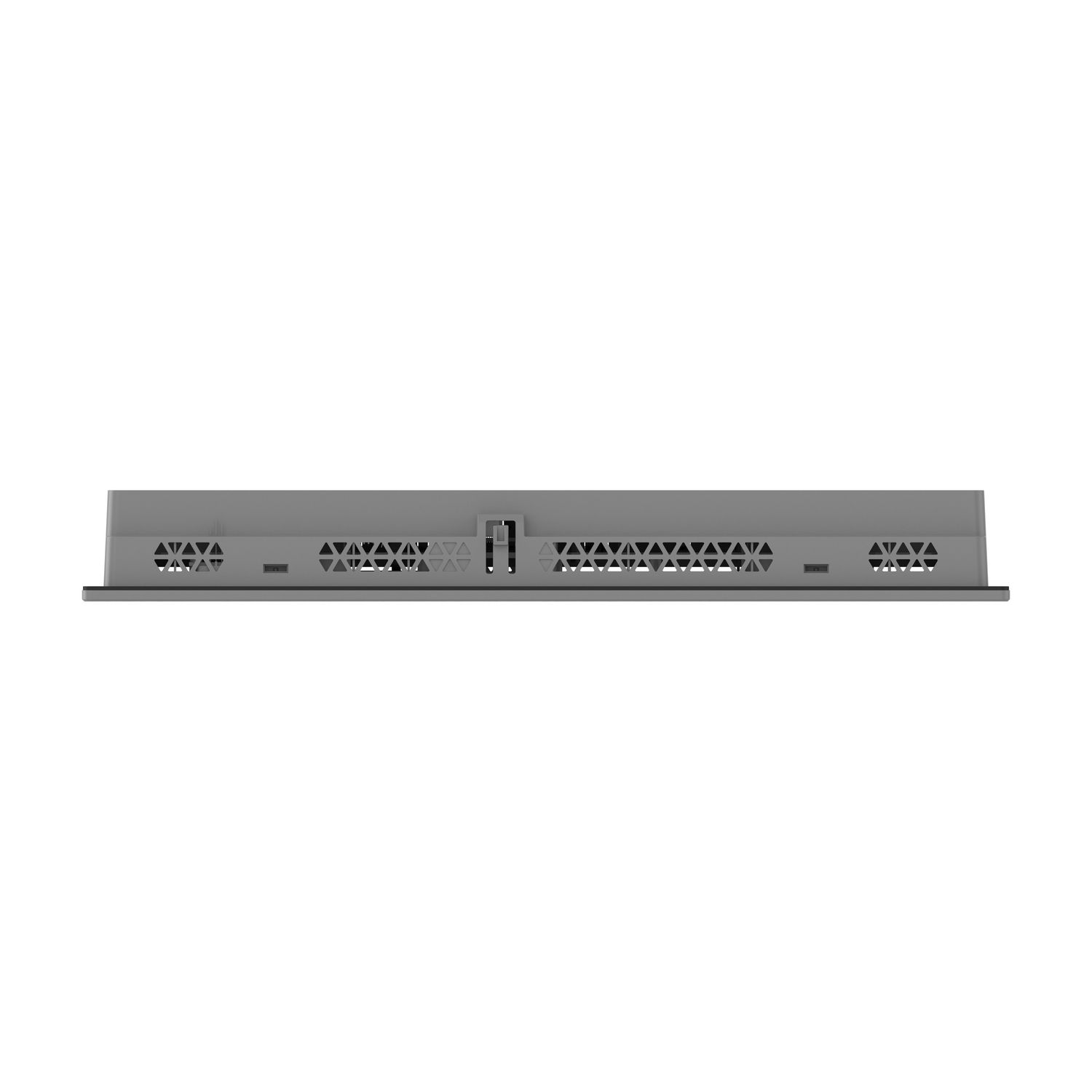

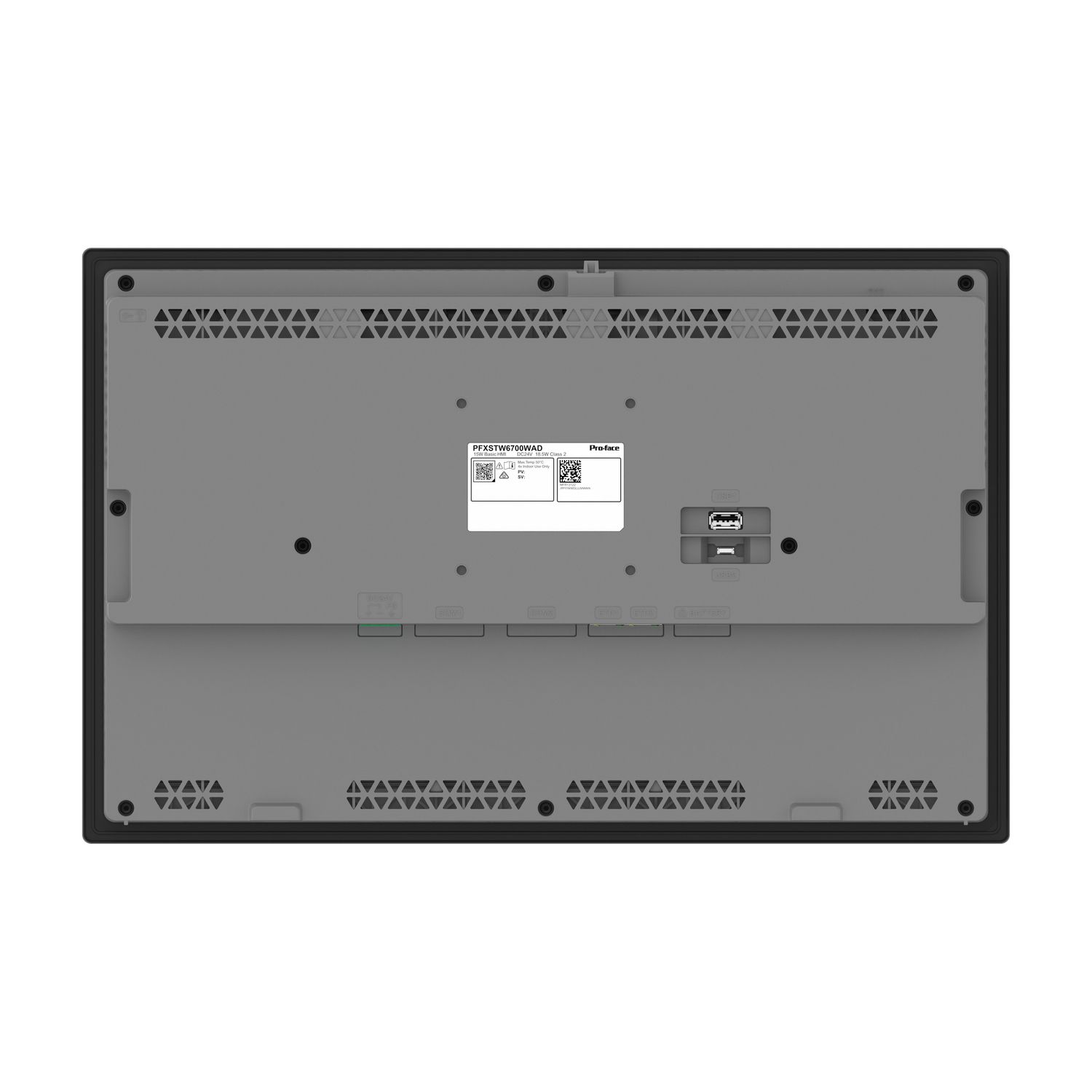

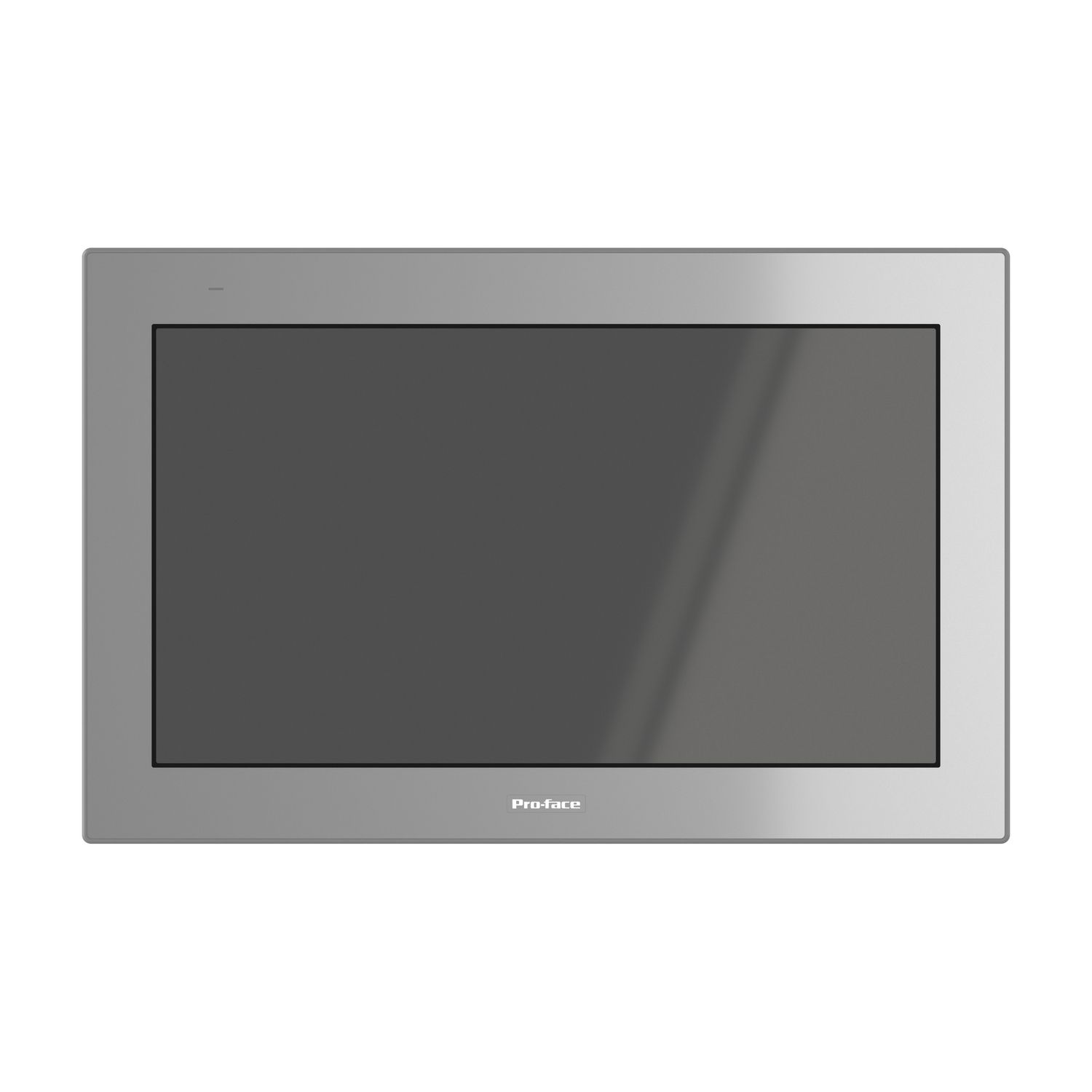

Picture of 10"W touch panel display, 2Ethernet, USB host, 24VDC
SKU:

PFXSTW6700WAD

10"W touch panel display, 2Ethernet, USB host, 24VDC

$3,627.87 INC GST
Available for Shipping : 04-Feb-2026
10"W touch panel display, 2Ethernet, USB host, 24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 04-Feb-2026
Environmental Disclosure
User guide
Circularity Profile
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face STW6000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 16 million colours
Display size 15 inch
Type of cooling AN (air natural)
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 268 mm
Maximum power consumption in W 5.9 W when backlight is OFF, 15 W when power is not supplied to external devices, 18.4 W
Depth 50 mm
Width 412 mm

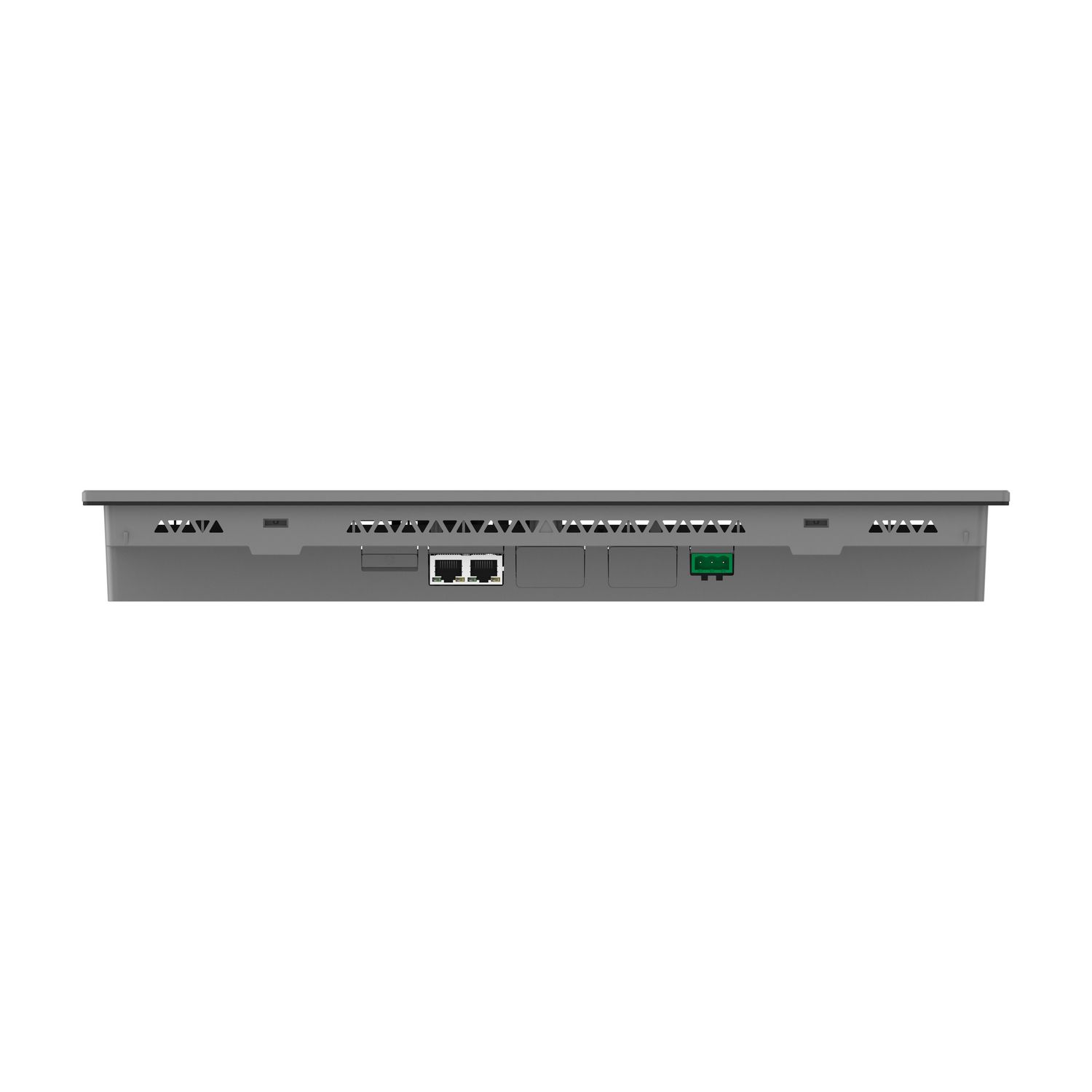

Integrated connection type 2 Ethernet TCP/IP female RJ45 10BASE-T/100BASE-TX, USB 2.0 type A
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 2.7 kg
Display resolution 1366 x 768 pixels FWXGA
Cut-out dimensions 394 x 250 mm
Inrush current 30 A
Brightness 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Maximum cycle time 10 ms
Environment
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
IP degree of protection IP65f (front panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to EN/IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to EN/IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA Type 1, NEMA 4X front panel (indoor use)
Vibration resistance 9.8 m/s² (f = 9-150 Hz), 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance >= 10 MOhm
Standards KN 61000-6-2, KN 11, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4
Product certifications UKCA, RCM, IC, UL/cUL listed, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 36.000 cm
Package 1 Length 52.500 cm
Package 1 Weight 3.480 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.674 kg
