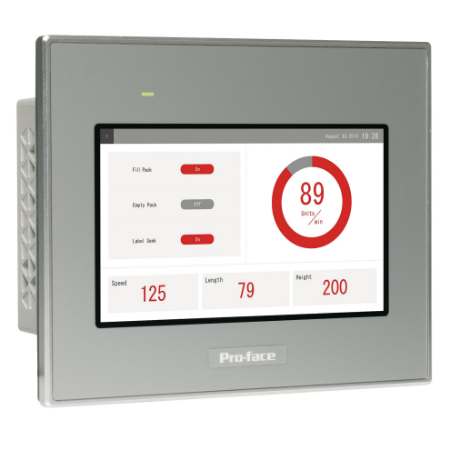

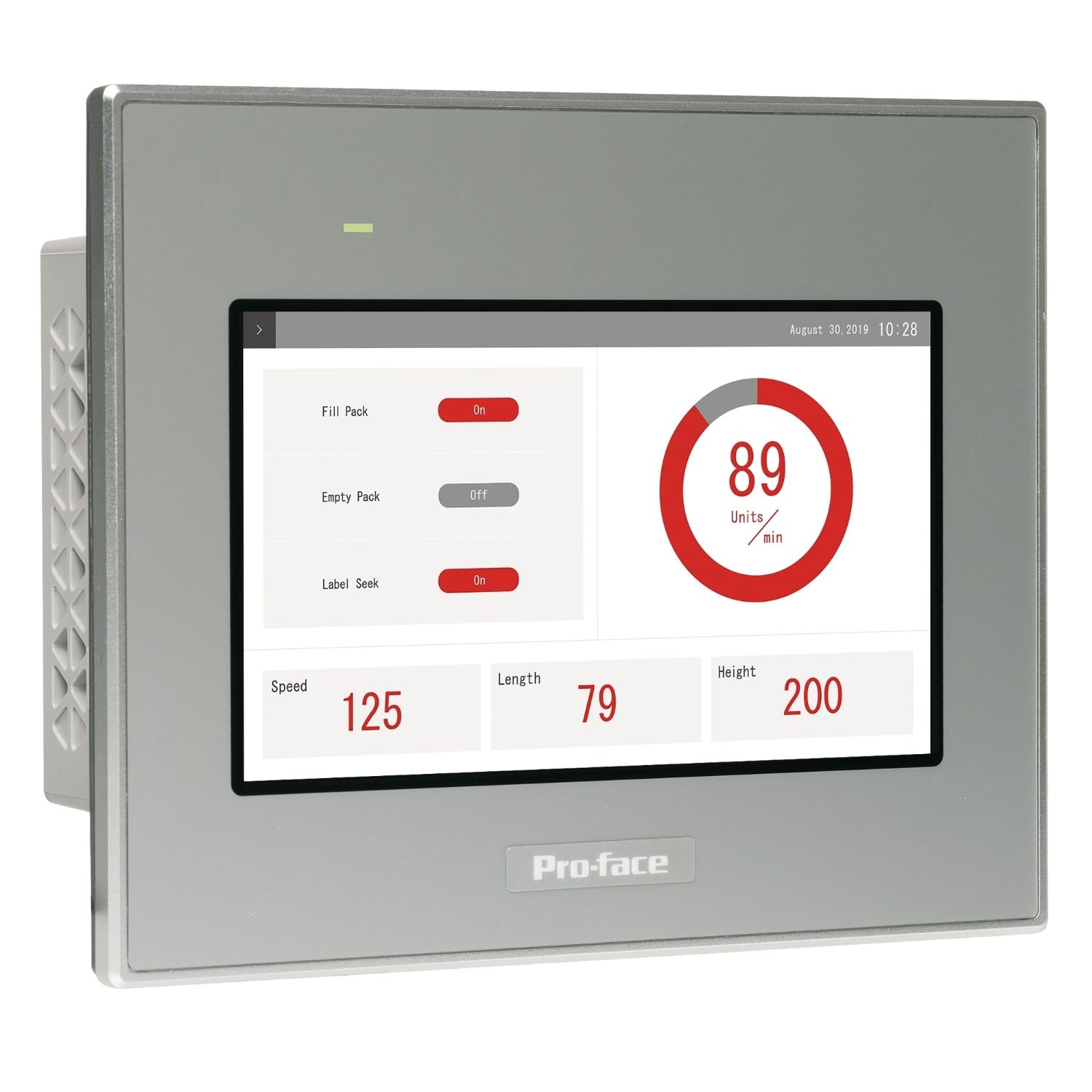

Picture of 4"W touch panel display, 1COM, 2Ethernet, USB host&device, 24VDC
SKU:

PFXSTW6200WAD

4"W touch panel display, 1COM, 2Ethernet, USB host&device, 24VDC

$738.72 INC GST
Available for Shipping : 04-Feb-2026
4"W touch panel display, 1COM, 2Ethernet, USB host&device, 24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 04-Feb-2026
Environmental Disclosure
User guide
Circularity Profile
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Basic Web HMI panel belongs to the Pro-face STW6000 range. This single-touch resistive HMI is made of aluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inches wide with 16 million colors and 480 x 272 pixel resolution. It is a ready-to-use agnostic HMI terminal with pre-installed HTML5 browser. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 512 MB user data memory, and 128 KB backup memory. This HMI STW6000 supports 1x Ethernet port, and 1x USB 2.0 Type A. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 standards & CSA, CE, China RoHS, KC, REACH certifications. It is designed for panel mounting by 2 fastener screws. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure). It is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost-effective equipment.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face STW6000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 16 million colours
Display size 4 inch
Type of cooling AN (air natural)
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 108.5 mm
Maximum power consumption in W 2.8 W when backlight is OFF, 3.6 W when power is not supplied to external devices, 6.9 W
Depth 43 mm
Width 134.5 mm

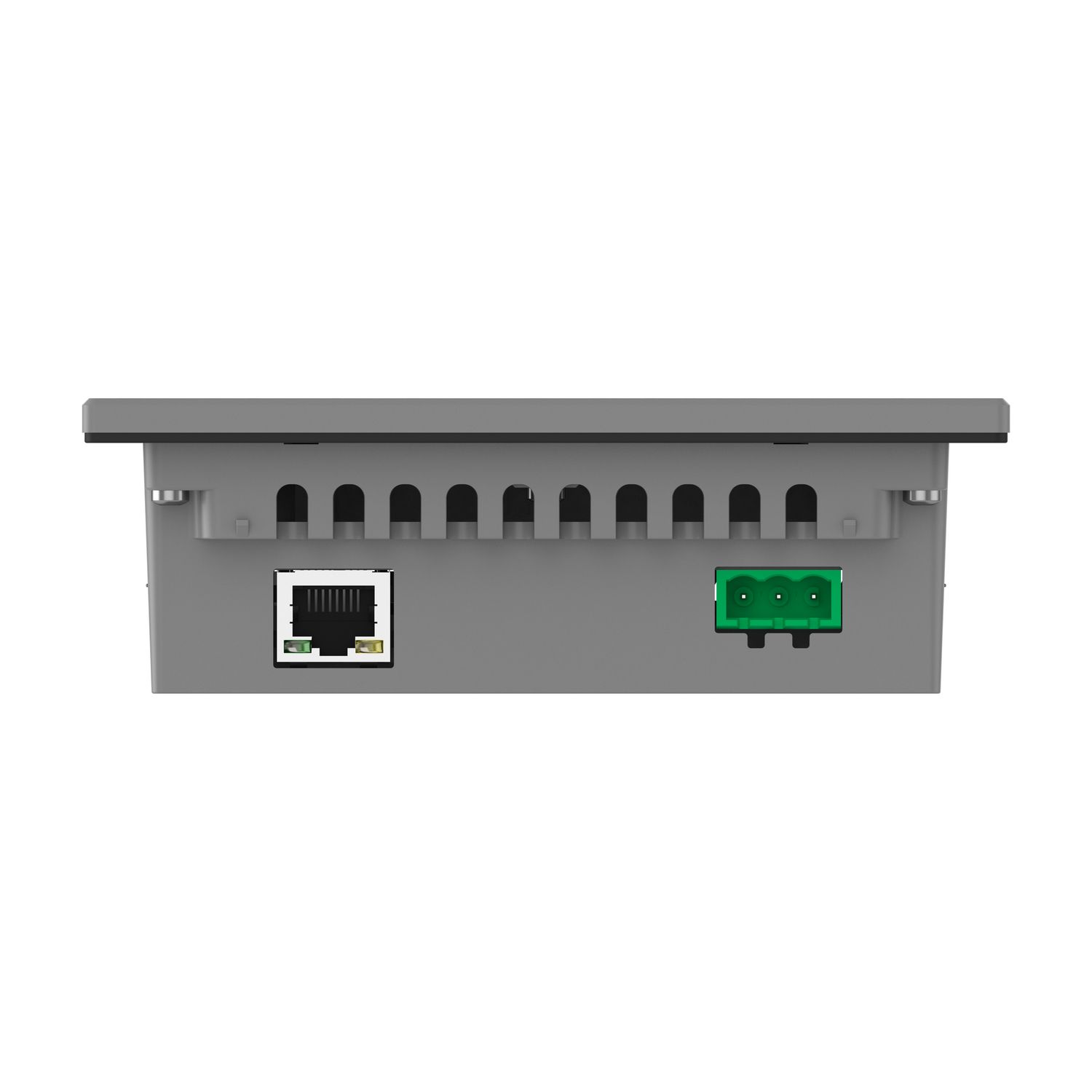

Integrated connection type 1 Ethernet TCP/IP female RJ45 10BASE-T/100BASE-TX, USB 2.0 type A
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 0.4 kg
Display resolution 480 x 272 pixels
Cut-out dimensions 118.5 x 92.5 mm
Inrush current 30 A
Brightness 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Maximum cycle time 2 ms
Environment
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
IP degree of protection IP65f (front panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA Type 1, NEMA 4X front panel (indoor use)
Vibration resistance 9.8 m/s² (f = 9-150 Hz), 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Insulation resistance >= 10 MOhm
Standards KN 61000-6-2, KN 11, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Product certifications UKCA, RCM, IC, UL/cUL listed, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 13.500 cm
Package 1 Length 18.500 cm
Package 1 Weight 447.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.330 kg
