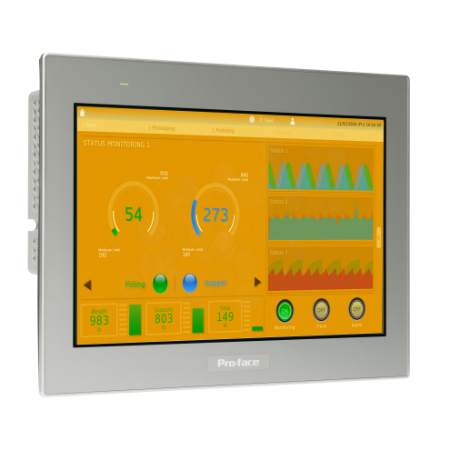

Picture of 12"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC
SKU:

PFXST6600WAD

12"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC

$3,455.65 INC GST
Available for Shipping : 06-Jan-2026
12"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 06-Jan-2026
Declaration of conformity
Environmental Disclosure
Instruction sheet
User guide
Circularity Profile
Product Page Link
Product Data Sheet

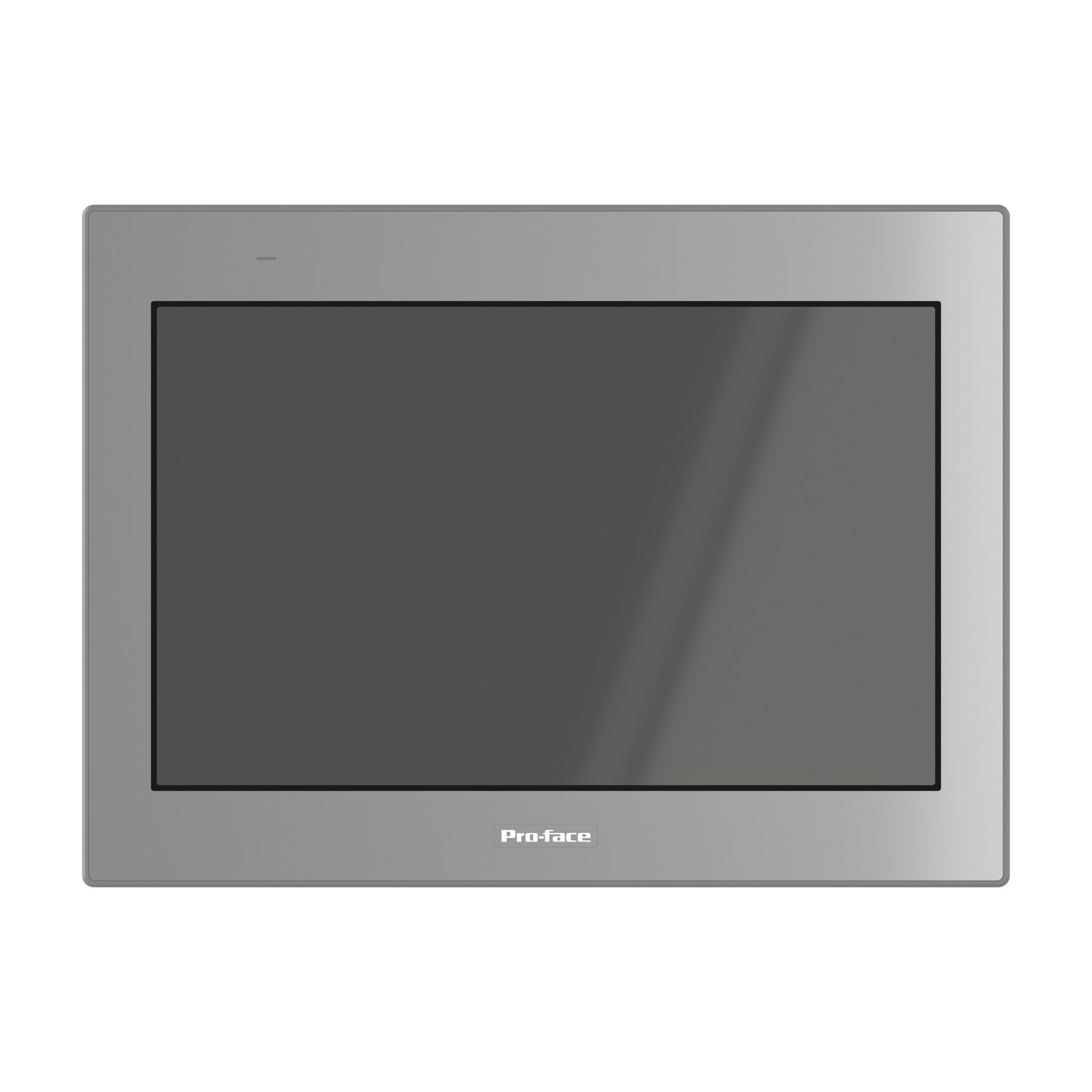

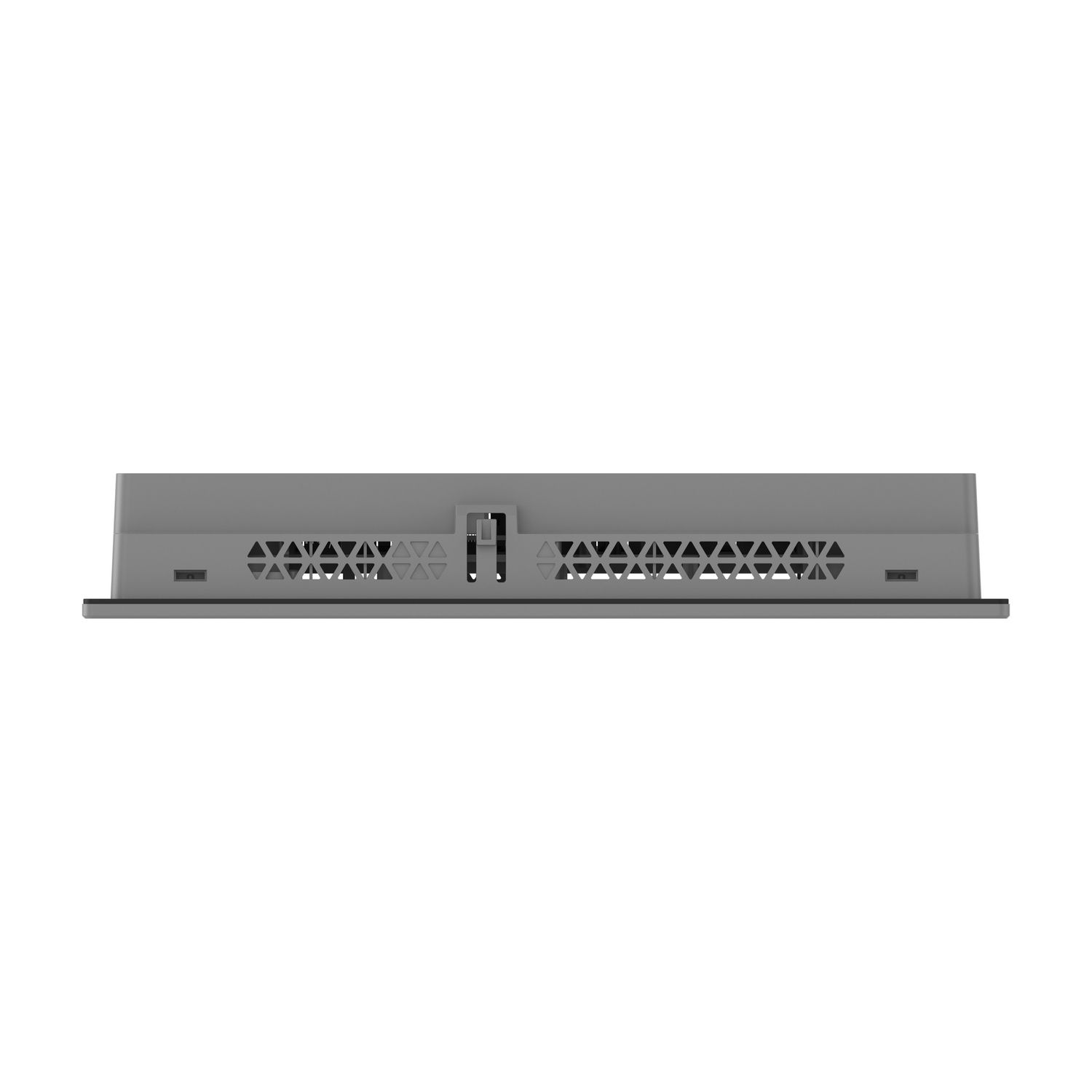

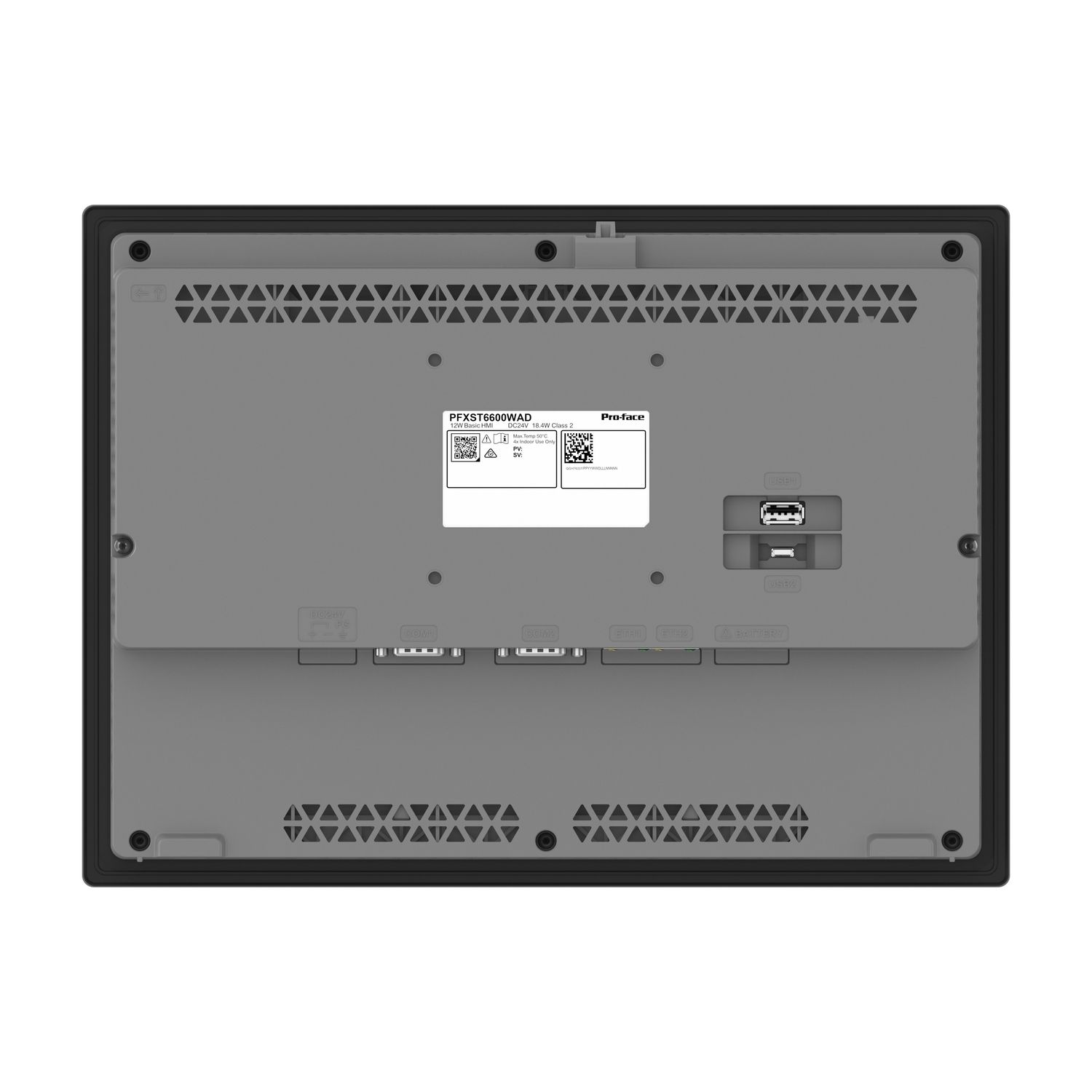

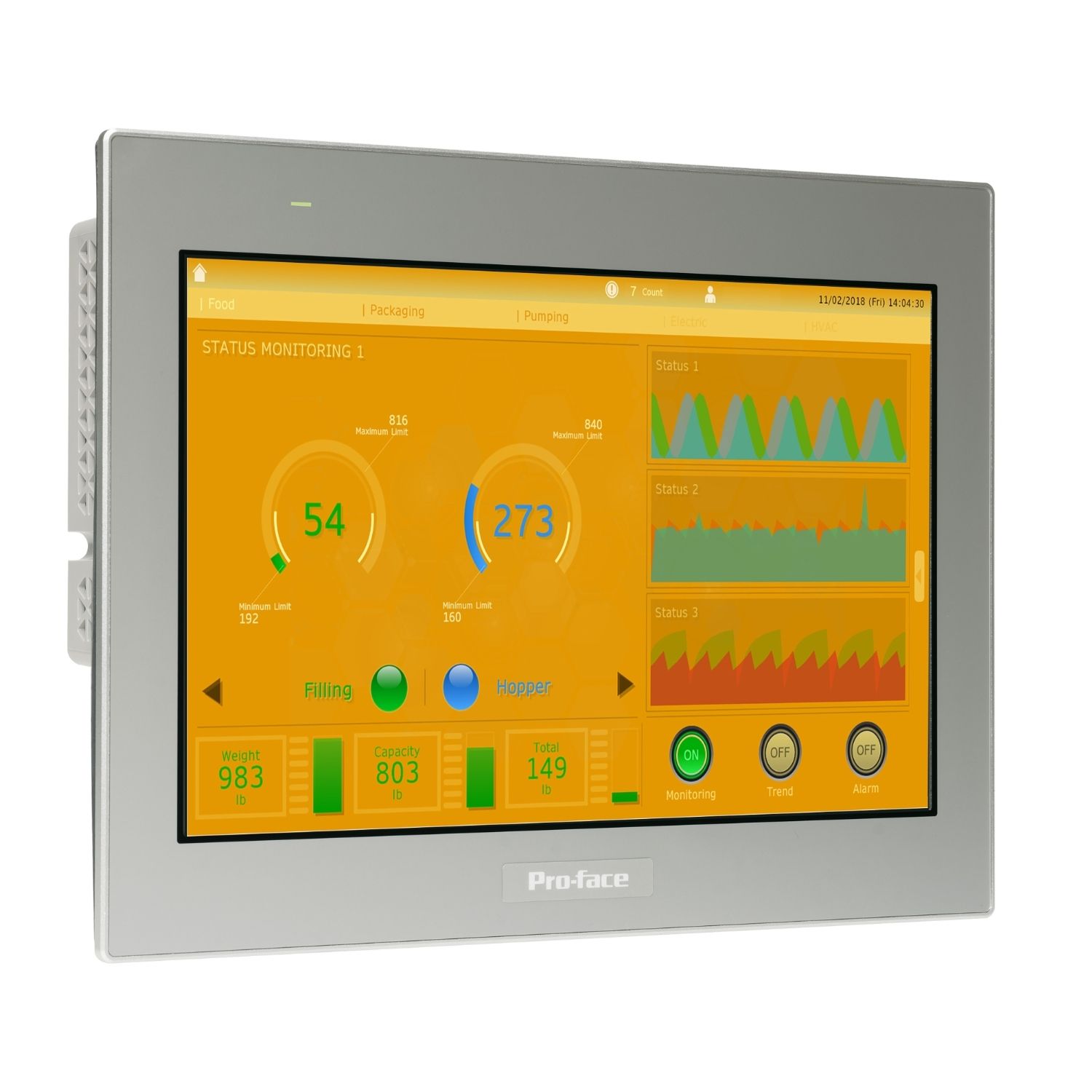

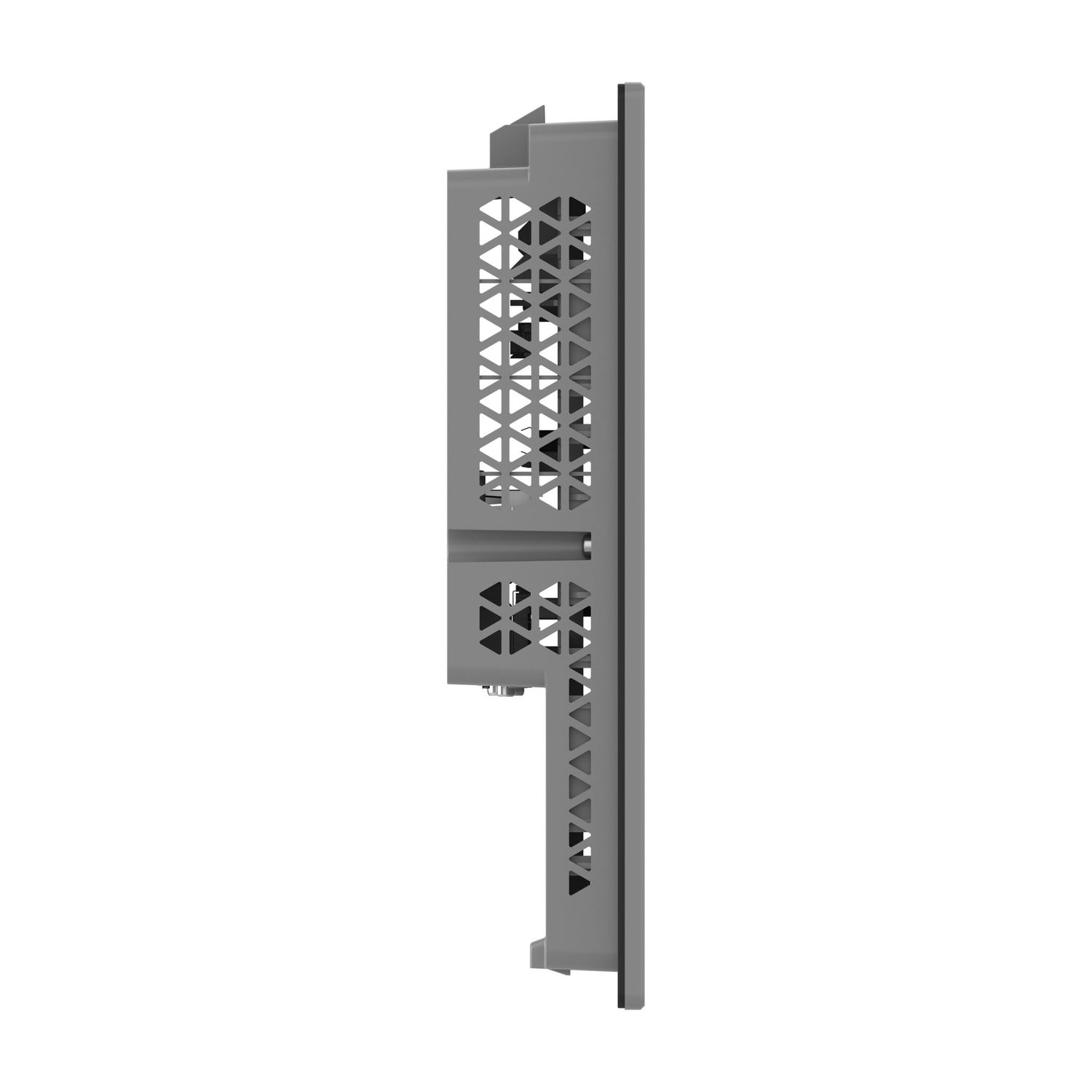

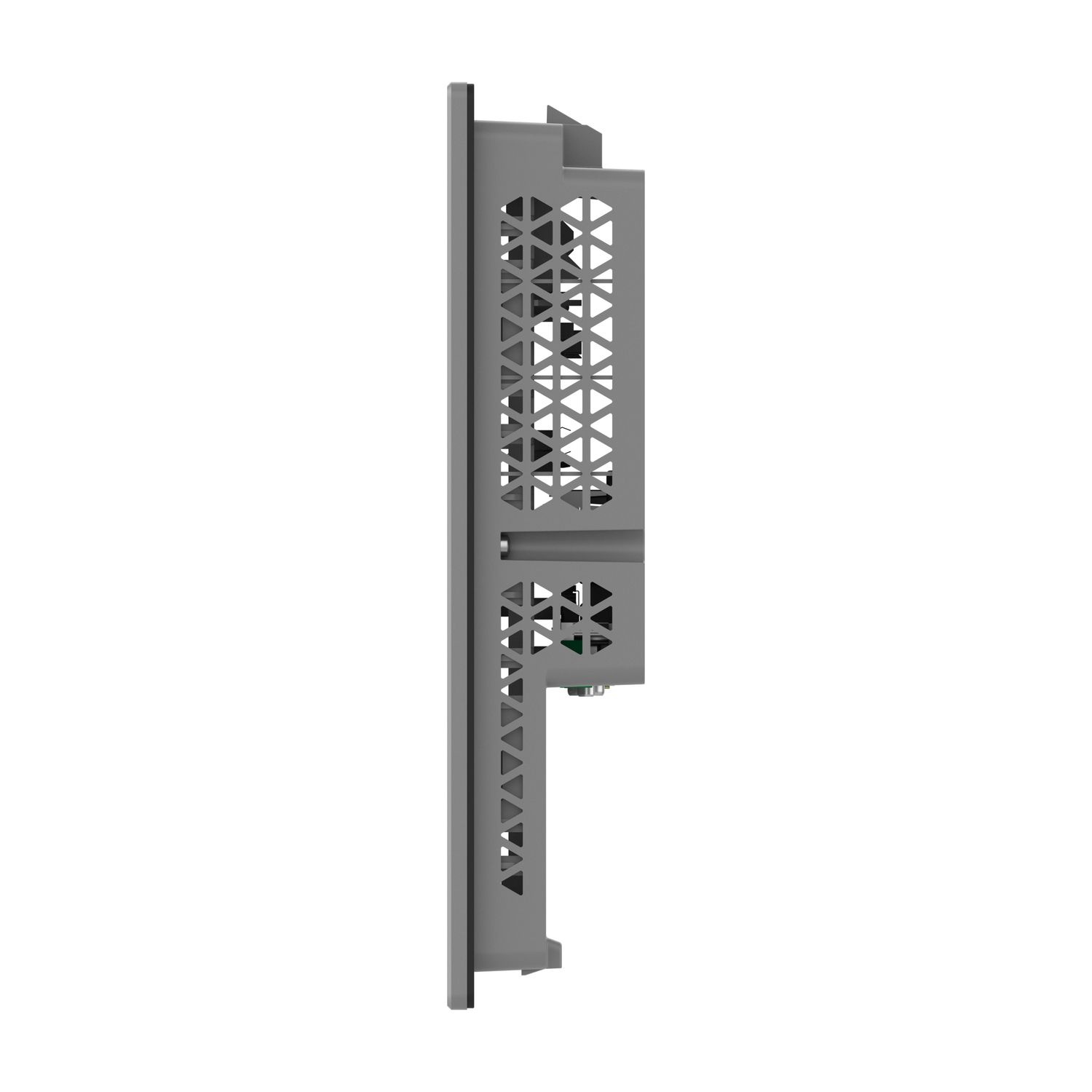

This Basic HMI panel belongs to the Pro-face ST6000 range. This single-touch resistive HMI is made of aluminium front panel with higher resolution and more color. This HMI interface is 12.1 inches wide with 16 million colors and 1,280 x 800 pixel resolution (WXGA). It is powered by BLUE software for an intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6000 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 313mm (width) x 235mm (height) x 50mm (depth) and weighs 1.80Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors. It conforms to EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 standards & CSA, CE, China RoHS, KC, REACH certifications. It is designed for panel mounting by 4 fastener screws. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure). It is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost-effective equipment.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face ST6000
Product or component type touch panel screen
Complementary
Memory description backup memory 500 kB, device memory 128 MB
Display type colour TFT LCD
Display colour 16 million colours
Display size 12 inch
Type of cooling AN (air natural)
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws conforming to IEC 61000-6-2, by 4 screws conforming to IEC 61131-2, by 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 235 mm
Maximum power consumption in W 5.9 W when backlight is OFF, 15 W when power is not supplied to external devices, 18.4 W
Depth 50 mm
Front material aluminium
Width 313 mm
Enclosure material PC

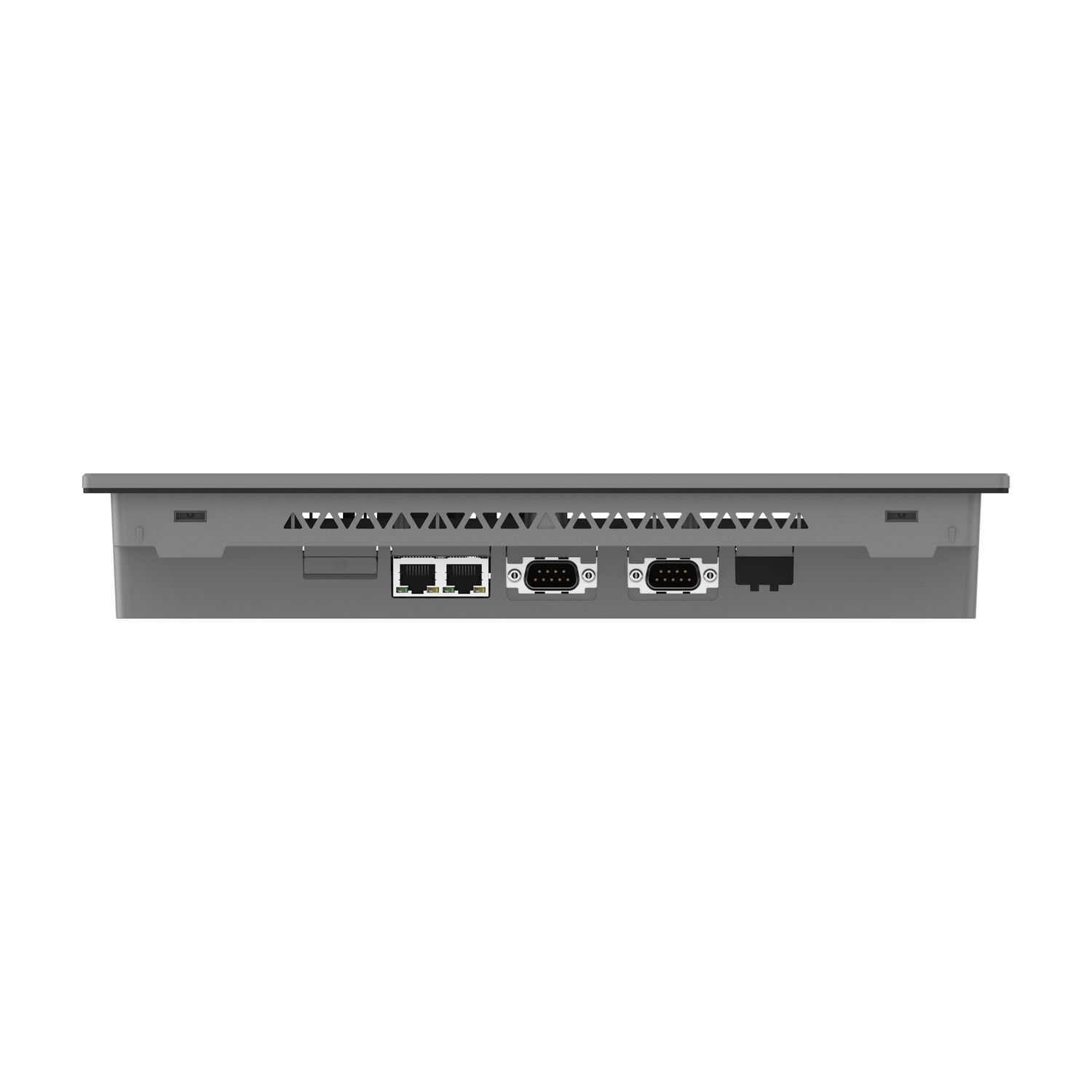

Integrated connection type Ethernet female RJ45 10BASE-T/100BASE-TX, USB 2.0 type micro B, USB 2.0 type A, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps, COM1 serial link 1 SUB-D 9-pin female, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 1.8 kg
Display resolution 1280 x 800 pixels WXGA
Data format 8 bits, no parity, 1 or 2 stop even or odd
Cut-out dimensions 295 x 217 mm
Inrush current 30 A
Brightness 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Maximum cycle time 10 ms
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
IP degree of protection IP65f (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA Type 1, NEMA 4X front panel (indoor use)
Vibration resistance 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Insulation resistance >= 10 MOhm
Standards KN 61000-6-2, KN 11, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Storage Relative Humidity 10-90 % non-condensing
Product certifications UKCA, RCM, IC, UL/cUL listed, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 30.500 cm
Package 1 Length 40.000 cm
Package 1 Weight 2.250 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 34.000 cm
Package 2 Width 41.000 cm
Package 2 Length 55.000 cm
Package 2 Weight 10.215 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 52.860 kg
