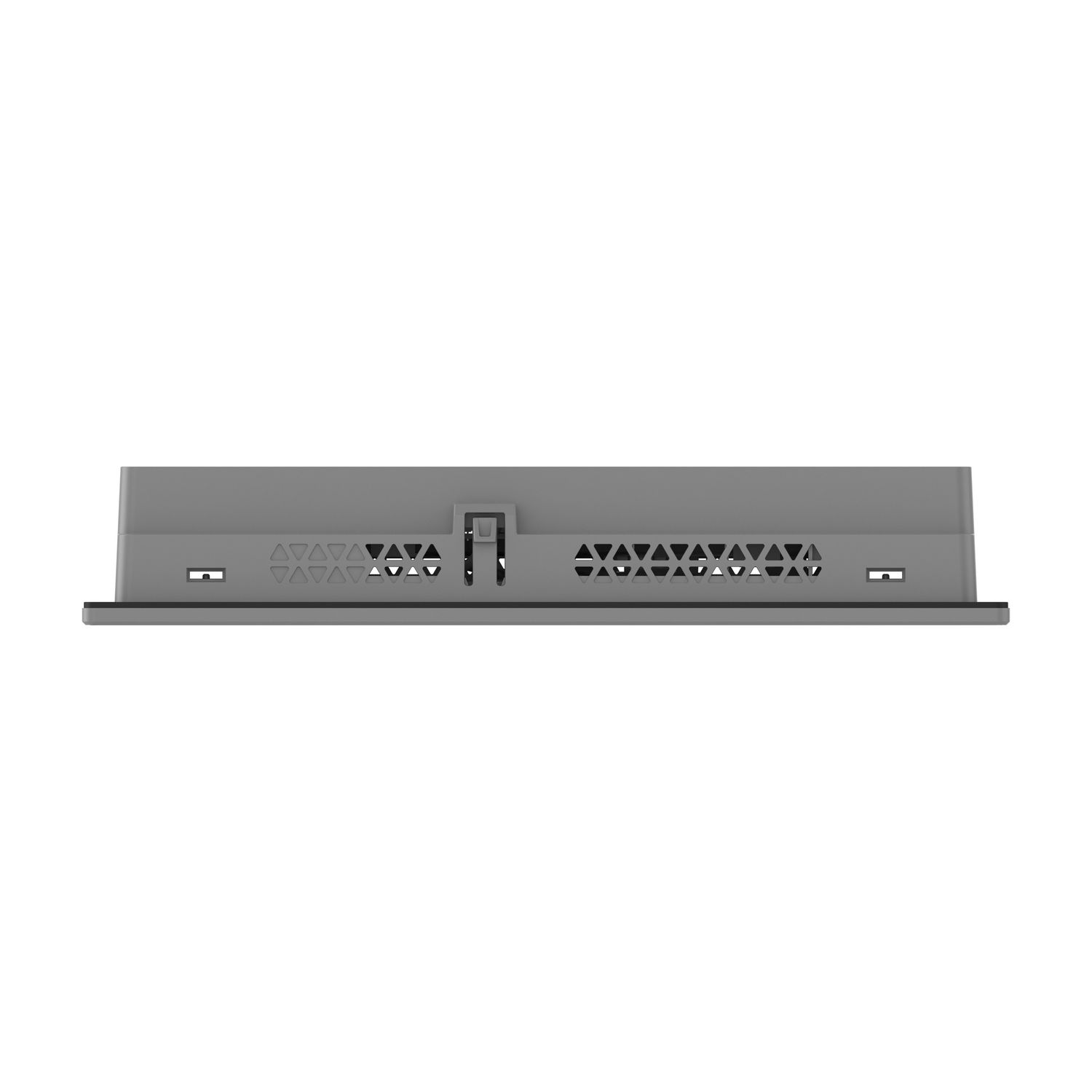

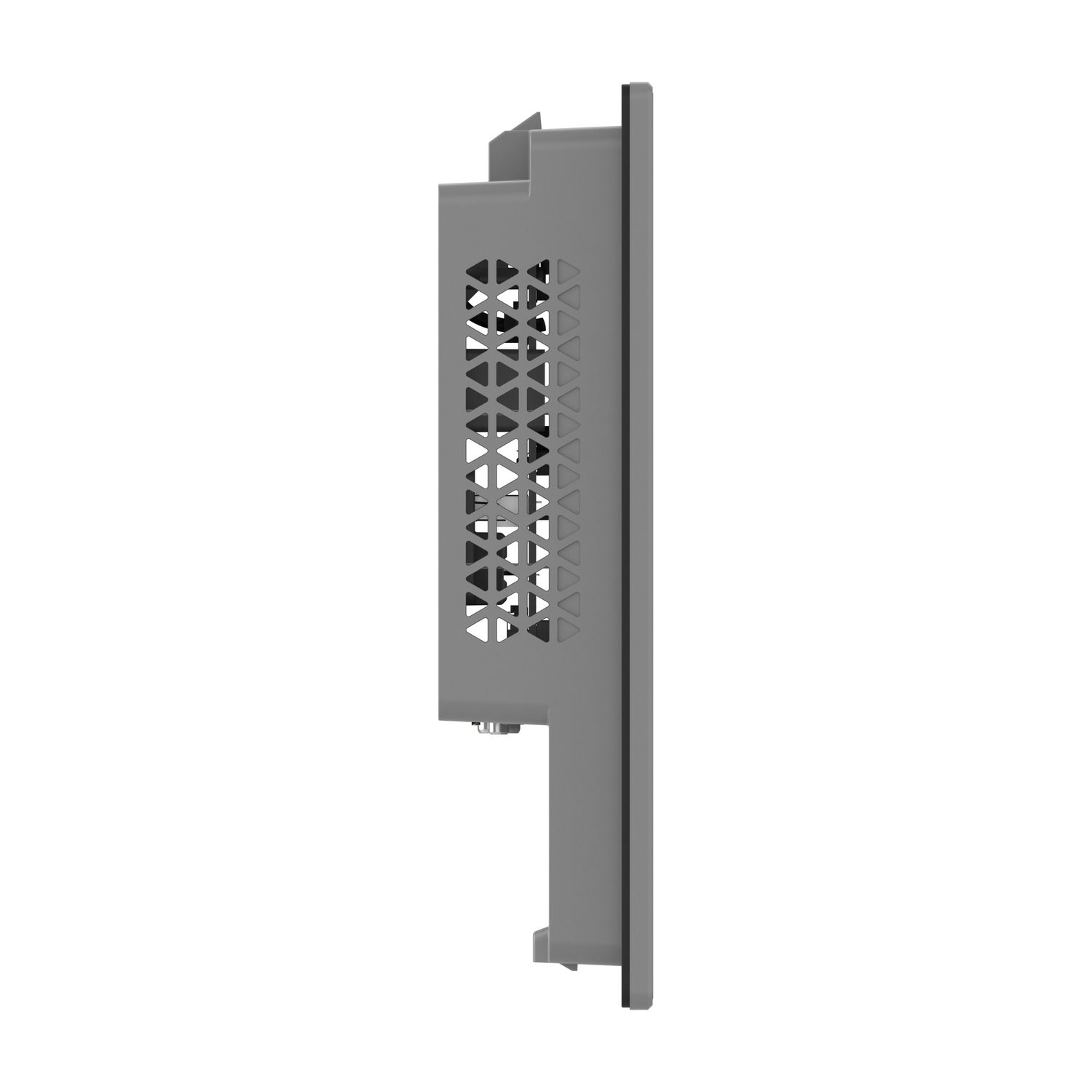

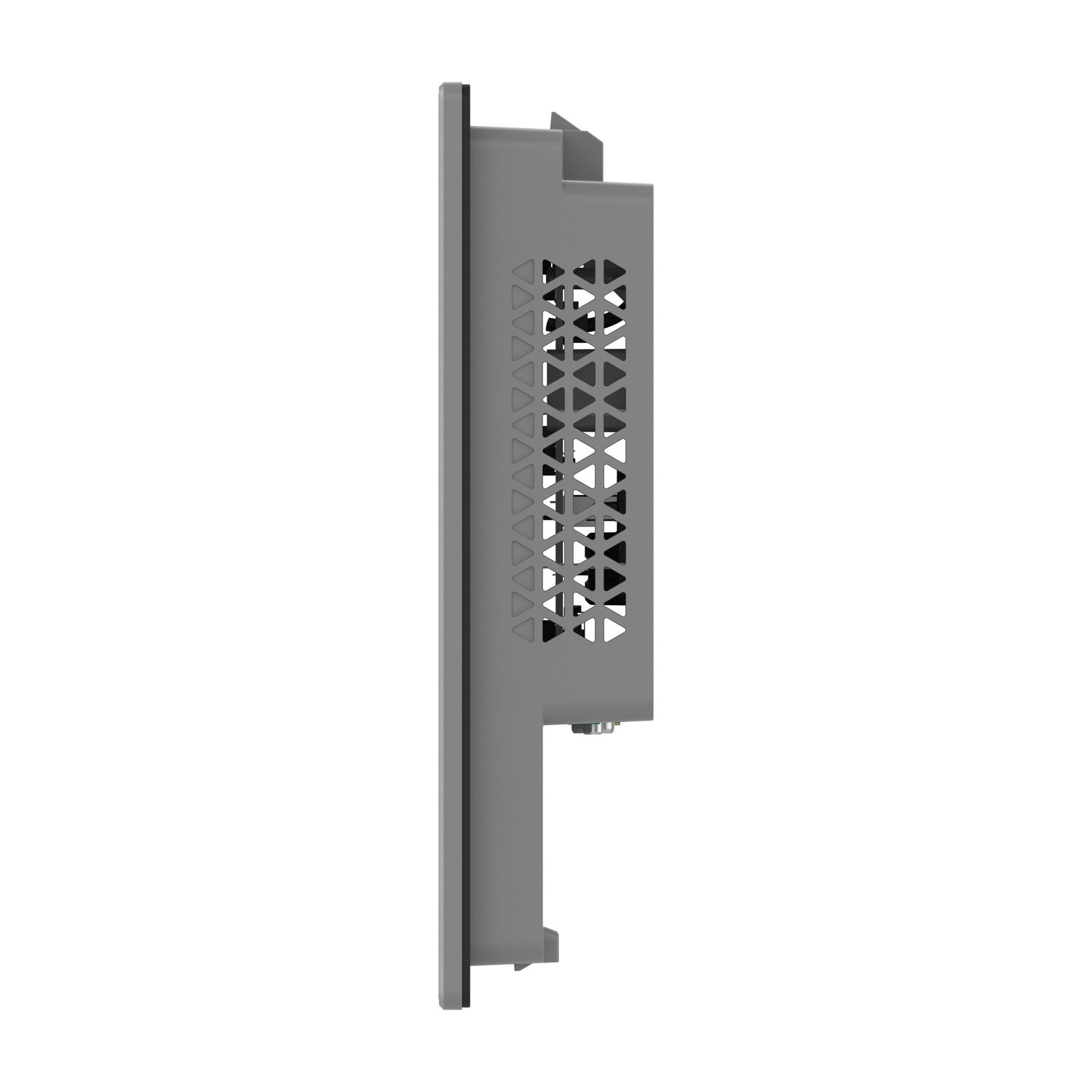

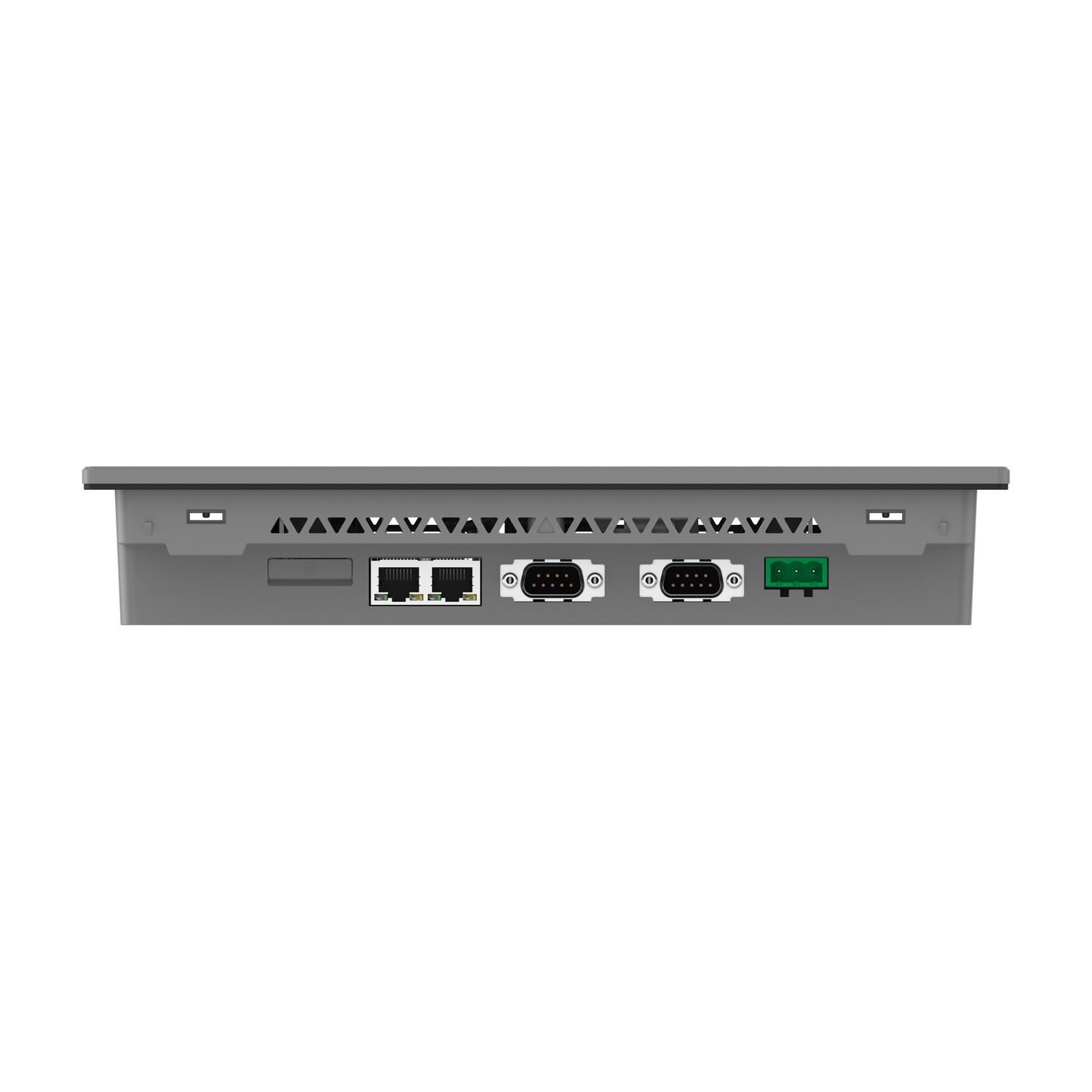

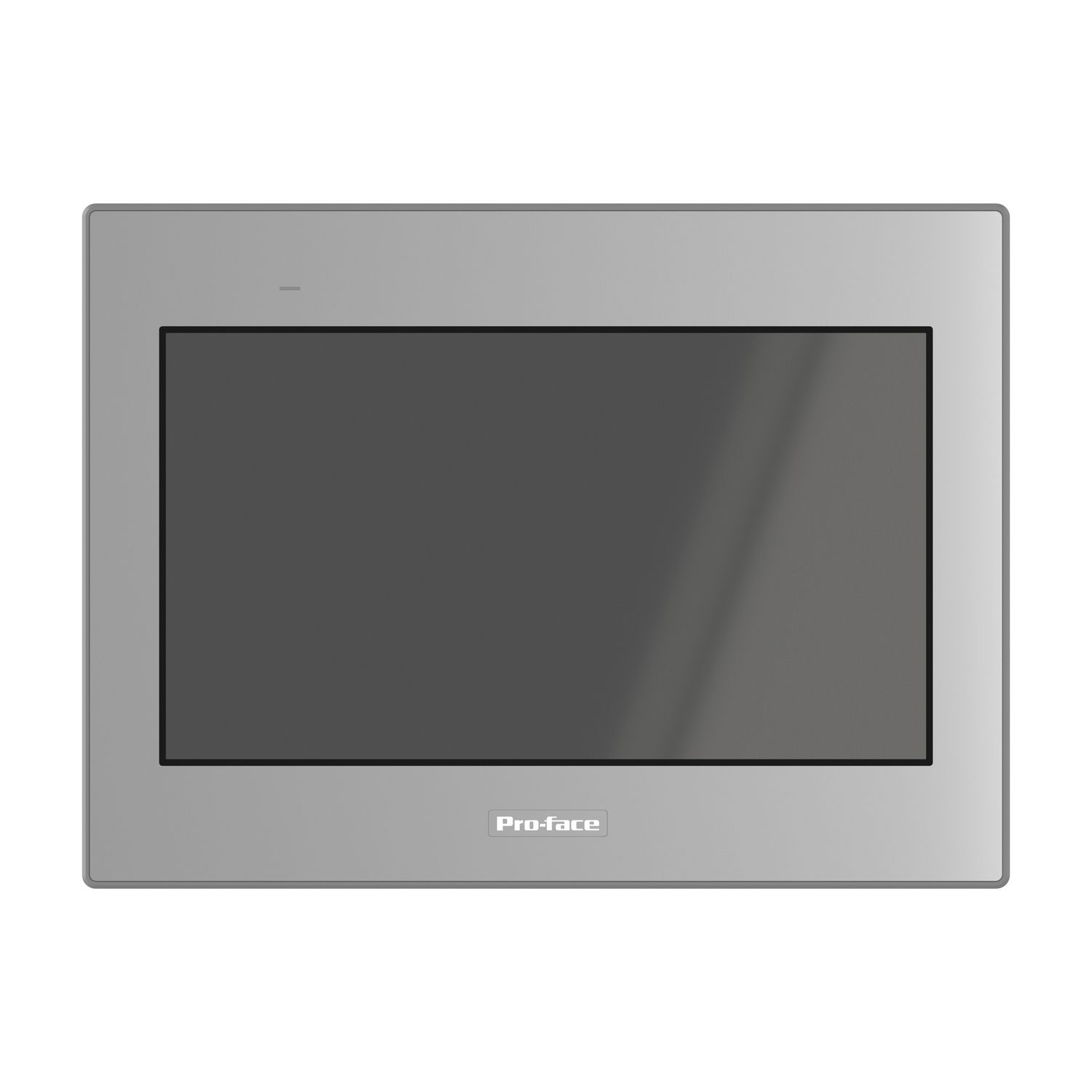

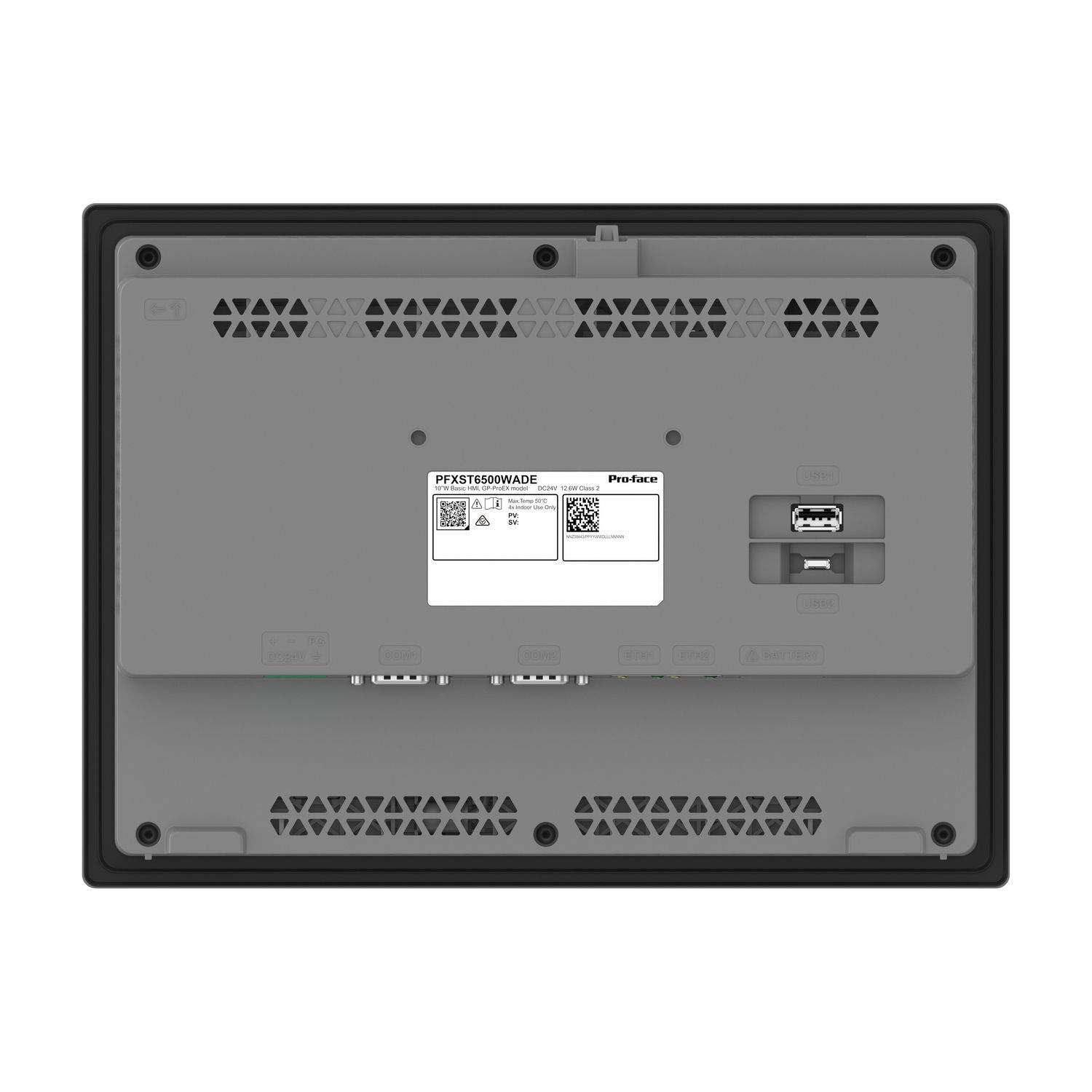

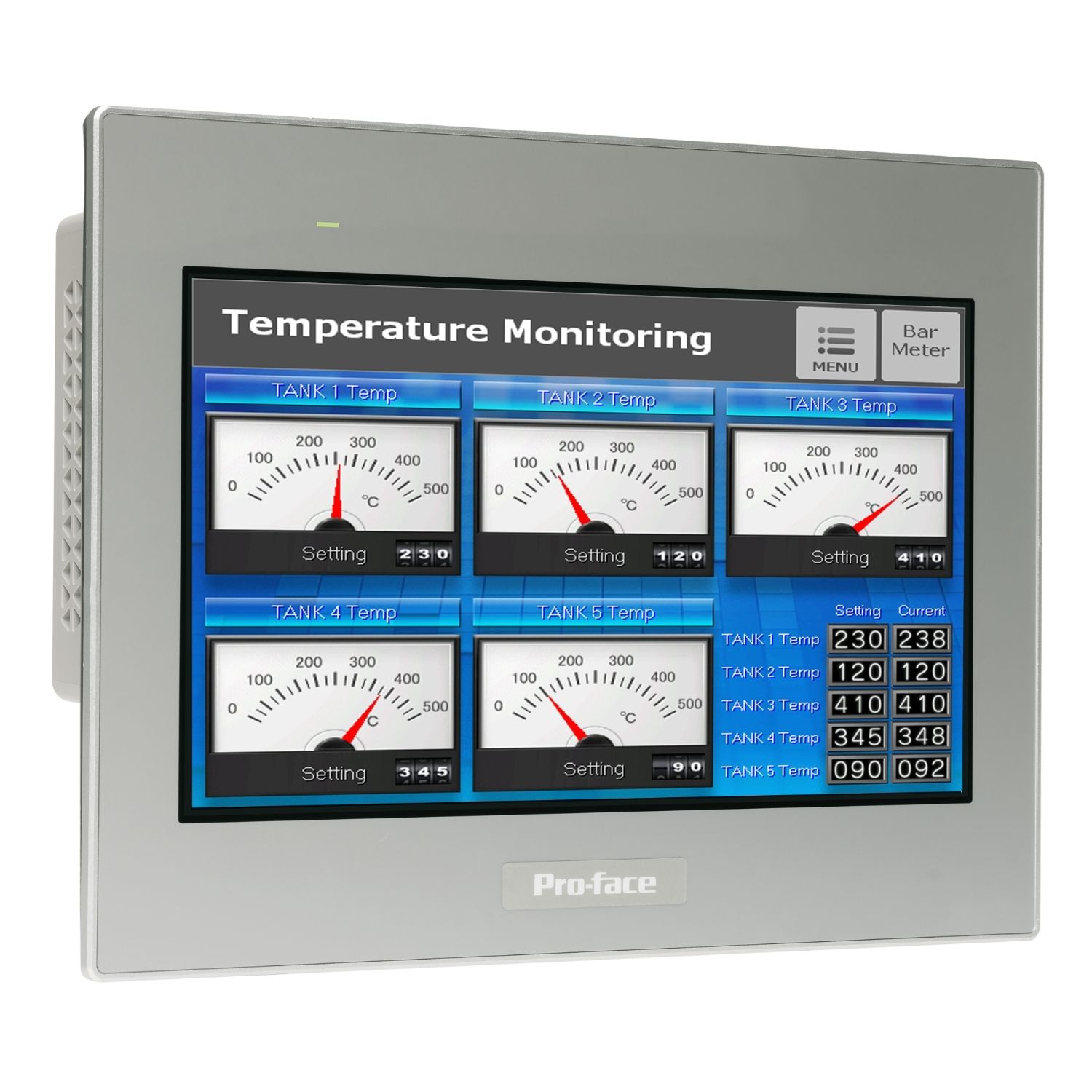

Picture of 10"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model
SKU:

PFXST6500WADE

10"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model

$2,544.64 INC GST
Available for Shipping : 06-Jan-2026
10"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model
Be the first to review this product
Manufacturer: ProFace
Delivery date: 06-Jan-2026
Environmental Disclosure
Instruction sheet
User guide
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This Basic HMI panel belongs to the Pro-face ST6000 range. This single touch resistive HMI is made of alluminium front panel with higher resolution and more color. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by GP-ProEX software for easy migration. It has a 800 MHz ARM Cortex-A8 CPU, 64MB as application memory, 320KB for screen area and 64KB for variable area as backup memory. This HMI ST6000 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for GP4000 Series W model user looking for modernize their machine with the same application. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with Pro-face Connect and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face ST6000
Product or component type touch panel screen
Complementary
Memory description backup memory 320 kB, user data memory 64 MB
Display type colour TFT LCD
Display colour 16 million colours
Display size 10 inch
Type of cooling AN (air natural)
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws conforming to IEC 61000-6-2, by 4 screws conforming to IEC 61131-2, by 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 203 mm
Maximum power consumption in W 4.6 W when backlight is OFF, 9.6 W when power is not supplied to external devices, 12.6 W
Depth 47 mm
Front material aluminium
Width 273 mm
Enclosure material PC
Integrated connection type Ethernet female RJ45 10BASE-T/100BASE-TX, USB 2.0 type micro B, USB 2.0 type A, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps, COM1 serial link 1 SUB-D 9-pin female, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 1.3 kg
Display resolution 1024 x 600 pixels WSVGA
Data format 8 bits, no parity, 1 or 2 stop even or odd
Cut-out dimensions 255 x 185 mm
Inrush current 30 A
Brightness 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Maximum cycle time 10 ms
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
IP degree of protection IP65f (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA Type 1, NEMA 4X front panel (indoor use)
Vibration resistance 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Insulation resistance >= 10 MOhm
Standards KN 61000-6-2, KN 11, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Storage Relative Humidity 10-90 % non-condensing
Product certifications UKCA, RCM, IC, UL/cUL listed, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 27.700 cm
Package 1 Length 34.500 cm
Package 1 Weight 1.790 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.980 kg
