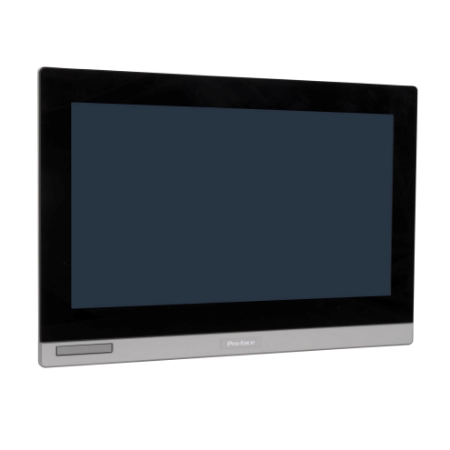

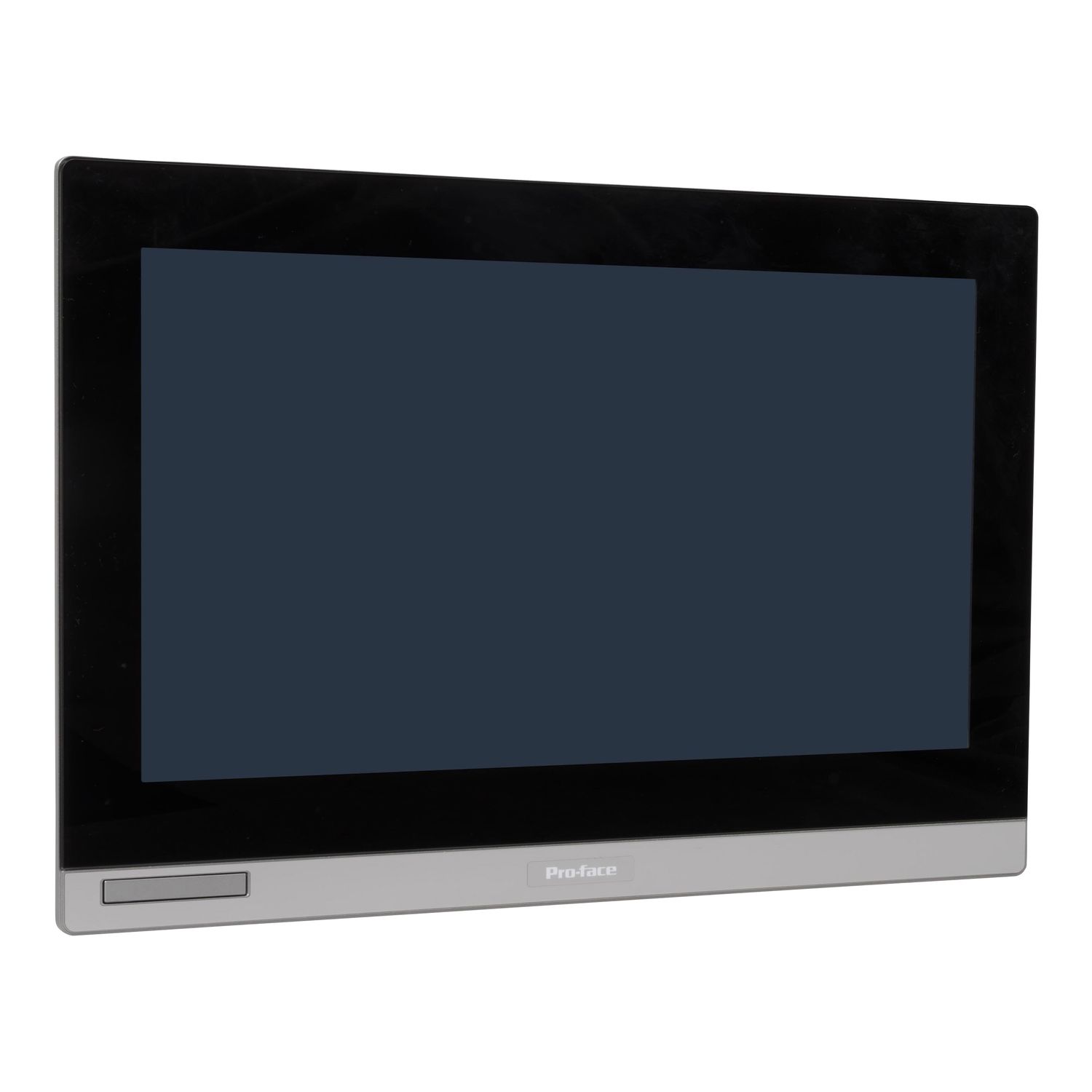

Picture of 19W touch panel display, FWXGA, PCAP, Modular, Front USB, 12-24VDC
SKU:

PFXSP5800WCD

19W touch panel display, FWXGA, PCAP, Modular, Front USB, 12-24VDC

Old price: $6,187.50 INC GST
$5,878.12 INC GST
Available for Shipping : 29-Jan-2026
19W touch panel display, FWXGA, PCAP, Modular, Front USB, 12-24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 29-Jan-2026
Environmental Disclosure
Circularity Profile
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

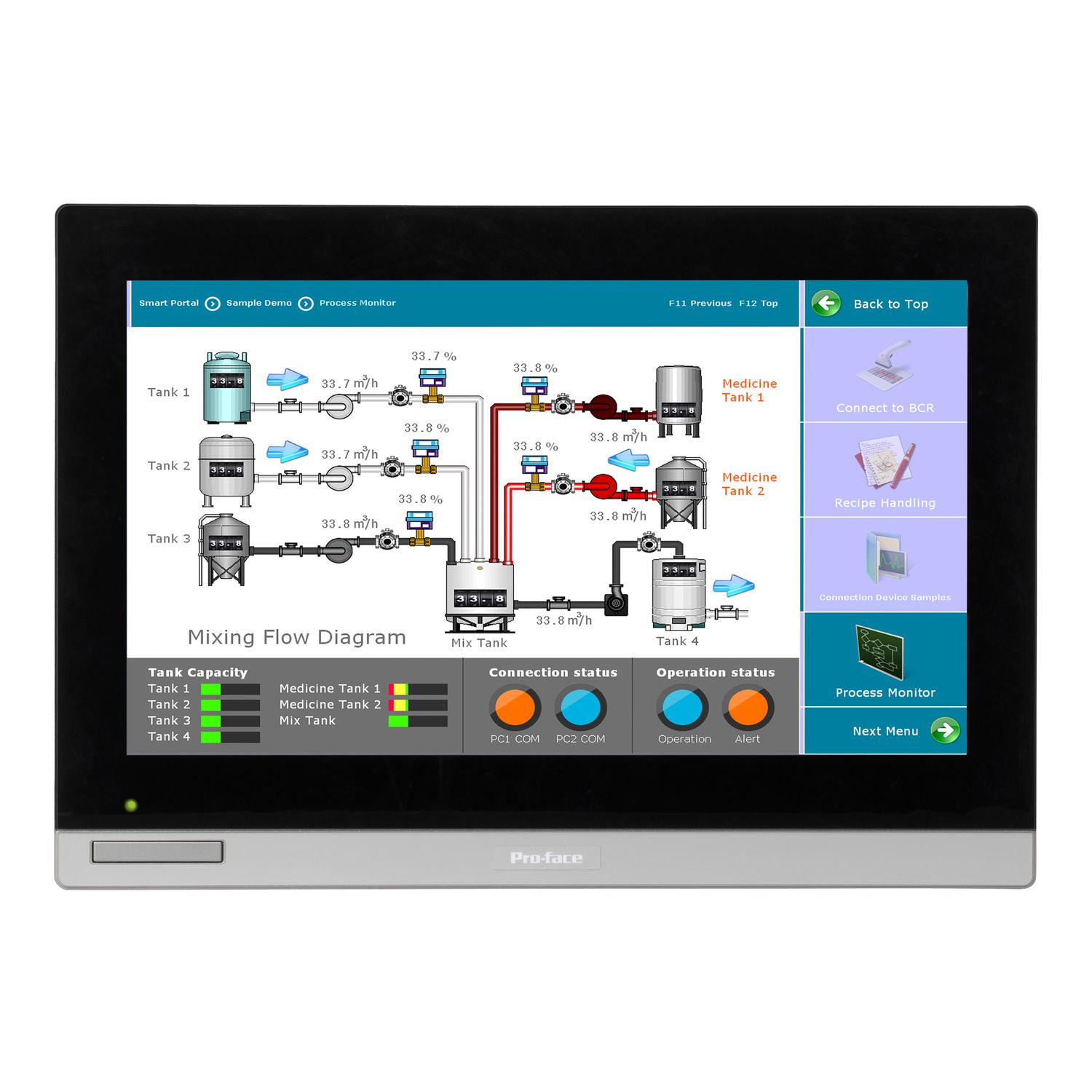

This product belongs to Pro-face Advanced HMI, SP5000 Series. SP5000 Series provides a Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution. It has a 19" TFT color LCD with 1366 x 768 pixels (FWXGA) resolution and 16 million colors. The touch panel type is a 5-point multi-touch projected capacitive. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. This product works at a power consumption of 19W and a rated voltage from 12V to 24V DC. It also offers a LED indicator and a lock button to attach the box module and display. Its dimensions are 483mm (width) x 337mm (height) x 69mm (depth) and weighs 6.8kg. It can resist permanent 60°C temperature, which makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky. It is suitable for complex machines in food/beverages, water, wastewater, mining, mineral and metal packaging, and conveying applications. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 for Industrial Control Equipment, and marine standard DNL-GL. It is also certified with ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, and IECEx / ATEX for use in zones 2/22. It supports panel mount for indoor installation.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 16 million colours
Type of cooling AN (air natural)
Input voltage limits 10.8…28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 8 screw clamps, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 337 mm
Depth 69 mm
Width 483 mm
Integrated connection type USB 2.0 type A
Touch panel multi-touch projected capactive technology (PCT)
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 6.8 kg
Display resolution 1366 x 768 pixels FWXGA
Cut-out dimensions 465 x 319 mm panel cut dimension
Inrush current 30 A
[Us] rated supply voltage 12...24 V DC
Power consumption in W 8 W, 6 W (standby), 14 W, 17 W (max (display module only)), 42 W (max (including box module))
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65f
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-55 °C
Operating altitude 2000 m
Shock resistance 147 m/s² (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Insulation resistance >= 10 MOhm
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications DNV, IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.500 cm
Package 1 Width 50.000 cm
Package 1 Length 62.000 cm
Package 1 Weight 8.087 kg
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 117.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 146.392 kg
