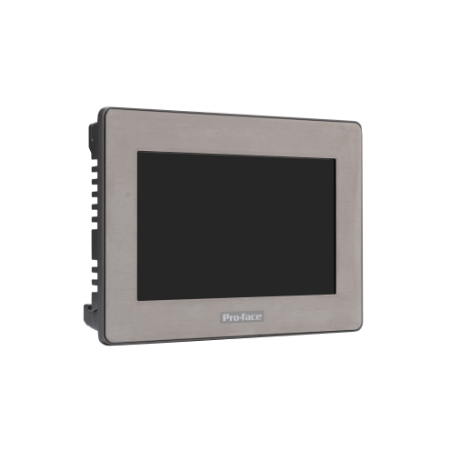

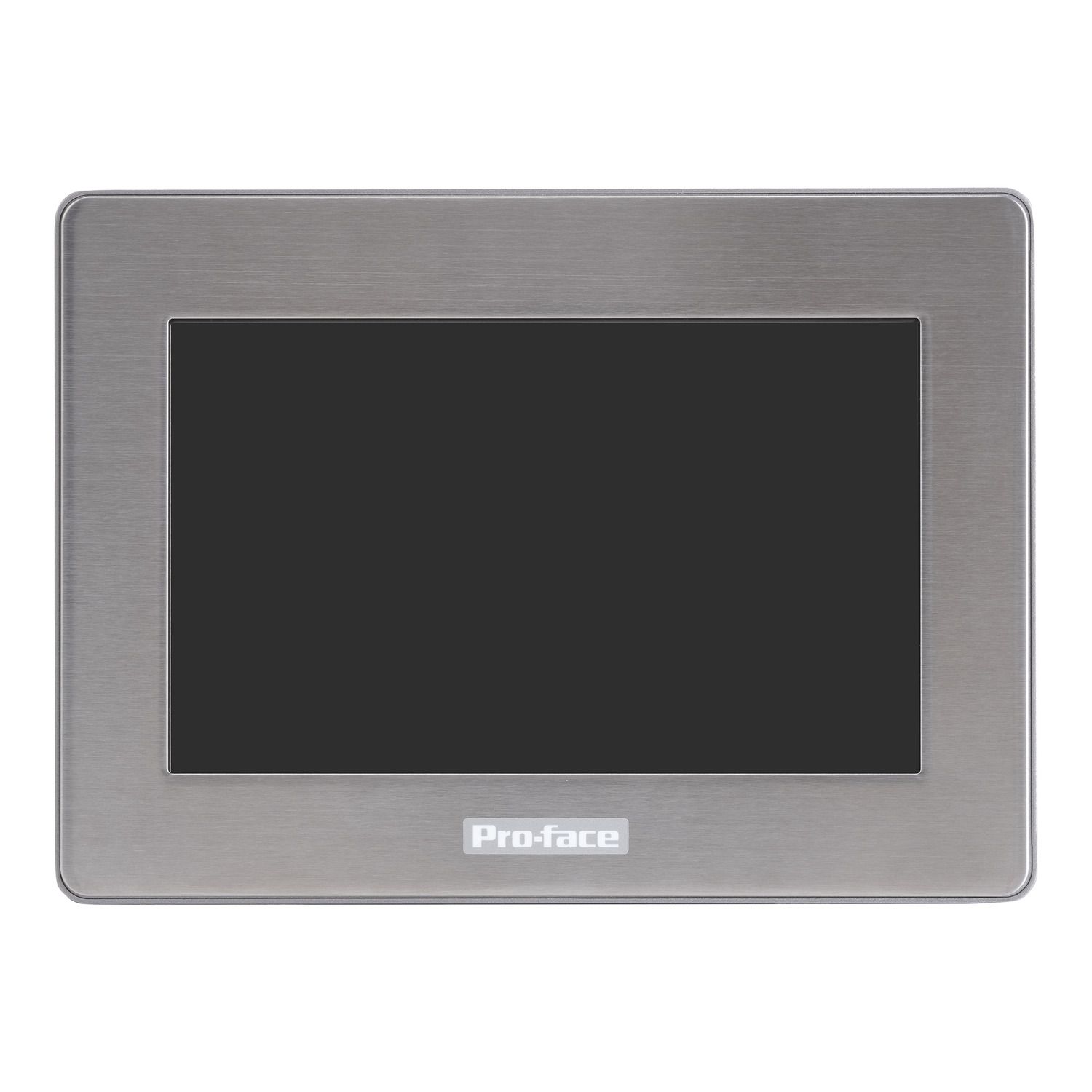

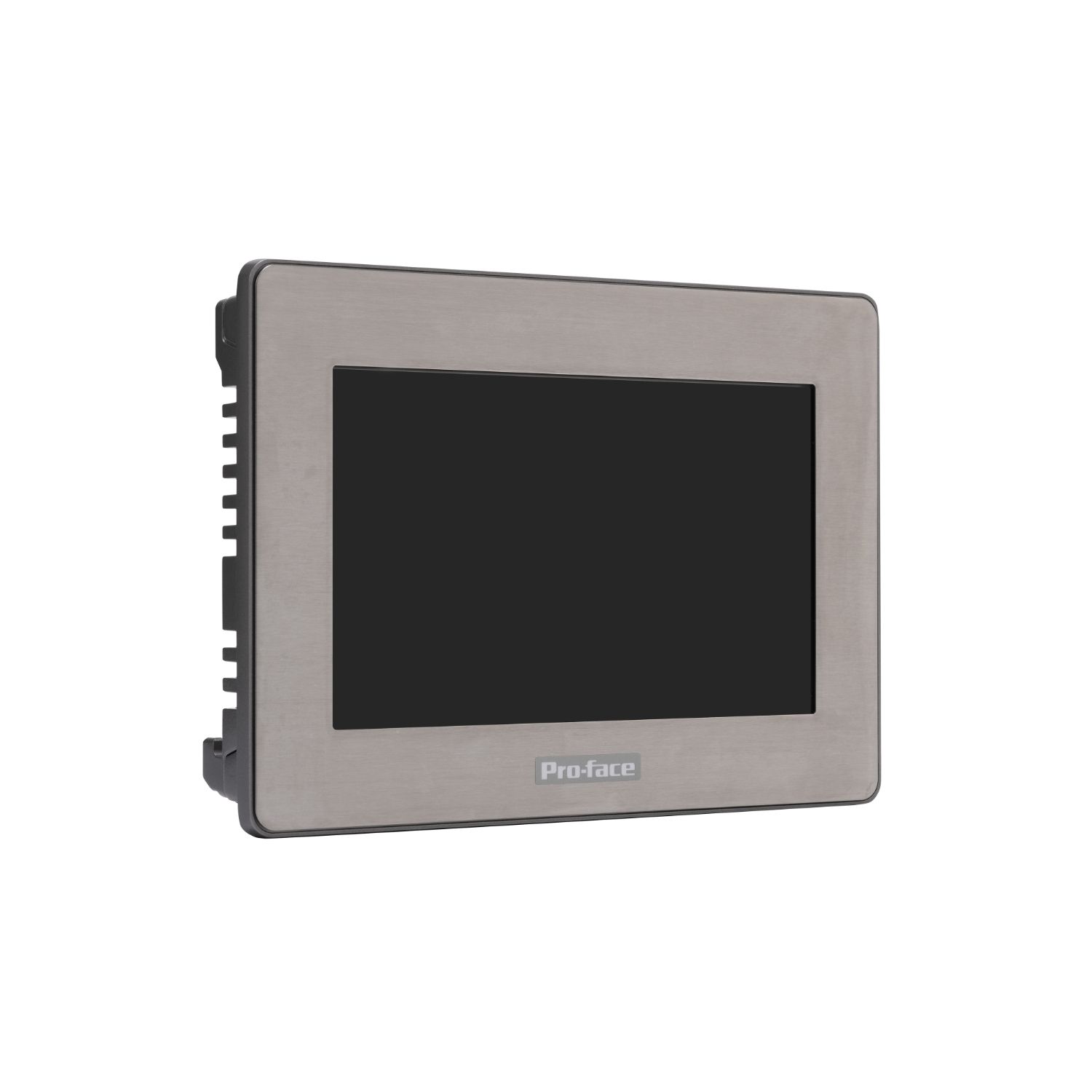

Picture of 7W Extreme touch panel display, WVGA, Analog-Single, Modular, 12-24VDC, Outdoor use
SKU:

PFXSP5490WAD

7W Extreme touch panel display, WVGA, Analog-Single, Modular, 12-24VDC, Outdoor use

Old price: $2,395.80 INC GST
$2,276.01 INC GST
Available for Shipping : 13-Jan-2026
7W Extreme touch panel display, WVGA, Analog-Single, Modular, 12-24VDC, Outdoor use
Be the first to review this product
Manufacturer: ProFace
Delivery date: 13-Jan-2026
Environmental Disclosure
User guide
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This product belongs to the Pro-face SP5000X Series, an offer of eXtreme outdoor HMI panels. These eXtreme outdoor HMI panels are a high-performance range of HMIs that are ideal for harsh outdoor environments. It features a 7" TFT color LCD (high brightness) with 800 x 480 pixels resolution (XVGA) and 262K colors. It offers atmospheric resistance with conformal coating. It can operate between temperature ranges of -30 to 65 °C. This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC. Its dimensions are 203.6mm (width) x 148.6mm (height) x 37mm (depth) and weighs 1.3 kg. This product is suitable for multiple applications under harsh environmental conditions. It can be used in special-purpose vehicles such as fire trucks and construction equipment, parking lots and gas stations, and the oil and gas industry. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control equipment. It is also certified with UL 121201 and CSA C22.2 No 213 for use in Class I, Division 2 hazardous (Classified) locations, and IECEx/ATEX for use in zones 2/22. It is compatible with PFXSP5B90 box module.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 262144 colours
Display size 7 inch
Type of cooling AN (air natural)
Input voltage limits 10.8…28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 148.6 mm
Maximum power consumption in W 29 W
Depth 37 mm
Width 203.6 mm
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 1.3 kg
Display resolution 800 x 480 pixels WVGA
Cut-out dimensions 190 x 135 mm panel cut dimension
Inrush current 30 A
Brightness 1000 cd/m2
[Us] rated supply voltage 12...24 V DC
Power consumption in W 15 W (backlight dimmed (brightness: 20%)), 12.5 W (backlight off (standby mode)), 17.5 W, 29 W
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -30-70 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP66f
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation -30-65 °C
Operating altitude 2000 m
Shock resistance 392 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 60068-2-27
Vibration resistance 7 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-6
Insulation resistance >= 10 MOhm
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 21.500 cm
Package 1 Length 26.500 cm
Package 1 Weight 1.544 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.290 kg
