SKU:

NSYSUCR4060

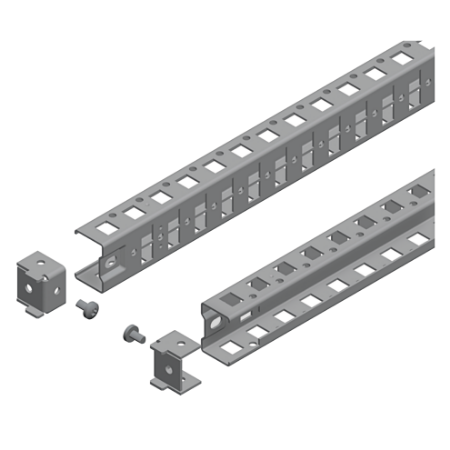

Universal cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H40 W600mm, 1 row, set of 2

Call for pricing

Availability: Please contact our sales team on 1300 724 622.

Universal cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H40 W600mm, 1 row, set of 2

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

Spacial SF/SM universal perforated cross rails. 39 mm (1 row) x 600 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.

Attribute name	Attribute value
Main
Device application	multi-purpose
Range	Spacial
Accessory / separate part category	mounting accessory
Enclosure nominal dimensions	- H: 600 mm
Product or component type	universal cross rail
Complementary
Quantity per set	set of 1
Width	40 mm
Depth	27 mm
Fixing mode	by screws
Thickness	1.5 mm
Surface finish	galvanized
Maximum load	50 kg
Adjustment	adjustable with a pitch of 25 mm
Material	steel
Mounting support	adaptation profile, on SM enclosures
Height	507 mm useful: , 600 mm nominal:
Mounting location	between cross rails, on structure of enclosure
Device composition	4 supports, 2 cross rails, fixing elements
Range compatibility	Spacial Spacial SMX, Spacial Spacial SFX, Spacial Spacial SM, Spacial Spacial SF
Number of horizontal rows	1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.5 cm
Package 1 Width	6.0 cm
Package 1 Length	51.0 cm
Package 1 Weight	1.118 kg
Unit Type of Package 2	2
Number of Units in Package 2	416
Package 2 Height	95.0 cm
Package 2 Width	100.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	482.0 kg
