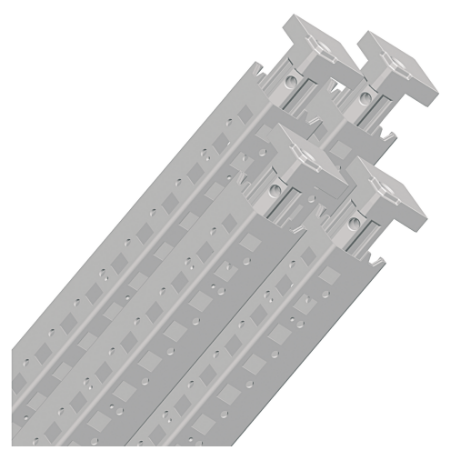

Picture of Set of 4 vertical uprights for Spacial SF enclosure. Height: 1800 mm. RAL 7035.
SKU:

NSYSFV18

Set of 4 vertical uprights for Spacial SF enclosure. Height: 1800 mm. RAL 7035.

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Set of 4 vertical uprights for Spacial SF enclosure. Height: 1800 mm. RAL 7035.
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
Steel vertical upright for framework kit, rear panel and side panel enclosures The width is 45mm The height is 1800mm The depth is 45mm The uprights are used for mounting chassis and fixing wiring accessories Fixed by screws of type M8 Anti-corrosion protection is ensured by textured epoxy polyester coating The product is made of 1 x 4 uprights This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Quantity per set set of 1
Range Spacial
Accessory / separate part category mounting accessory
Enclosure nominal dimensions -
Material steel
Device composition 4 upright
Product or component type vertical upright
Range compatibility Spacial side panel, Spacial rear panel, Spacial framework kit
Mounting support bottom frame and top frame with roof
Complementary
Width 45 mm
Depth 45 mm
Fixing mode by screws - screw type M8
Surface finish textured epoxy polyester
Height 1800 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 13.0 cm
Package 1 Length 181.5 cm
Package 1 Weight 20.3 kg
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 120 cm
Package 2 Width 200 cm
Package 2 Length 70 cm
Package 2 Weight 891 kg
