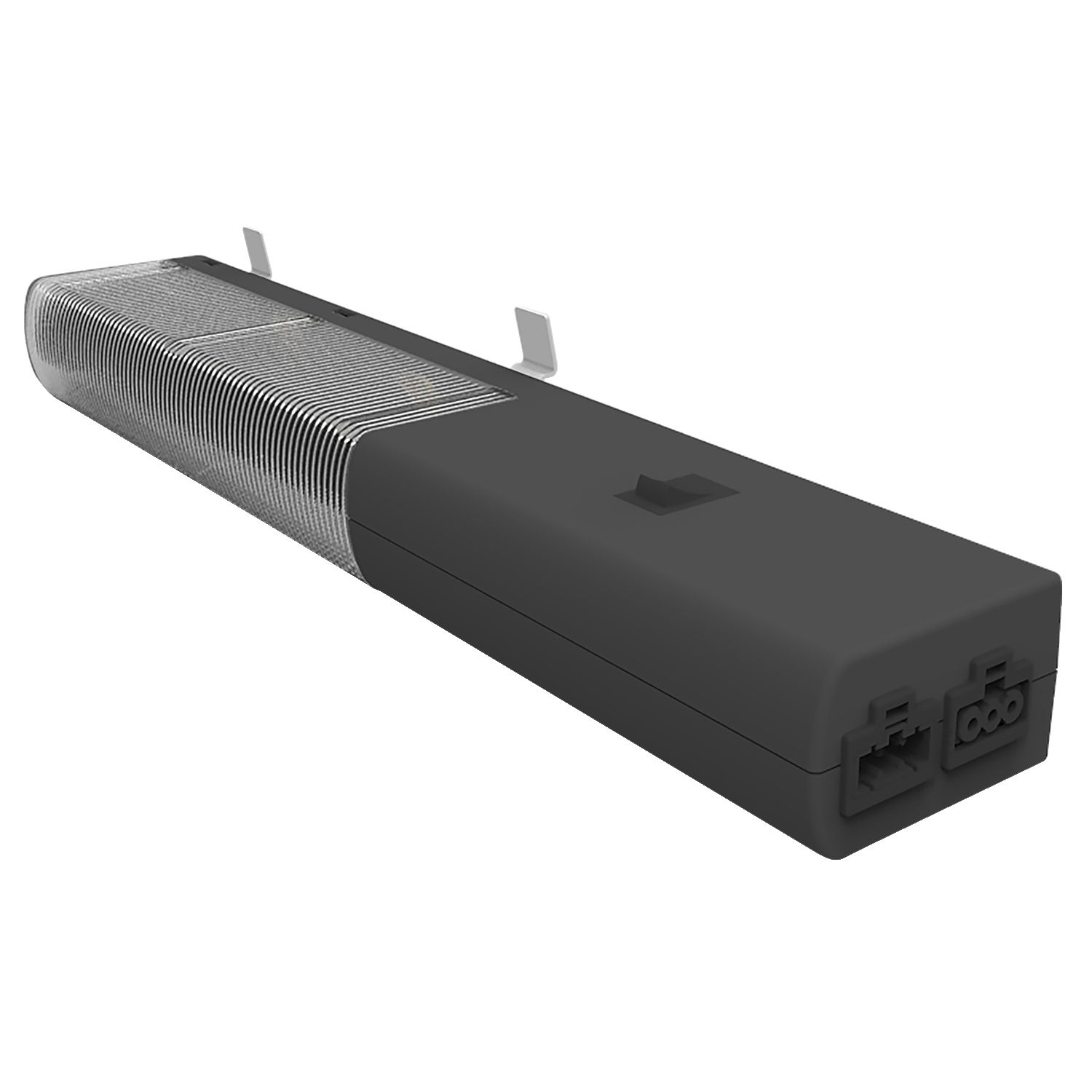

Picture of Multi-fixing LED lamp without socket - 24/48 V DC - 10W
SKU:

NSYLAMLDVDC

Multi-fixing LED lamp without socket - 24/48 V DC - 10W

Old price: $483.45 INC GST
$435.10 INC GST
Available for Shipping : 12-Jan-2026
Multi-fixing LED lamp without socket - 24/48 V DC - 10W
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Catalog
Circularity Profile
Instruction sheet
Brochure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Device composition 1 fixing elements, 1 lamp
Product or component type lamp
Accessory / separate part category lighting accessory
Power factor 1
Range of product Lighting and power sockets
Complementary
Bulb base integral LED
Width 40 mm
Colour black (RAL 9005)
Rated lamp wattage 10 W
Service life in hours 25000 h
[Ue] rated operational voltage 24/48 V DC
Luminous flux 950 lm
Bulb type LED
Control type built-it switch
Electrical connection cable quick connector 1 m not supplied, cable quick connector 3 m not supplied
Length 372 mm
Colour temperature 4000 K
Outlet standard deviation without socket
Material PC (UL94 V-0)
Fixing mode magnetic fixing, screws, clip-in
Range compatibility Thalassa, Spacial
Mounting support DIN rail, metal parts, bracket
Height 63 mm
Environment
Ambient air temperature for storage -10-60 °C
Electrical insulation class class II
IP degree of protection IP20 conforming to IEC 60529
Electromagnetic compatibility EMC immunity conforming to EN 55015
Standards UL 8750, UL 508 A, UL 94, EN 55015, IEC 60598, UL 1598, CSA C22.2 No 14-10
Ambient air temperature for operation -16-65 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 8.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 791.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 32.000 cm
Package 2 Width 42.000 cm
Package 2 Length 18.000 cm
Package 2 Weight 8.296 kg
Unit Type of Package 3 3
Number of Units in Package 3 590
Package 3 Height 178.000 cm
Package 3 Width 100.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 504.000 kg
