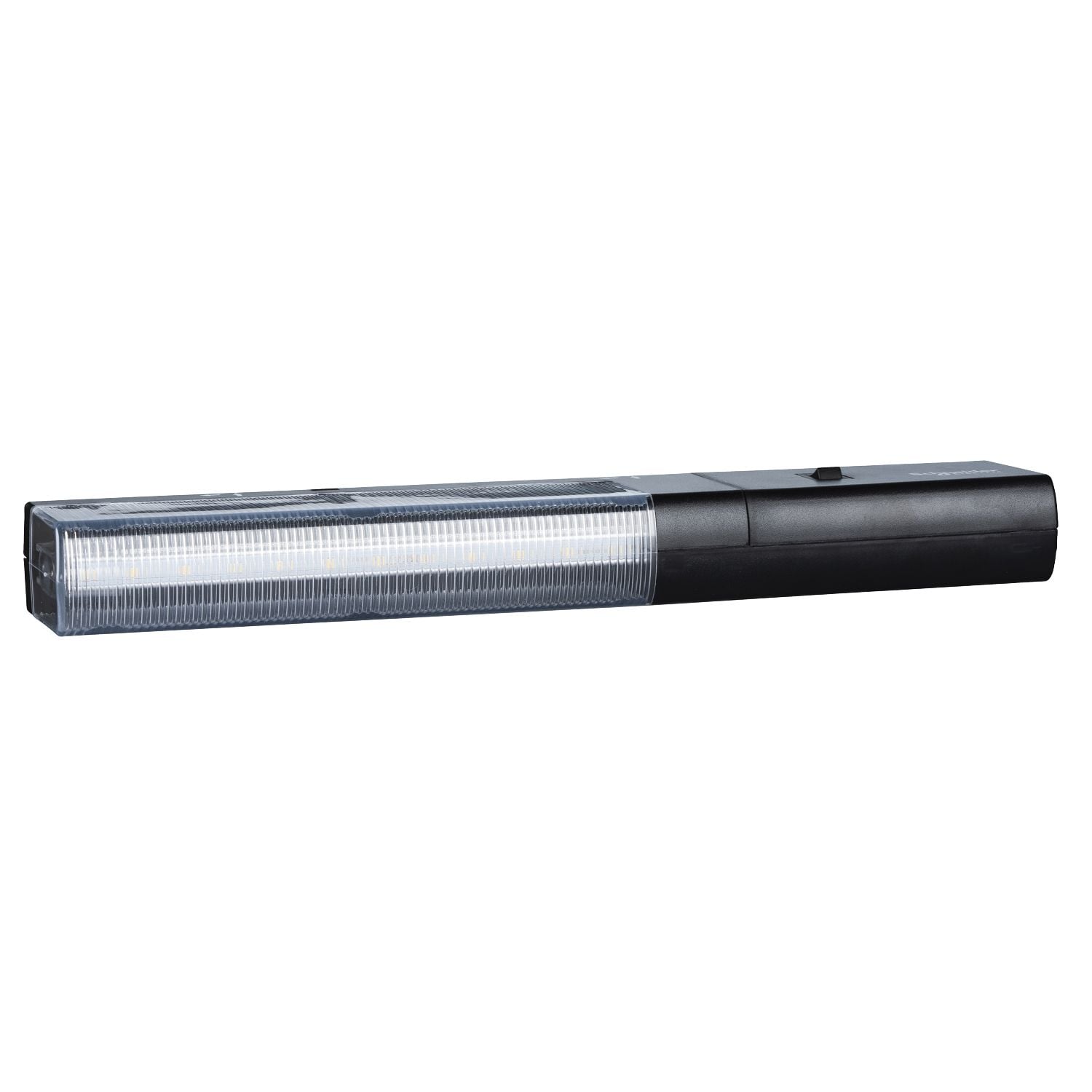

Picture of Multi-fixing LED lamp without socket - 230 V AC - 10W

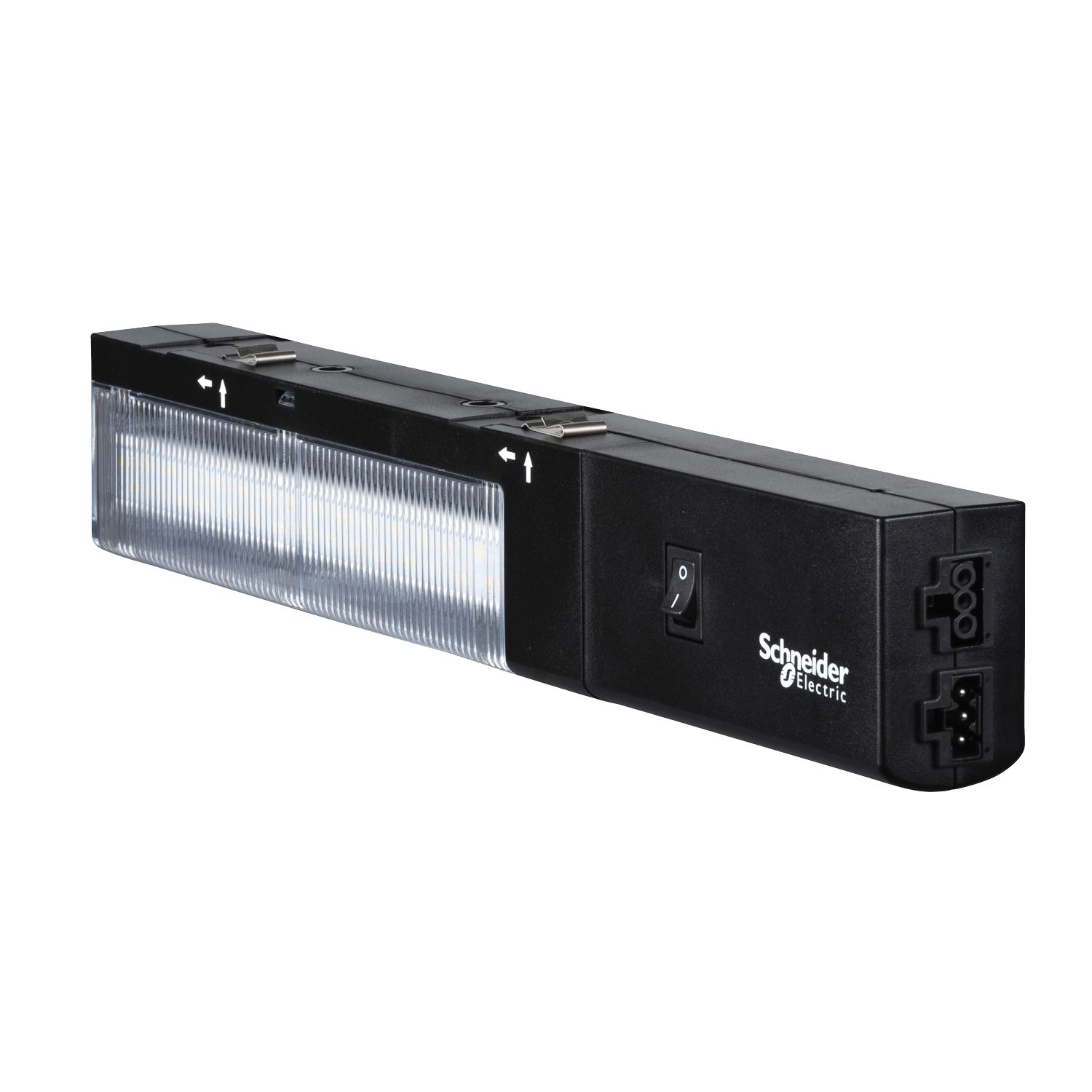

Picture of Multi-fixing LED lamp without socket - 230 V AC - 10W
Picture of Multi-fixing LED lamp without socket - 230 V AC - 10W
SKU:

NSYLAMLD

Multi-fixing LED lamp without socket - 230 V AC - 10W

Old price: $404.80 INC GST
$364.32 INC GST
Available for Shipping : 12-Jan-2026
Multi-fixing LED lamp without socket - 230 V AC - 10W
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Instruction sheet
Brochure
Product Page Link
Product Data Sheet
This Multi-fixing LED lamp without socket and with built-in switch have a power consumption of 10 W. The rated operational voltage is 120/230 V AC 50/60 Hz. The luminosity of the light is 640 lm, the light temperature is 4000 K and the LED service life is 25000 hours. The casing is made of UL94 V-0 plastic, the lamp have an IP20 resistance to water and dust and is class II electrical insulated. The dimensions of the lamp are (L) 372 mm x (W) 40 mm x (H) 63 mm. It can be fixed on brackets, DIN rails or metal parts with magnetic fixing, screws fixing or clip-in fixing. The fixing elements are delivered with the lamp. The electrical connection can be done by cable quick connector 3 m or cable quick connector 1 m, that are not supplied. The storage temperature is -10 °C to 60 °C and the operating temperature is -16 °C to 65 °C. The lamp is UL 8750, UL 94, IEC 60598, UL 1598, UL 508 A and EN 55015 certified.

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Device composition 1 fixing elements, 1 lamp
Product or component type lamp
Accessory / separate part category lighting accessory
Power factor 0.9
Range of product Lighting and power sockets
Complementary
Bulb base integral LED
Width 40 mm
Colour black (RAL 9005)
Rated lamp wattage 10 W
Service life in hours 25000 h
[Ue] rated operational voltage 120/230 V AC 50/60 Hz
Luminous flux 950 lm
Bulb type LED
Control type built-it switch
Electrical connection cable quick connector 1 m not supplied, cable quick connector 3 m not supplied
Length 372 mm
Colour temperature 4000 K
Outlet standard deviation without socket
Material PC (UL94 V-0)
Fixing mode clip-in, screws, magnetic fixing
Range compatibility Thalassa, Spacial
Mounting support metal parts, DIN rail, bracket
Height 63 mm
Environment
Ambient air temperature for storage -10-60 °C
Electrical insulation class class II
IP degree of protection IP20 conforming to IEC 60529
Electromagnetic compatibility EMC immunity conforming to EN 55015
Standards EN 55015, UL 508 A, UL 1598, IEC 60598, UL 94, UL 8750
Ambient air temperature for operation -16-65 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 40.000 cm
Package 1 Length 8.000 cm
Package 1 Weight 795.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 32.000 cm
Package 2 Width 18.000 cm
Package 2 Length 42.000 cm
Package 2 Weight 8.400 kg
Unit Type of Package 3 3
Number of Units in Package 3 590
Package 3 Height 178.000 cm
Package 3 Width 100.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 507.000 kg
