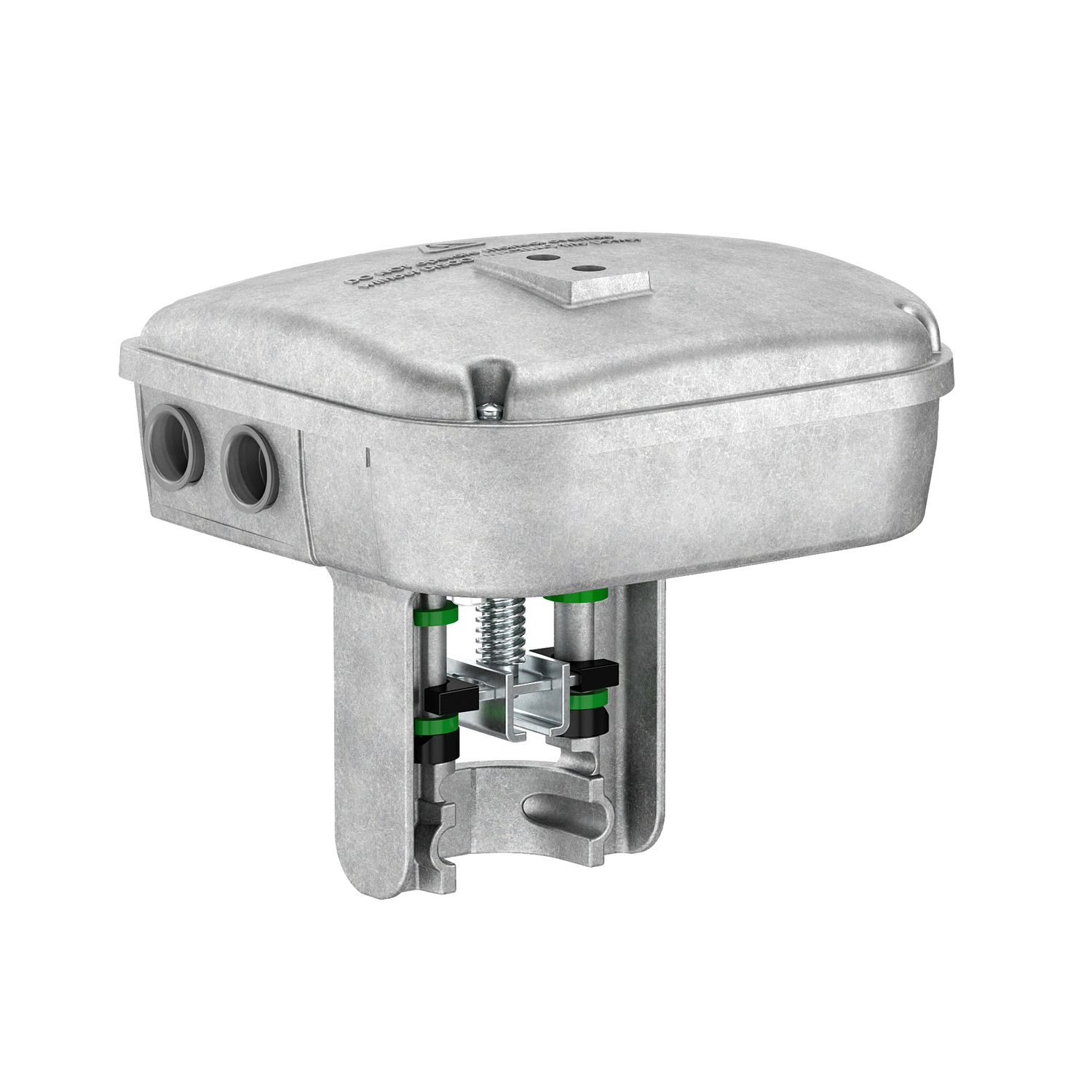

Picture of SpaceLogic MP500C-SR Actuator for PIBCV Valves, Multi-Signal Control, Spring Return DOWN (Closed Valve), 24Vac/dc, Terminal Block Conn., 500N, IP54
SKU:

MP500C-SRD

SpaceLogic MP500C-SR Actuator for PIBCV Valves, Multi-Signal Control, Spring Return DOWN (Closed Valve), 24Vac/dc, Terminal Block Conn., 500N, IP54

$1,108.14 INC GST
Available for Shipping : 26-Feb-2026
SpaceLogic MP500C-SR Actuator for PIBCV Valves, Multi-Signal Control, Spring Return DOWN (Closed Valve), 24Vac/dc, Terminal Block Conn., 500N, IP54
  • Actuator for the VP220x PIBCV valves
  • Spring Return function closes the valve upon power failure
  • Field selectable configuration
  • Selectable input signals: 0..10 Vdc, 2..10 Vdc, 0..5 Vdc, 2-6 Vdc, 5-10 Vdc, 6-10 Vdc
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) available as an optional accessory
  • High resolution / positional accuracy
  • One touch stroke calibration
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Feb-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
MP500C is an linear electro-mechanical actuator for the control of the VP220 SpaceLogic PIBCV, DN40-100. MP500C is controlled either by an increase/decrease floating signal or by a range of modulating control signals between the span of 0…10V. Working range and end point switches calibrate to any stroke and flow setting of the valve. Multi-signal control for either 3 point increase/decrease signal or various modulating control signals including sequencing. Supply Voltage: 24 Vac +/- 10%, 24 Vdc +/- 15%. Thrust: 500N. Enclosure rating IP52 (NEMA 2). EMC 2004/108/CE.

Products specifications

Attribute name Attribute value
Main
Product destination pressure independent control valves
Transformer rated power in VA 50 VA
Motor type brushless DC motor
Product or component type actuator
Power consumption in VA 30 VA AC
Targeted region Australia., North America., Asia Pacific., Europe
Complementary
Force N 500 N
Switch function 2 SPDT (optional)
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class III
Control type automatic reset
Analogue input range 0...10 V DC
Stroke running time 30 s
Force lbf 113 lbf
Actuator linear
Environment
IP degree of protection IP54
Relative humidity 0-90 % RH, non-condensing
Ambient air temperature for storage -25-65 °C
Ambient air temperature for operation -10-50 °C
Control signal proportional/modulating, floating
Conduit connection conduit connector holes
Leads and connections terminal block
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series MP500C-SR
Power loss return spring return
Feedback signal 0...5 V DC, 2...10 V DC
Stroke auto calibration True
Additional features field selectable floating input signal travel time
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 21.5 cm
Package 1 Length 15.4 cm
Package 1 Weight 3.605 kg

Related products

Picture of SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN65, Flanged, Standard Flow: 8...20 m³/h (2.2...5.6 l/s).

SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN65, Flanged, Standard Flow: 8...20 m³/h (2.2...5.6 l/s).

VP220F-65CQS
$5,525.52 INC GST
View Detail
Picture of SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN80, Flanged, Standard Flow: 11.2...28 m³/h (3.1...7.8 l/s).

SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN80, Flanged, Standard Flow: 11.2...28 m³/h (3.1...7.8 l/s).

VP220F-80CQS
$7,899.92 INC GST
View Detail

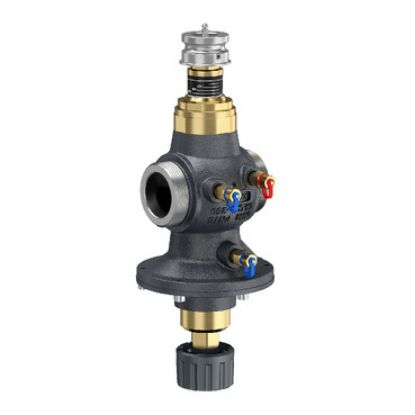

Picture of SpaceLogic VP220E PIBCV (PICV), 2-Way, PN16, G2 External Thread, DN40, 3.0...7.5 m³/h, 0.8…2.08 l/s.

SpaceLogic VP220E PIBCV (PICV), 2-Way, PN16, G2 External Thread, DN40, 3.0...7.5 m³/h, 0.8…2.08 l/s.

VP220E-40CQS
$1,844.37 INC GST
View Detail

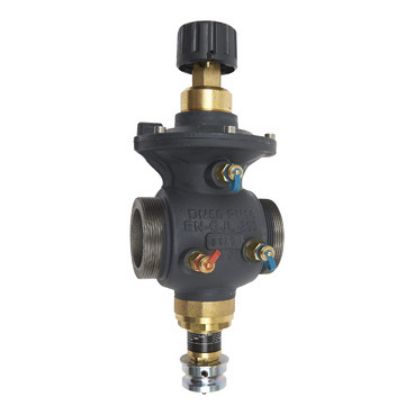

Picture of SpaceLogic VP220E PIBCV (PICV), 2-Way, PN16, G2-1/2 External Thread, DN50 , 5.0...12.5 m³/h, 1.4…3.47 l/s.

SpaceLogic VP220E PIBCV (PICV), 2-Way, PN16, G2-1/2 External Thread, DN50 , 5.0...12.5 m³/h, 1.4…3.47 l/s.

VP220E-50CQS
$2,107.49 INC GST
View Detail

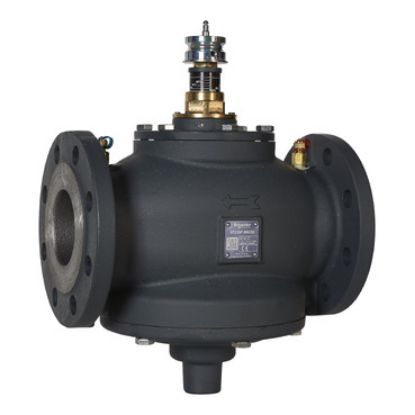

Picture of SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN100, Flanged, Standard Flow: 15.2...38 m³/h (4.2...10.6 l/s).

SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN100, Flanged, Standard Flow: 15.2...38 m³/h (4.2...10.6 l/s).

VP220F-100CQS
$9,209.20 INC GST
View Detail

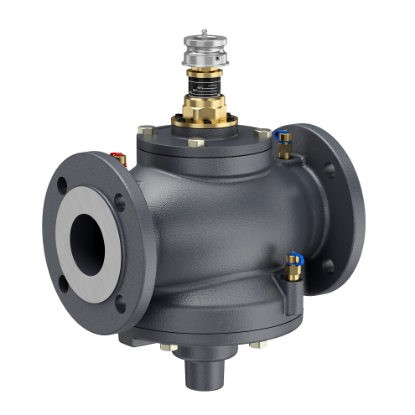

Picture of SpaceLogic VP220F PIBCV (PICV), 2-Way, PN16, DN50, Flanged, Standard Flow: 5.0...12.5 m³/h (1.4...3.5 l/s).
