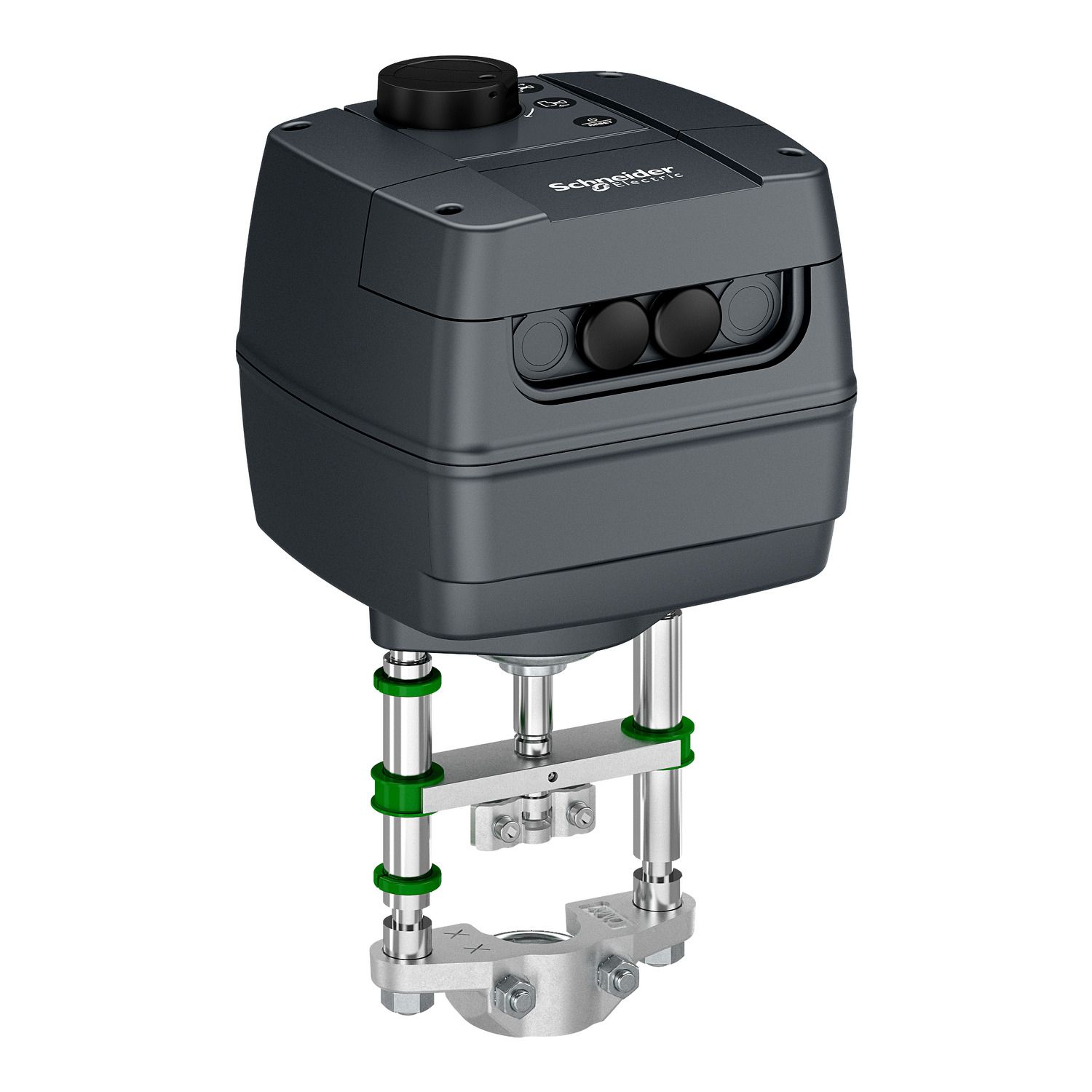

Picture of SpaceLogic MP2000-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Normally Closed), 24Vac/dc, 2000N, 2xSPDT, IP54
SKU:

MP2000-SRD

SpaceLogic MP2000-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Normally Closed), 24Vac/dc, 2000N, 2xSPDT, IP54

$4,500.87 INC GST
Available for Shipping : 28-Jan-2026
SpaceLogic MP2000-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Normally Closed), 24Vac/dc, 2000N, 2xSPDT, IP54
  • These multi-signal actuators can be configured to all common input signals
  • Auto stroke calibration
  • LED status indicators
  • Manual or Electronic Override
  • Linear to EQ flow curve adaptation
  • Fits to VP221x PIBCV Valves (DN125...150 / 5"...6")
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
The MP2000 spring return safety function is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.

Products specifications

Attribute name Attribute value
Main
Product destination pressure independent control valves
Product or component type actuator
Power consumption in VA 15 VA AC
Targeted region Australia., North America., Asia Pacific., Europe
Complementary
Force N 2000 N
Switch function 1 SPDT
Stroke running time 6 s
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Control type automatic reset
Stroke length 50-50 mm
Analogue input range 0...10 V DC
Force lbf 450 lbf
Actuator linear
Environment
IP degree of protection IP54
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 0-55 °C
Power loss return spring return
Feedback signal 4...20 mA DC, 0...20 mA DC, 2...10 V DC, 0...10 V DC
Control signal proportional/modulating, floating
Stroke auto calibration True
Conduit connection conduit connector holes
Leads and connections terminal block
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series MP2000-SR
Position indicator Stroke indicator on bracket
Additional features LED status indicator
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.8 cm
Package 1 Width 41.8 cm
Package 1 Length 20.1 cm
Package 1 Weight 8.6 kg
