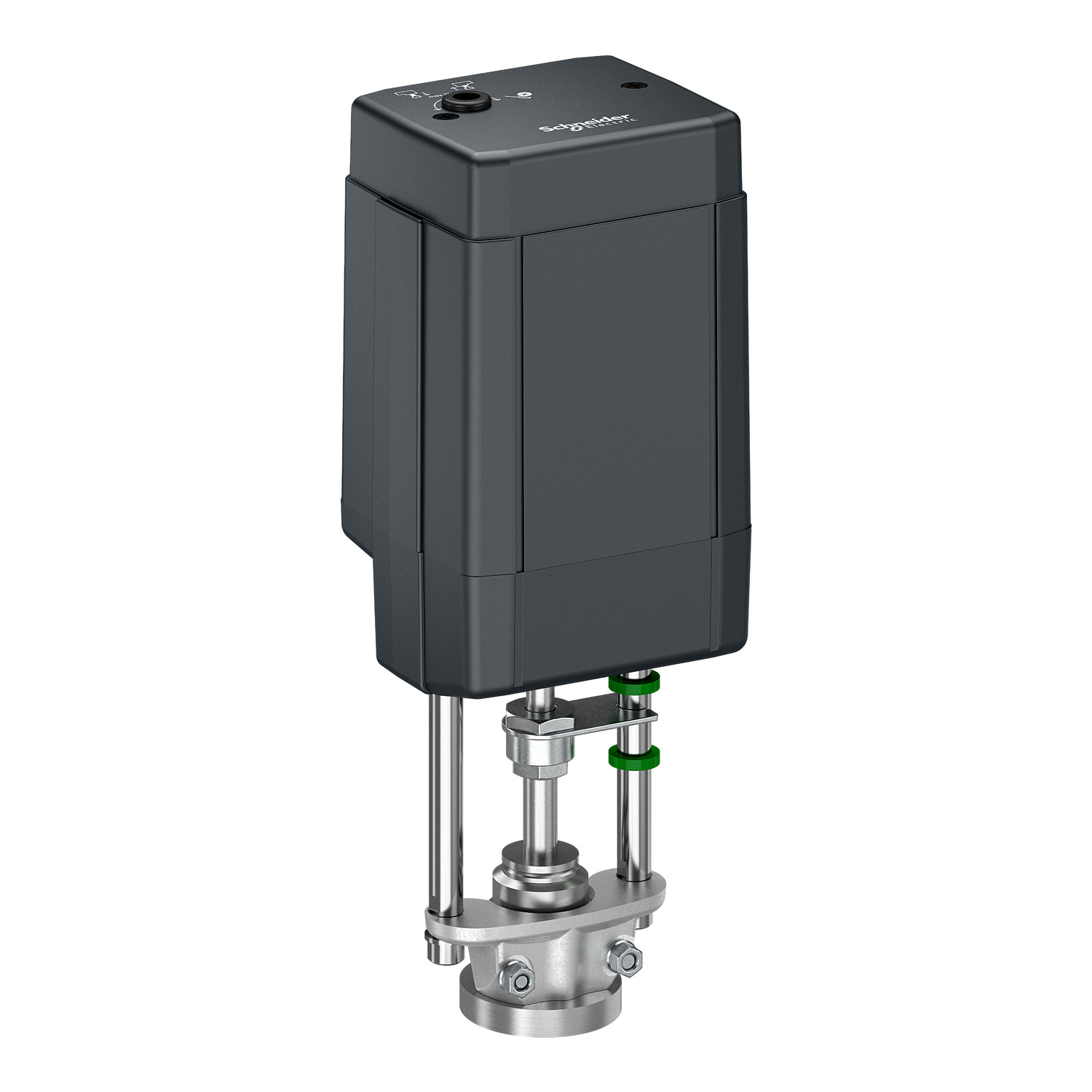

Picture of SpaceLogic MP2000 Actuator, Multi-signal control, Non-Spring Return, 24Vac, 2000N, Terminal block connection, IP54
SKU:

MP2000

SpaceLogic MP2000 Actuator, Multi-signal control, Non-Spring Return, 24Vac, 2000N, Terminal block connection, IP54

$2,641.32 INC GST
Available for Shipping : 03-Feb-2026
SpaceLogic MP2000 Actuator, Multi-signal control, Non-Spring Return, 24Vac, 2000N, Terminal block connection, IP54
  • These multi-signal actuators can be configured to all common input signals
  • Auto stroke calibration
  • LED status indicators
  • Manual Override
  • Fits to VP221x PIBCV Valves (DN125...150 / 5"...6")
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
The MP2000 is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.

Products specifications

Attribute name Attribute value
Main
Product destination pressure independent control valves
Product or component type actuator
Power consumption in VA 9 VA AC
Targeted region Australia., Asia Pacific., Europe
Complementary
Force N 2000 N
Switch function 2 SPDT
Stroke running time 8 s
[Us] rated supply voltage 24 V AC
Electrical insulation class class III
Control type automatic reset
Stroke length 40-40 mm
Analogue input range 0...10 V DC
Force lbf 450 lbf
Actuator linear
Environment
IP degree of protection IP54
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 0-55 °C
Power loss return non-spring return
Actuator model MP2000
Feedback signal 2...10 V DC, 0...10 V DC
Control signal proportional/modulating
Stroke auto calibration True
Conduit connection conduit connector holes
Leads and connections terminal block
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series MP2000
Position indicator Stroke indicator on bracket
Additional features LED status indicator
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.5 cm
Package 1 Width 11.6 cm
Package 1 Length 15.0 cm
Package 1 Weight 3.8 kg
