SKU:

MP130-24MP-10M

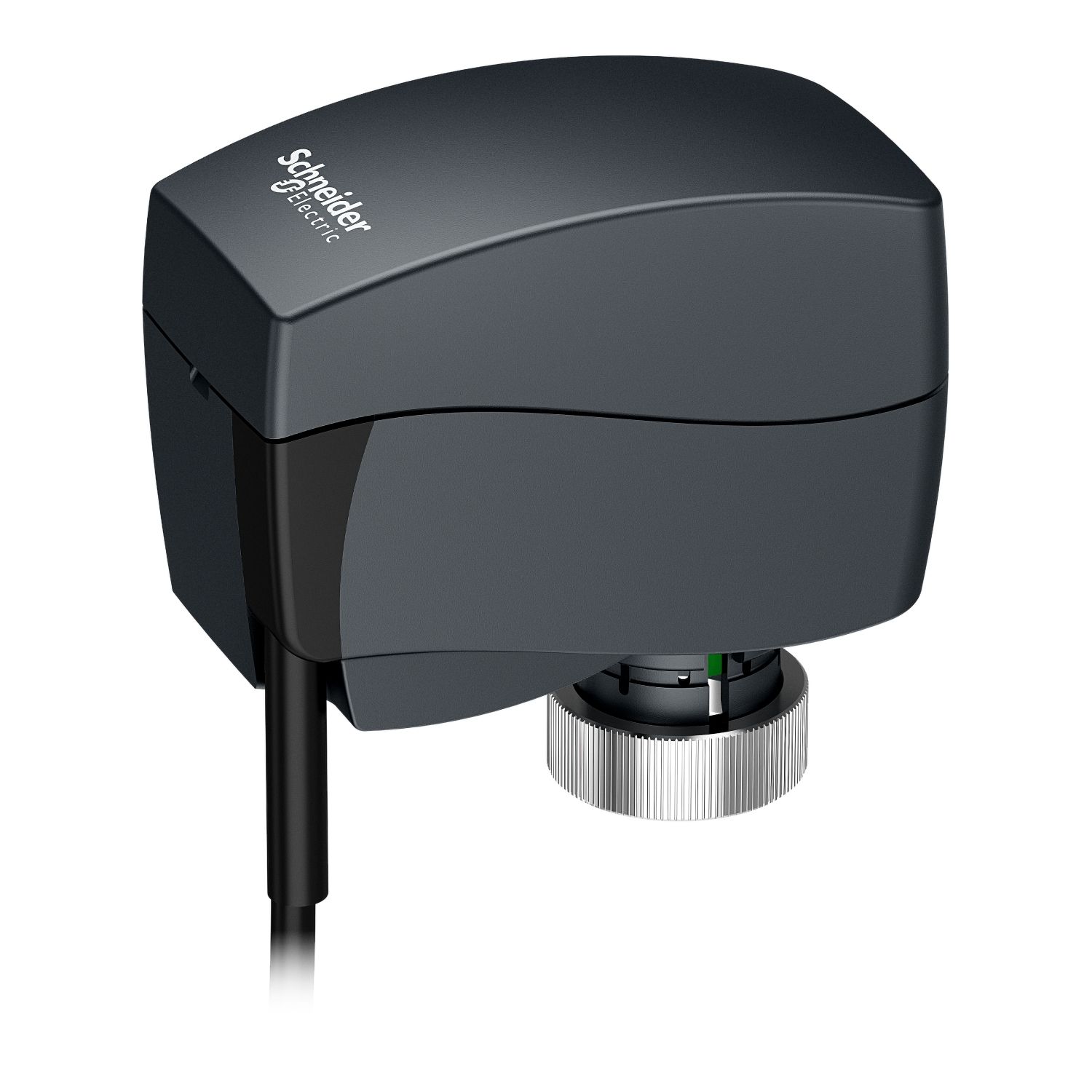

SpaceLogic MP130 PIBCV Actuator, Modulating, Non-Spring Return, 24 Vac, 130N, IP42, Feedback Position Signal, 10m cable.

$409.80
Availability: Please contact our sales team on 1300 724 622.
SpaceLogic MP130 PIBCV Actuator, Modulating, Non-Spring Return, 24 Vac, 130N, IP42, Feedback Position Signal, 10m cable.
  • The MP130-24MP-10M calibrates to the precise stroke(flow setting) of the PIBCV Valve
  • 10 m cable for long runs
  • Position feedback model
  • Compact construction
  • Manual Override
  • Quiet Operation
  • For VP228E / VP229E PIBCV Valves
Manufacturer: Schneider Electric
The MP130-24M is a proportional actuators for the SpaceLogic PIBCV (DN10-32) automatic balance and control valves. This actuator is used with fan coil units, induction units, small reheaters, recoolers and zone applications in which hot/cold water is the controlled medium. Gap detection stem up position, Modulating control, Force switch-off at stem down position prevents overload of actuator and valve. Maintenance-free lifetime. Power Supply: 24 Vac +1%...-15%. Close of Force: 13 N. Protection code IP42, III safety extra-low voltage protection class. Max. Stroke 5 mm. LVD: 26/95/EC.
