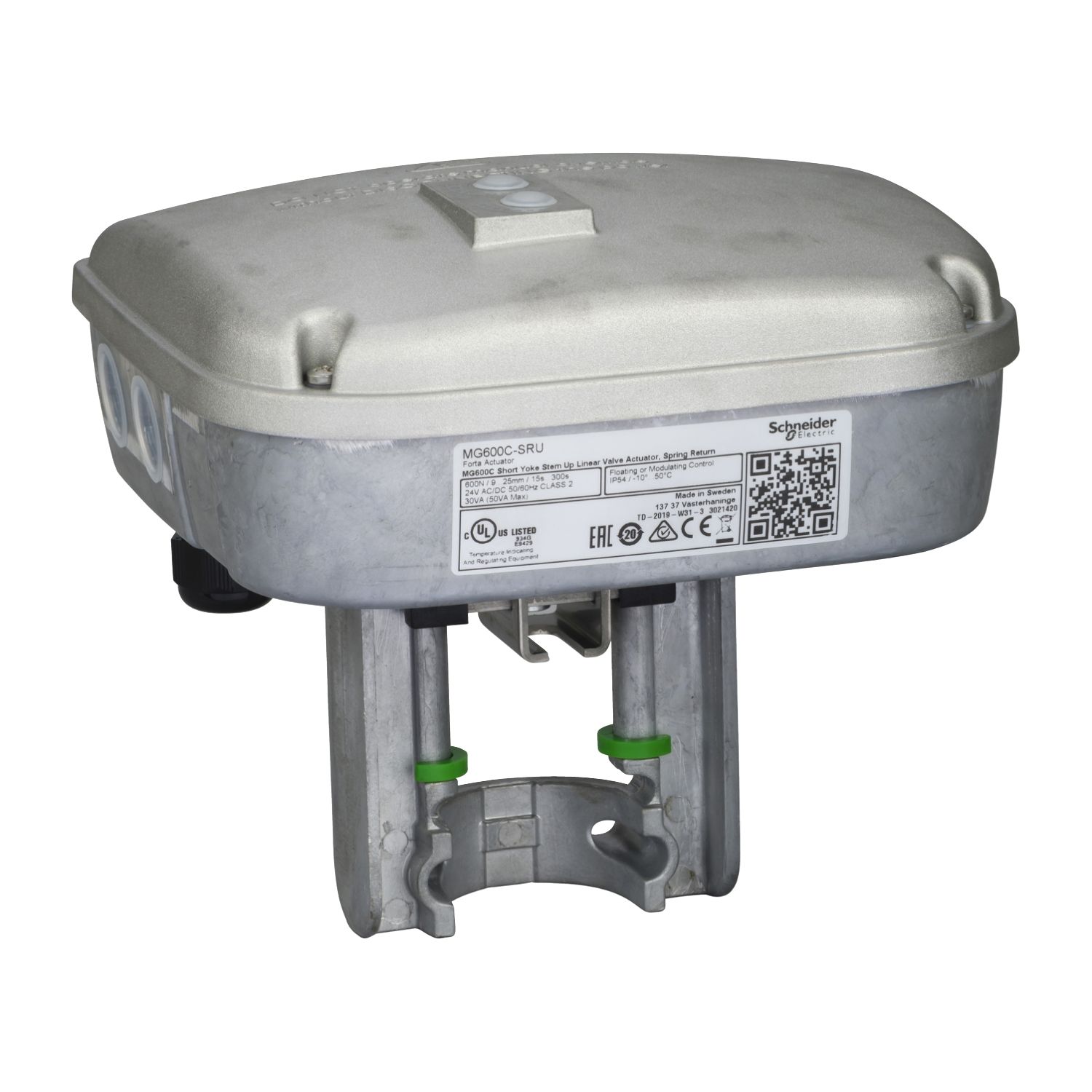

Picture of SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return UP, 24Vac/dc, Terminal Block Connection, 600N, IP54
SKU:

MG600C-SRU

SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return UP, 24Vac/dc, Terminal Block Connection, 600N, IP54

$1,244.76 INC GST
Available for Shipping : 01-Feb-2026
SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return UP, 24Vac/dc, Terminal Block Connection, 600N, IP54
  • Actuator for the VG210R / VG310R Globe Valves
  • Spring Return function closes the valve upon power failure
  • Selectable input signals: 0..10 Vdc, 2..10 Vdc, 0..5 Vdc, 2-6 Vdc, 5-10 Vdc, 6-10 Vdc
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) available as an optional accessory
  • Replaceable circuit board
  • High resolution / positional accuracy
  • One touch stroke calibration
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Feb-2026
Circularity Profile
Instruction sheet
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
The MG600C-SRU is a linear eletro-mechanicl actuator with spring return operation for the control of the two-way VG210R, and three way VG310R, globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Spring return stem UP (Retract) on loss of power. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.

Products specifications

Attribute name Attribute value
Main
Force N 600 N
Switch function 2 SPDT (optional)
Hold-in power consumption in W 7-7 W
Material EPDM: O-rings, reinforced teflon: seal
Stroke running time 15 s
IP degree of protection IP54
Relative humidity 0-90 %
Motor type brushless DC motor
Ambient air temperature for storage -10-50 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Product destination globe valve
Control type automatic reset
Duty cycle 20 %
Product or component type actuator
Transformer rated power in VA 50 VA
Targeted region Australia., Asia Pacific., Europe
Stroke length 9-32 mm
Power consumption in W 21 W
Analogue input range 0...10 V DC
Force lbf 135 lbf
Actuator linear
Ambient air temperature for operation -10-50 °C
Power loss return spring return
Actuator model MG600C-SR
Feedback signal 2...10 V DC
Control signal proportional/modulating, floating
Stroke auto calibration True
Conduit connection gland for 6-9 mm O/D cable, 3 x M20
Leads and connections terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series MG600C
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23 cm
Package 1 Width 22.6 cm
Package 1 Length 31.6 cm
Package 1 Weight 3.4 kg

Related products

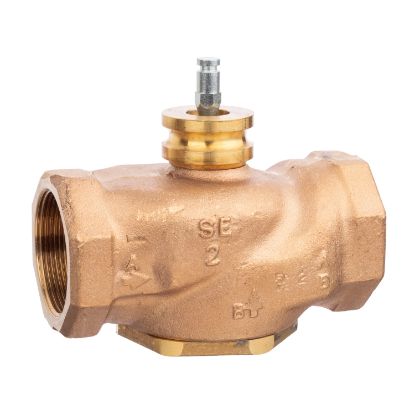

Picture of VG210R Globe Valve, 2-Way, DN50, Rp 2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 35 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN50, Rp 2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 35 m³/h, Stem Up Closed.

VG210R-50B
$1,234.64 INC GST
View Detail
Picture of VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 0.4 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 0.4 m³/h, Stem Up Closed.

VG210R-15B02
$411.12 INC GST
View Detail
Picture of VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 0.63 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 0.63 m³/h, Stem Up Closed.

VG210R-15B03
$555.97 INC GST
View Detail

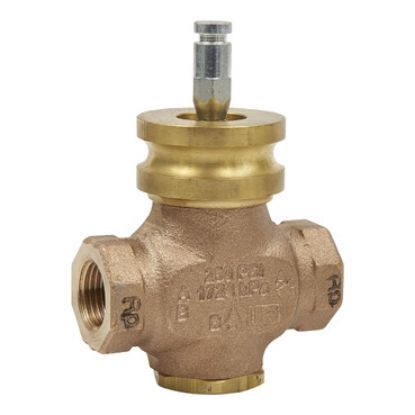

Picture of VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 1.0 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 1.0 m³/h, Stem Up Closed.

VG210R-15B04
$555.97 INC GST
View Detail
Picture of VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 1.6 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 1.6 m³/h, Stem Up Closed.

VG210R-15B05
$555.97 INC GST
View Detail
Picture of VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 2.5 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 2.5 m³/h, Stem Up Closed.

VG210R-15B07
$555.97 INC GST
View Detail
Picture of VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 4.0 m³/h, Stem Up Closed.

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 4.0 m³/h, Stem Up Closed.

VG210R-15B08
$555.97 INC GST
View Detail

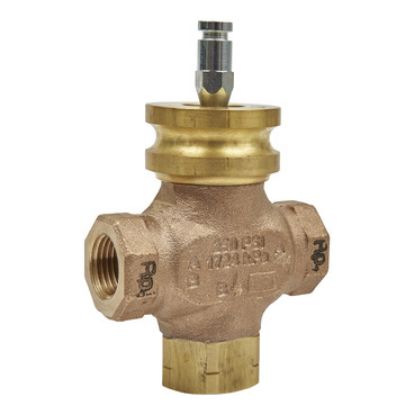

Picture of VG310R Globe Valve, 3-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 1.6 m³/h, Stem Up Closed A-AB.
