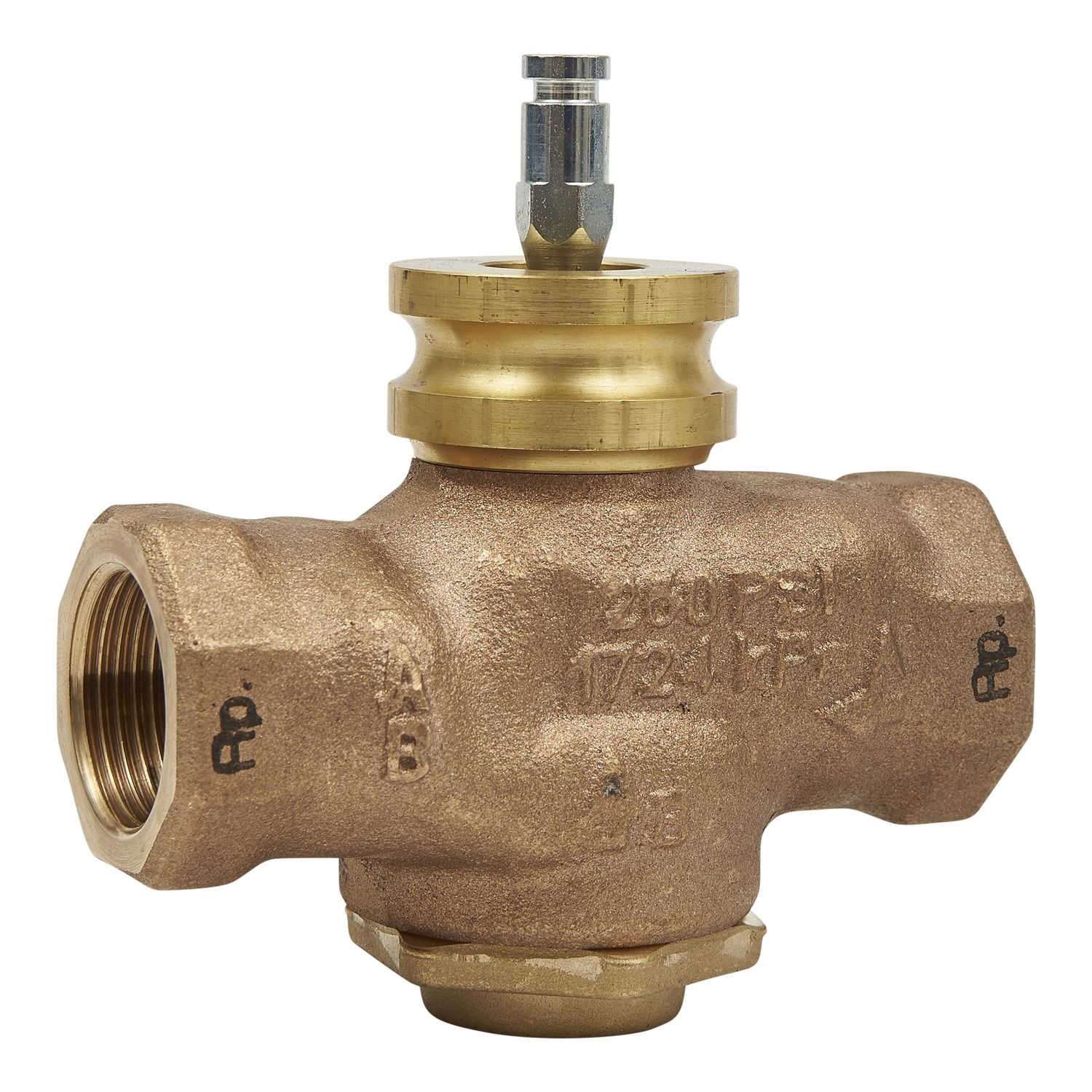

Picture of VG210R Globe Valve, 2-Way, DN25, Rp 1 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 10 m³/h, Stem Up Closed.
SKU:

VG210R-25B

VG210R Globe Valve, 2-Way, DN25, Rp 1 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 10 m³/h, Stem Up Closed.

$611.57
Available for Shipping : 10-Oct-2024
VG210R Globe Valve, 2-Way, DN25, Rp 1 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 10 m³/h, Stem Up Closed.
  • Compact globe valve design for space saving installations, especially with MG350C actuator
  • Maintenance free triple temp packing provides reliable leak free service for many years
  • Unique Integral seat seal provides tight close off and very low inlet jump
  • High rangeability 100:1
  • Oshalloy Bronze construction with low lead content
  • Direct fit to the SpaceLogic MG350 and MG600C(-SR) actuators
  • PN16, 400 kPa ∆Pm
  • Kvs 10 m³/h, EQ flow characteristics
  • Replacement Packing kit: YBA-689-C
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
The VG210 is a high pressure (PN16) 2-way flanged globe valve for a wide range of heating and cooling applications. The valve use a stainless steel plug for high close off pressures with a low actuator force. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 100:1 and is of a self cleaning design for reliable operation. Valve size: DN25, Rp 1 thread, Flow capacity, Kvs: 10 m³/h. Constructed and flanged to a PN16 pressure class. PTFE Seals provide a working temperature range of -7 °C to 137 °C. 11 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -7-135 °C
Body material CDA 83450 Oshalloy, ASTM B584, bronze
Satured steam pressure delta P 35 psi
Saturated steam temperature -7-135 °C
Seating seal material Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %), Port A: Class IV (0.01 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size Rp 1
Seat material Port A: bronze
Valve product range Venta
Medium compatibility Water, Steam, Glycol 60 %, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 100:1
Plug material Brass UNS C36000
Valve product series VG210R
Flow coefficient 10 kvs, 11.56 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 58 psi
Valve type globe
Valve model VG210R 25B 10E SU 00
Packing material PTFE (polytetrafluoroethylene), EPDM (ethylene propylene diene monomer)
Valve connection type Rp Internal
Stem seal material PTFE (polytetrafluoroethylene), EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stroke length 11 mm
Stem material stainless steel 316Ti
Pipe size 25 mm
Pressure class PN16
Body size 25 mm (1 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 18.4 cm
Package 1 Length 13.3 cm
Package 1 Weight 1.71 kg
