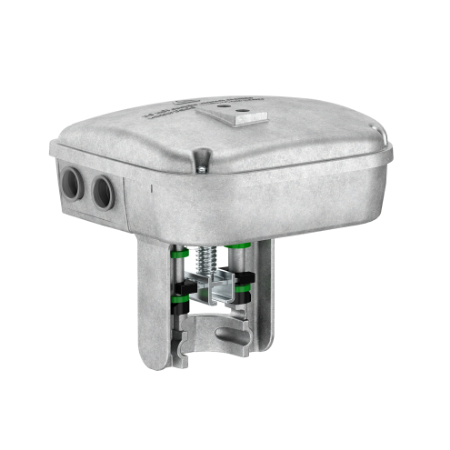

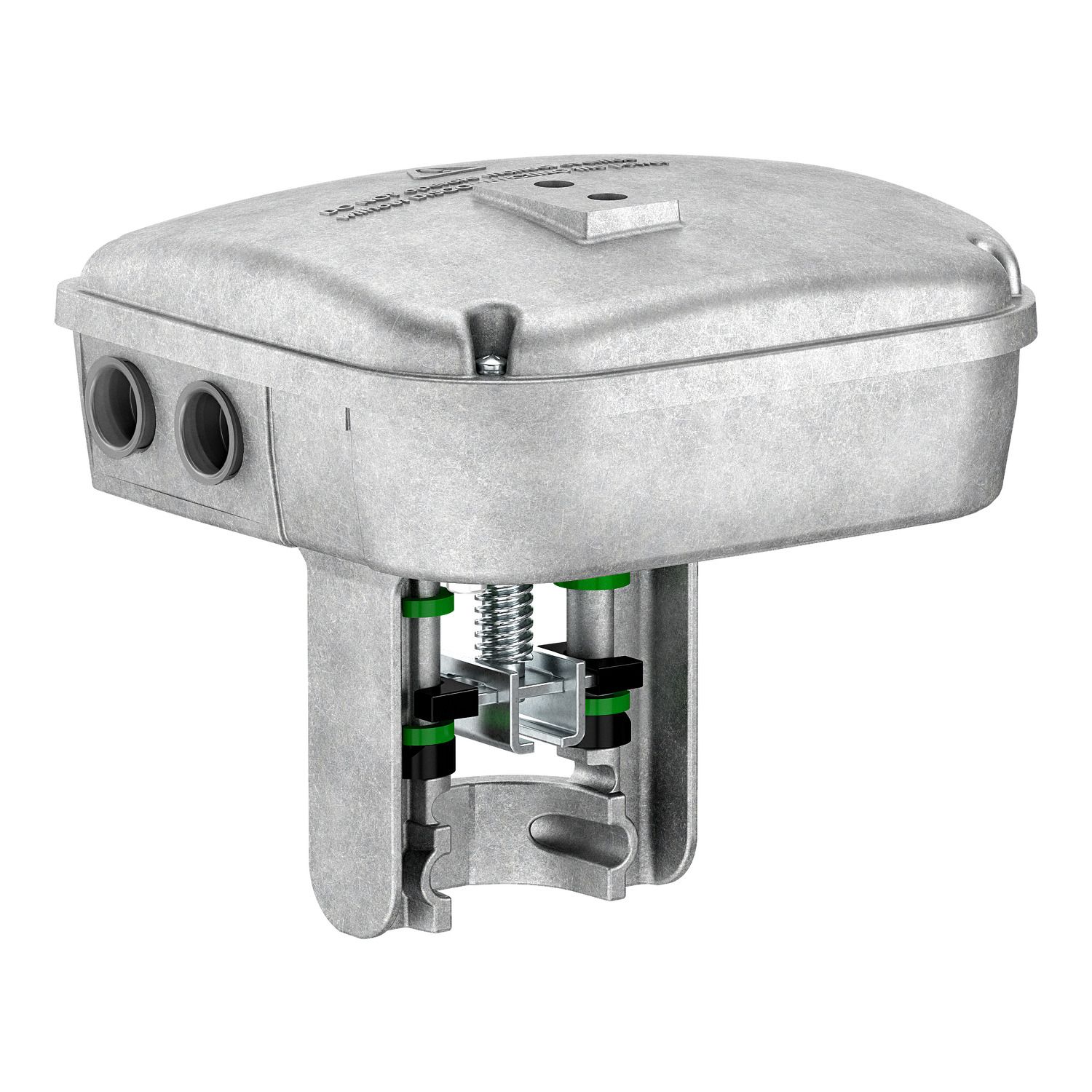

Picture of SpaceLogic MG600C Actuator for Globe Valves, Multi-Signal Control, Non-Spring Return, 24Vac/dc, Terminal Block Connection, 600N, IP54
SKU:

MG600C

SpaceLogic MG600C Actuator for Globe Valves, Multi-Signal Control, Non-Spring Return, 24Vac/dc, Terminal Block Connection, 600N, IP54

$812.13 INC GST
Availability: Please contact our sales team on 1300 724 622.
SpaceLogic MG600C Actuator for Globe Valves, Multi-Signal Control, Non-Spring Return, 24Vac/dc, Terminal Block Connection, 600N, IP54
  • Actuator for the VG210R / VG310R Globe Valves
  • Selectable input signals: 0..10 Vdc, 2..10 Vdc, 0..5 Vdc, 2-6 Vdc, 5-10 Vdc, 6-10 Vdc
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) available as an optional accessory
  • Manual override operation automatically cuts power to the PCBA
  • Zero point check upon power interruption
  • Replaceable circuit board
  • High resolution / positional accuracy
  • One touch stroke calibration
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
The MG600C-S is a compact linear eletro-mechanicl actuator for the control of the two-way VG210R, and three way VG310R globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches (optional accessory) of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Stay in place upon power failure is ensured by a solenoid lock on the motor. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.

Products specifications

Attribute name Attribute value
Main
Force N 600 N
Switch function 2 SPDT (optional)
IP degree of protection IP54
Relative humidity 0-90 %
Ambient air temperature for storage -10-50 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Product destination globe valve
Control type automatic reset
Transformer rated power in VA 30 VA
Stroke length 9-32 mm
Power consumption in W 4 W
Analogue input range 0...10 V DC
Ambient air temperature for operation -10-50 °C
Hold-in power consumption in W 3-3 W
Material EPDM: O-rings, reinforced teflon: seal
Stroke running time 15 s
Motor type brushless DC motor
Duty cycle 20 %
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Force lbf 135 lbf
Actuator linear
Actuator model MG600C
Control signal proportional/modulating, floating
Conduit connection gland for 6-9 mm O/D cable, 3 x M20
Leads and connections terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series MG600C
Power loss return non-spring return
Feedback signal 2...10 V DC
Stroke auto calibration True
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.4 cm
Package 1 Width 1.8 cm
Package 1 Length 18.4 cm
Package 1 Weight 1.82 kg

Related products

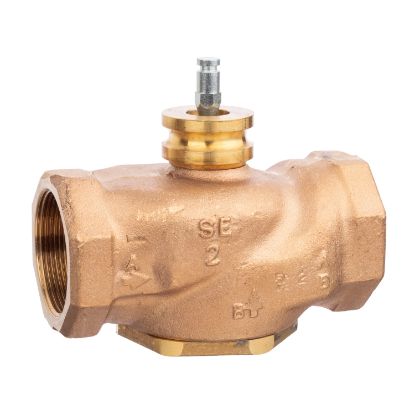

Picture of VG210R Globe Valve, 2-Way, DN50, Rp 2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 35 m³/h, Stem Up Closed.
