Picture of SmartX, Damper Actuator, floating, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2
SKU:

MF41-6043

SmartX, Damper Actuator, floating, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2

$214.29 INC GST
Available for Shipping : 02-Sep-2026
SmartX, Damper Actuator, floating, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Sep-2026
Instruction sheet
Product Page Link
Product Data Sheet
SmartX, Damper Actuator, floating, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2

Products specifications

Attribute name Attribute value
Main
Product destination globe valve,  dampers
Control type automatic reset
Duty cycle 100 %
Product or component type actuator
Power consumption in VA 2.3 VA AC
Targeted region Australia., North America.
Switch function No
Actuator rotation 95 °
Material polymer: housing
IP degree of protection IP11
Relative humidity 5-95 % non-condensing
Motor type AC synchronous servo motor
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 2
Actuator rotary
[Us] rated supply voltage 24 V AC
Ambient air temperature for operation -31.6-54.4 °C
Electrical insulation class class II
Tightening torque 5 N.m, 44 lb.in
Conduit connection 1/2"
Power loss return non-spring return
Leads and connections plenum
Actuator type electric
Actuator product range SmartX Actuator
Control signal floating
Actuator product series Mx4x-6xxx
Lead length 3 ft
Position indicator pointer and scale from 0...90°
Rotational range adjustment 0...95°
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.9 cm
Package 1 Width 14.0 cm
Package 1 Length 8.2 cm
Package 1 Weight 726.0 g

Related products

Picture of Venta, Globe Valve, 1-1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 28 Cv

Venta, Globe Valve, 1-1/2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 28 Cv

VB-7223-0-4-10
$913.33 INC GST
View Detail
Picture of Venta, Globe Valve, 2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 40 Cv

Venta, Globe Valve, 2 in, 2-way, straight threaded NPT, stem up closed, brass trim, 40 Cv

VB-7223-0-4-11
$1,234.64 INC GST
View Detail
Picture of VB: 1/2 in, 3W Div, Globe, NPT, UO, BR, 4.4 cv, Venta, No Steam

VB: 1/2 in, 3W Div, Globe, NPT, UO, BR, 4.4 cv, Venta, No Steam

VB-7323-0-4-04
$652.74 INC GST
View Detail

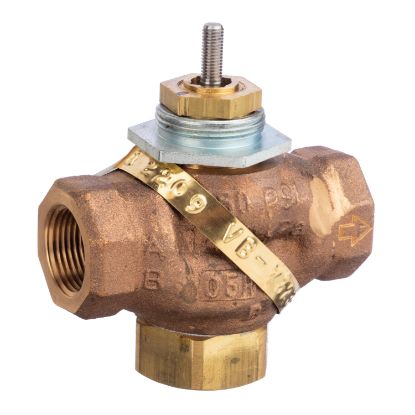

Picture of VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam

VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam

VB-7323-0-4-06
$764.06 INC GST
View Detail
Picture of VB: 1 in, 3W Div, Globe, NPT, UO, BR, 14 cv, Venta, No Steam

VB: 1 in, 3W Div, Globe, NPT, UO, BR, 14 cv, Venta, No Steam

VB-7323-0-4-08
$1,070.19 INC GST
View Detail

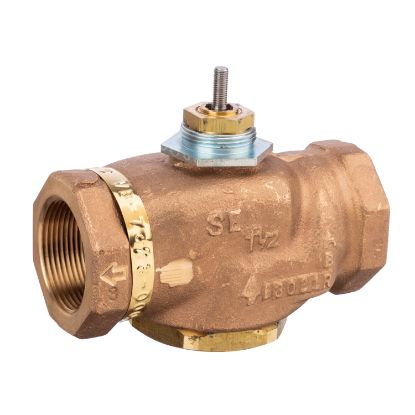

Picture of VB: 1-1/2 in, 3W Div, Globe, NPT, UO, BR, 28 cv, Venta, No Steam
