SKU:

MA51-7103-100

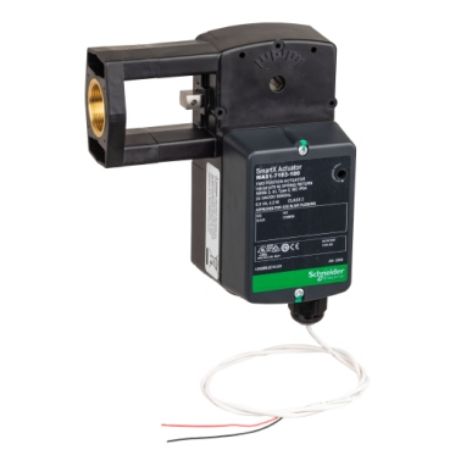

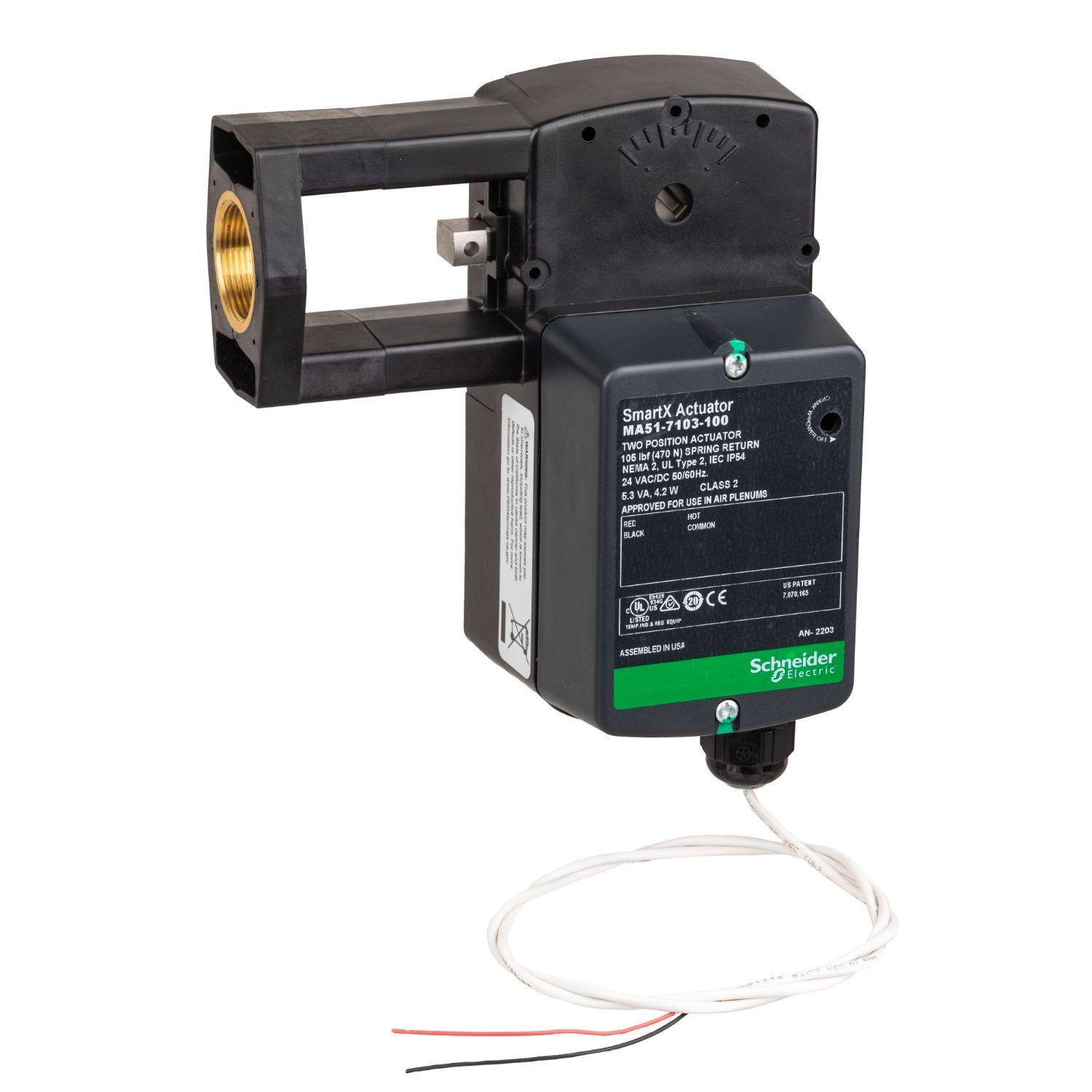

SmartX, Damper Actuator, 2-position, spring return, 24 Vac/Vdc, 3 ft plenum cable, 105 lbf, NEMA 2

$738.76 INC GST

Qty:

Available for Shipping : 12-Jan-2026

SmartX, Damper Actuator, 2-position, spring return, 24 Vac/Vdc, 3 ft plenum cable, 105 lbf, NEMA 2

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Product Page Link

Product Data Sheet

SmartX, Damper Actuator, 2-position, spring return, 24 Vac/Vdc, 3 ft plenum cable, 105 lbf, NEMA 2

Attribute name	Attribute value
Main
Product destination	globe valve
Control type	automatic reset
Force N	468 N
Product or component type	actuator
Power consumption in VA	5.3 VA AC
Targeted region	North America.
Switch function	No
Material	polymer: housing
IP degree of protection	IP11
Relative humidity	5-95 % non-condensing
Motor type	brushless DC motor
Ambient air temperature for storage	-40-71 °C
NEMA degree of protection	NEMA 2
Force lbf	105 lbf
Actuator	linear
[Us] rated supply voltage	20...30 V DC, 24 V AC/DC
Ambient air temperature for operation	-30-60 °C
Electrical insulation class	class II

Stroke auto calibration	True
Conduit connection	1/2"
Power loss return	spring return
Leads and connections	plenum
Actuator type	electric
Actuator product range	SpaceLogic
Control signal	2-position (on/off)
Actuator product series	MA51-710x
Lead length	3 ft
Position indicator	housing scale
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	29.9 cm
Package 1 Width	12.2 cm
Package 1 Length	22.9 cm
Package 1 Weight	1.796 kg
