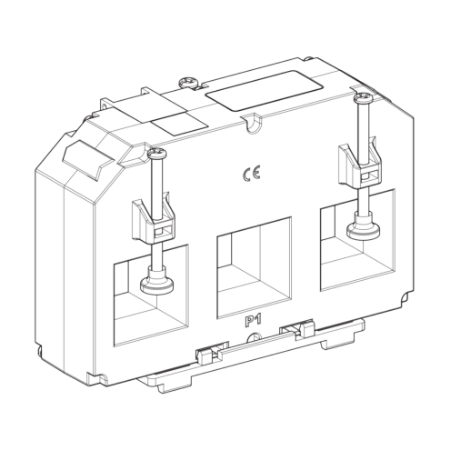

Picture of LVCT - 3-in-1 solid core CT RJ45 - 29mm entraxe - 200A : 0.333V output
SKU:

METSECTV29020

LVCT - 3-in-1 solid core CT RJ45 - 29mm entraxe - 200A : 0.333V output

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
LVCT - 3-in-1 solid core CT RJ45 - 29mm entraxe - 200A : 0.333V output
  • Solid core 3 in 1 LVCT of varied rating
  • 3 CTs mounted in single block for standard bus bar size
  • RJ-45 cable for interfacing between power meter and CT
  • Prevent wiring errors and associated rework costs
  • Plug and play CTs compatible for Schneider power meters
  • Inbuilt feature for auto detection of primary current
  • 3 CTs of 200Amps in a single block, 29mm phase centers
  • Quick installation in 1/3rd of time compared to traditional CTs
  • No need of multiple cables, CT shorting cables
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Brochure
Catalogue
Product Page Link
Product Data Sheet
Low-voltage, 3-in-1 Quick Click solid-core current transformer for cable and busbar measurement. It is rated for a 200 A circuit with 29 mm distance between centers. The CT block conventiently connects to PM22xxR and PM53xxR Series energy meters with a single RJ45 cable. Creating a simple and efficient installation solution which is ideal for panel builders.

Products specifications

Attribute name Attribute value
Main
Device short name LVCT 3in1
Current transformer type triple solid core
Output voltage 0.333 V
Range PowerLogic
Product or component type current transformer
Accessory / separate part category measurement accessory
Range compatibility PowerLogic PowerLogic PM5000 PM5320R, PowerLogic PowerLogic PM5000 PM5310R, EasyLogic EasyLogic PM2200 PM2220R, EasyLogic EasyLogic PM2200 PM2210R
Complementary
Distance between centers 29 mm
[In] rated current 200 A
Compatibility code LVCT
Height 35 mm
Width 90 mm
Measurement accuracy +/- 0.5 %
Opening of bars 20 x 16
Depth 76 mm total: , 60 mm body:
Net weight 500 g
Network frequency 60 Hz, 50 Hz
Environment
Standards EN 61869-2, EN 60044-8
Product certifications UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 7.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 450.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.35 kg
