SKU:

E03/10/10

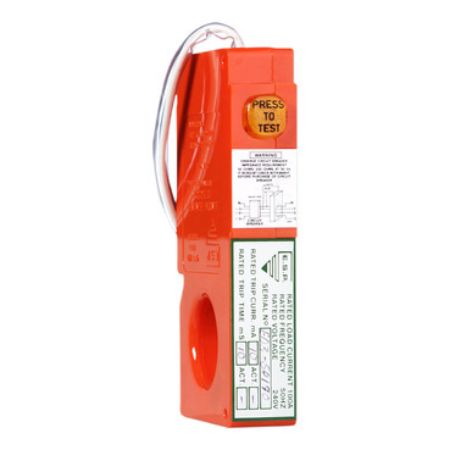

Medilec, RCD Relay, 240V, 10mA / 10Ms with Mounting Bracket

Old price: $1,328.80 INC GST

Price: $1,594.56 INC GST

Qty:

Available for Shipping : 22-Jun-2025

Medilec, RCD Relay, 240V, 10mA / 10Ms with Mounting Bracket

Manufacturer: Clipsal

CAD

Brochure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	220/230/240 V AC 50 Hz conforming to AS/NZS 3190
Earth-leakage protection time delay	40 ms
Product or component type	residual current protection relay
Earth-leakage sensitivity	10 mA conforming to AS/NZS 3190
Earth-leakage protection class	type I
Network type	AC
Range of product	Series E03
[In] rated current	100 A at 40 °C
Product brand	Clipsal
Complementary
Depth	72 mm
Width	27 mm
Colour	orange
[Uimp] rated impulse withstand voltage	6 kV conforming to AS/NZS 3190
Local signalling	1 neon
Protection type	MCB
[Ui] rated insulation voltage	500 V DC conforming to AS/NZS 3190
Residual current tripping technology	electromechanical
Control type	manual tripping test
Net weight	0.23 kg
Surge current	25 A
9 mm pitches	3
Mounting support	bracket
Height	141 mm
Network frequency	50 Hz
Environment
Product certifications	RCM conforming to AS/NZS 3190
Standards	AS/NZS 3190
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.7 cm
Package 1 Width	11.2 cm
Package 1 Length	15.7 cm
Package 1 Weight	307.0 g
