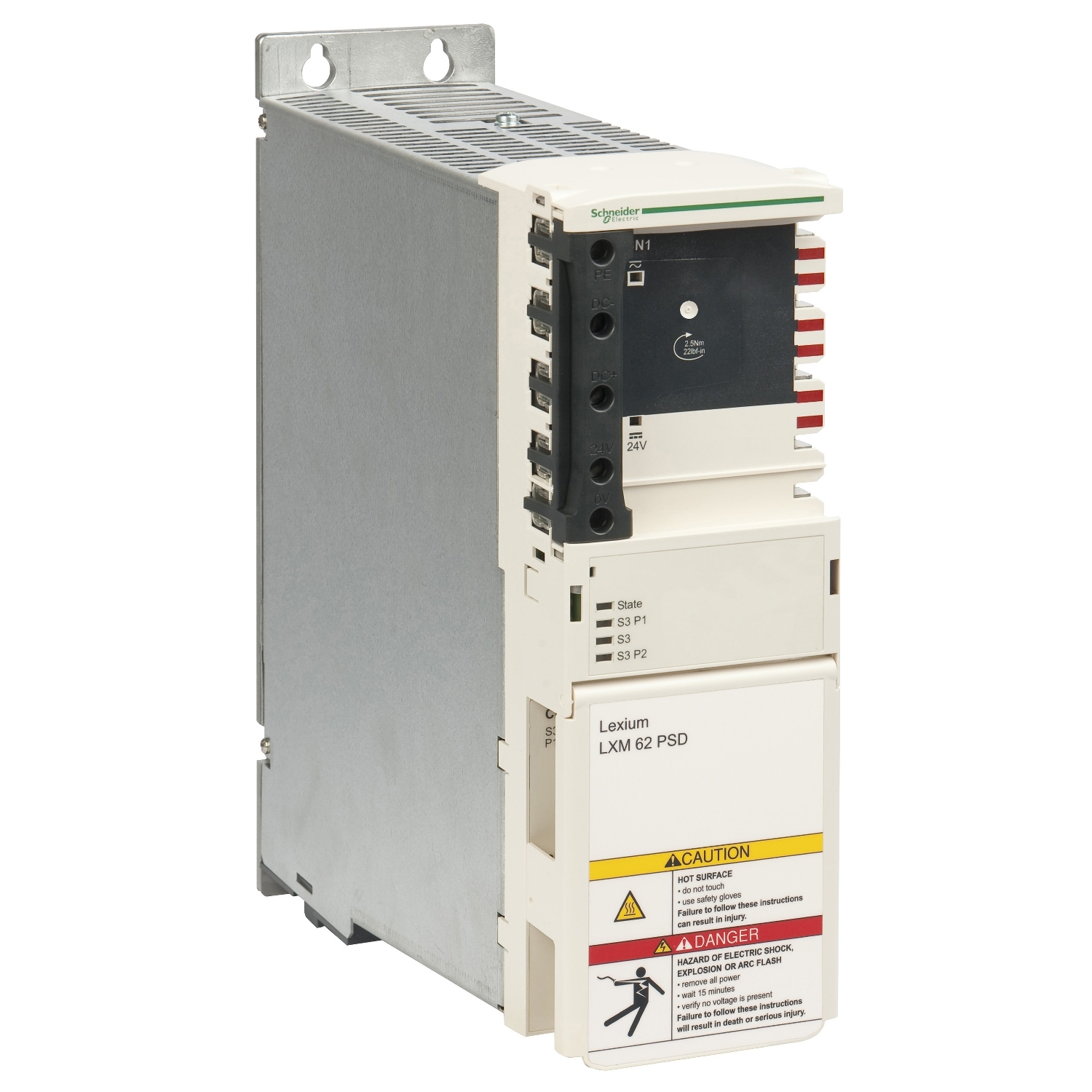

Picture of Lexium LXM 62 power supply drive - 10/20 A
SKU:

LXM62PD20A11000

Lexium LXM 62 power supply drive - 10/20 A

$3,380.52 INC GST
Available for Shipping : 07-Jan-2026
Lexium LXM 62 power supply drive - 10/20 A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 07-Jan-2026
Instruction sheet
Declaration of conformity
Environmental Disclosure
Circularity Profile
User guide
Catalog
Product Page Link
Product Data Sheet
This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V three/single phase and a rated supply current of 10A single/three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CE and CSA. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

Products specifications

Attribute name Attribute value
Main
Range of product PacDrive 3
Component name LXM62
Product or component type power supply
Complementary
Supply frequency 50/60 Hz +/- 5 %
Braking resistance 15 Ohm
Physical interface SERCOS III
Maximum braking power 46 kW
Marking CE
Output type 2 relays for volt-free contacts
[Us] rated supply voltage 230 V single phase (tolerance: - 10...10 %) , 230 V three phase (tolerance: - 10...10 %) , 400 V three phase (tolerance: - 10...10 %)
Height 310 mm
Safety level can reach PL d/category 3 conforming to EN/ISO 13849-1, can reach SIL 2 conforming to EN 61508
Maximum power 12.5 kW at 480 V three phase AC, 10.4 kW at 400 V three phase AC
Depth 270 mm
Nominal power 6.2 kW at 480 V three phase AC, 5.2 kW at 400 V three phase AC
Holding time 15 min
Width 89.5 mm
Supply circuit type AC
Bus voltage 270-700 V
Peak current 20 kA three phase AC for 1 s, 20 kA single phase AC for 1 s
Overvoltage category III conforming to EN 61800-5-1
Power supply output current 20 A
Maximum cable capacity 1.36 mF
Maximum DC bus voltage 860 V
Net weight 6.3 kg
[In] rated current 10 A three phase AC, 10 A single phase AC
[Uc] control circuit voltage 24 V DC (tolerance: - 20...25 %)
Permanent braking power 400 W
Environment
IP degree of protection IP20 conforming to EN/IEC 60721-3-3 (with plugged-in connectors)
Ambient air temperature for storage -25-55 °C
Pollution degree 2 conforming to EN/IEC 60721-3-3
Shock resistance 300 m/s² during transport conforming to EN/IEC 60721-3-3, 100 m/s² in operation conforming to EN/IEC 60721-3-3
Ambient air temperature for operation 5-40 °C, 40-55 °C (with current derating of 2 % per °C)
Vibration resistance 10 m/s² conforming to EN/IEC 60721-3-3
Environmental characteristic 3K3 conforming to IEC 60721-3-3 5-85 %
Standards EN/IEC 61800-3, EN/IEC 61800-5-1, UL 508C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 34.000 cm
Package 1 Length 44.500 cm
Package 1 Weight 7.286 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 55.000 kg
