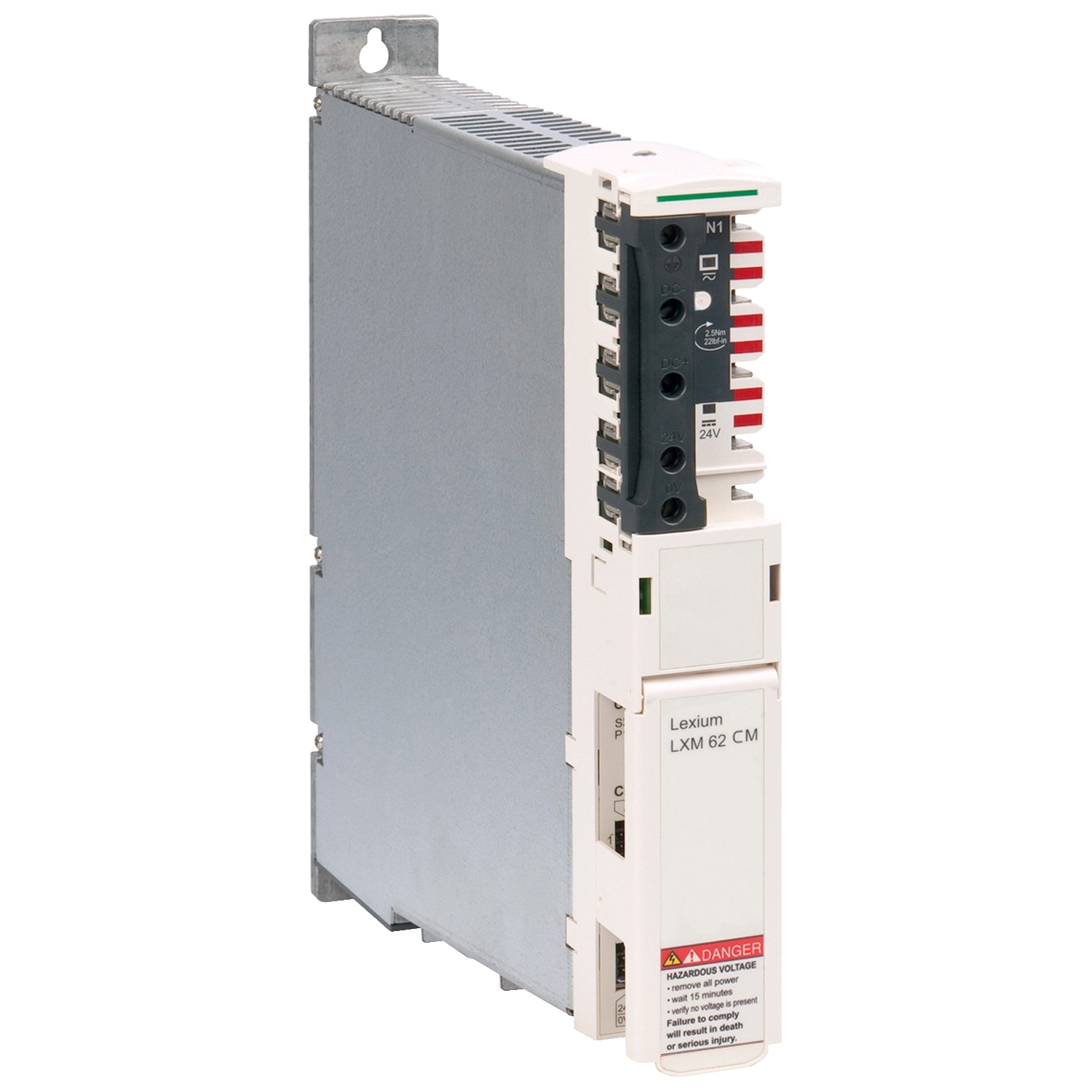

Picture of connection module to LXM62PD84A11000
SKU:

ILM62CMD20A000

connection module to LXM62PD84A11000

$1,848.00 INC GST
Available for Shipping : 06-Jan-2026
connection module to LXM62PD84A11000
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
CAD
Circularity Profile
User guide
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the PacDrive 3 range, an offer of connection accessories. This connection module features SERCOS III interface. It is an integrated servo motor with a supply voltage of 250V to 700V and an input current of 20A. It is an IP20 rated product. Its dimensions are 44.5mm (width) x 270mm (depth) x 310mm (height). It weighs 3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

Products specifications

Attribute name Attribute value
Main
Device short name ILM
Product or component type connector module
Accessory / separate part category connection accessories
Range of product PacDrive 3
Complementary
Depth 270 mm
Width 44.5 mm
Peak output current 40 A
Type of cooling natural convection
Overvoltage category class 3 conforming to IEC 61800-5-1
Physical interface SERCOS III
Control threshold overvoltage 860 V
Input current 20 A
[Us] rated supply voltage 250...700 V
Net weight 3 kg
[Uc] control circuit voltage 24 V DC (tolerance: - 20...25 %)
Output current 20 A
Height 310 mm
Environment
IP degree of protection IP20
Pollution degree 2 conforming to IEC 61800-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 33.500 cm
Package 1 Length 44.500 cm
Package 1 Weight 2.835 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 41.350 kg
