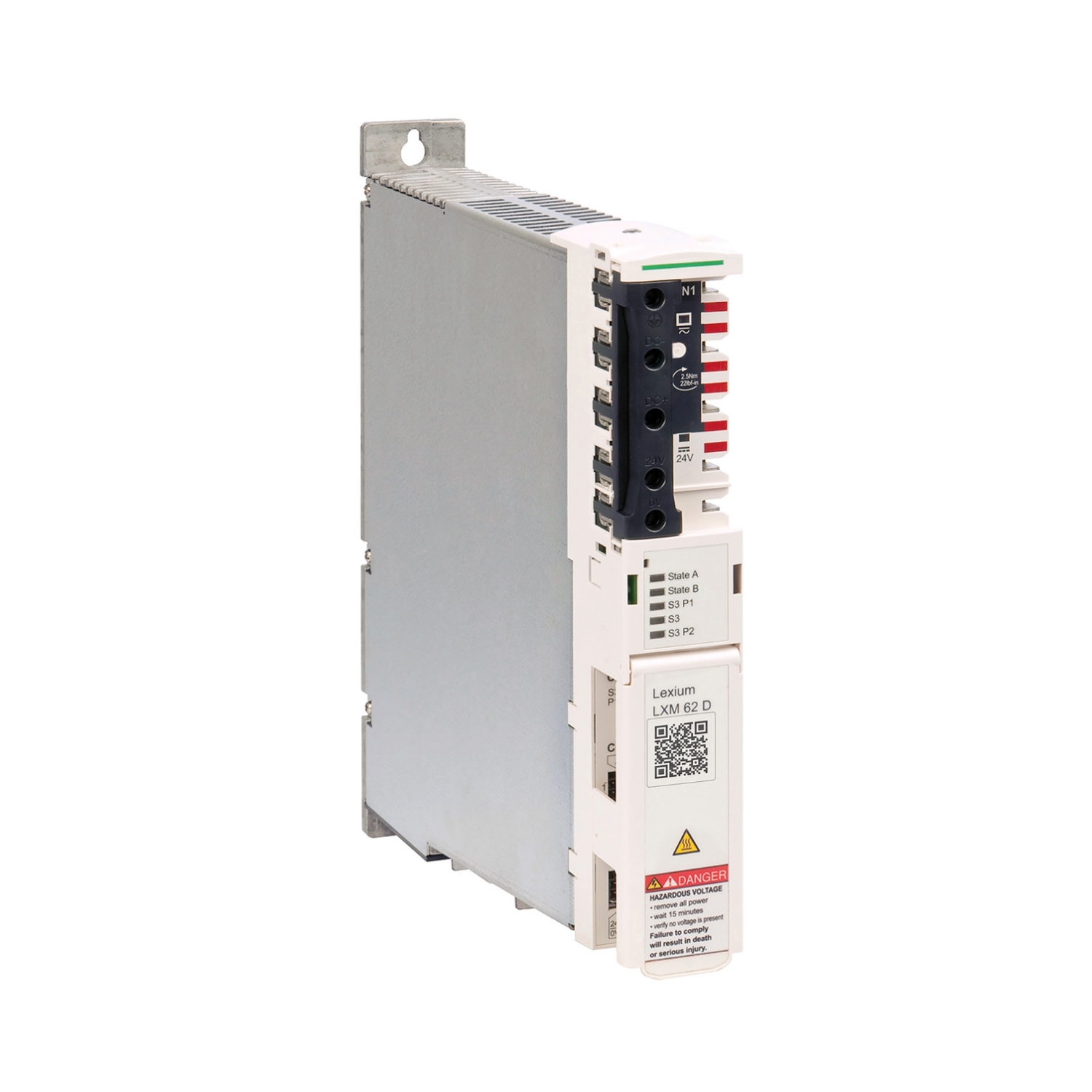

Picture of Lexium 62 Double Drive 15 A - accessory kit included
SKU:

LXM62DD15D21000

Lexium 62 Double Drive 15 A - accessory kit included

$5,064.84 INC GST
Available for Shipping : 07-Jan-2026
Lexium 62 Double Drive 15 A - accessory kit included
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 07-Jan-2026
Circularity Profile
Instruction sheet
Environmental Disclosure
Catalog
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 2.4kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets IEC 61508, EN/ISO 13849-1, EN 61800-5-1, IEC 62061, EN 62061, CSA C22.2 No 14 and EN 61800-5-2 standards. This product is compatible with servo motor SH3 (70mm, 2 motor stacks), servo motor SH3 (70 m, 3 motor stacks), servo motor SH3 (100mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.

Products specifications

Attribute name Attribute value
Main
Device short name LXM 62
Range of product PacDrive 3
Component name LXM62
Product or component type double drive
Complementary
Continuous output current 5 A at 4 kHz
Tightening torque CN1: 2.5-2.5 N.m
Electrical connection terminal, clamping capacity: 0.2...6 mm², AWG 24...AWG 10 (CN7), terminal, clamping capacity: 0.75...16 mm², AWG 18...AWG 6 (CN6), terminal, clamping capacity: 0.5...16 mm², AWG 20...AWG 6 (CN5), terminal, clamping capacity: 0.2...15 mm², AWG 24...AWG 16 (CN4)
Communication interface SERCOS III, integrated
Height 310 mm
Number of outputs 2 digital
Continuous power 2.4 kW
Supply frequency 50/60 Hz - 5...5 %
Nominal power 2.4 kW
Depth 270 mm
Overvoltage category III
Width 44.5 mm
Product compatibility servo motor MH3 (100 mm, 1 motor stacks)optimized in terms of torque and speed, servo motor MH3 (70 mm, 3 motor stacks)optimized in terms of torque and speed, servo motor MH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed, servo motor SH3 (140 mm, 1 motor stacks)optimized in terms of high torque, servo motor SH3 (100 mm, 3 motor stacks)optimized in terms of high torque, servo motor SH3 (100 mm, 2 motor stacks)optimized in terms of high torque, servo motor SH3 (100 mm, 2 motor stacks)optimized in terms of torque and speed, servo motor SH3 (100 mm, 1 motor stacks)optimized in terms of torque and speed, servo motor SH3 (70 mm, 3 motor stacks)optimized in terms of torque and speed, servo motor SH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed, servo motor SHS
Safety function STO (safe torque off)
Discrete output voltage 24 V DC
Switching frequency 8 kHz
Number of inputs 2 touch probe, 2 digital
Net weight 3 kg
Network number of phases three phase
Discrete input voltage 24 V DC for - 20...25 %
Output current 3s peak 15 A at 4 kHz
[Us] rated supply voltage 230 V (- 10...10 %) for single phase, 230 V (- 10...10 %) for three phase, 400 V (- 10...10 %) for three phase
Environment
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 2 conforming to IEC 61800-5-2
Relative humidity 5-85 %
Ambient air temperature for operation 5-55 °C
Vibration resistance 10 m/s² conforming to IEC 60721-3-3
Environmental characteristic 3K3 conforming to IEC 60721-3-3
Shock resistance 100 m/s² conforming to IEC 60721-3-3
Standards IEC 61800-3, UL 508C, ISO 13849-2, IEC 61800-5-2, CSA C22.2 No 14, IEC 62061, IEC 61800-5-1, ISO 13849-1, IEC 61508
Product certifications TÜV, CE, CSA, EAC, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.500 cm
Package 1 Width 33.500 cm
Package 1 Length 44.000 cm
Package 1 Weight 4.032 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 48.000 kg
