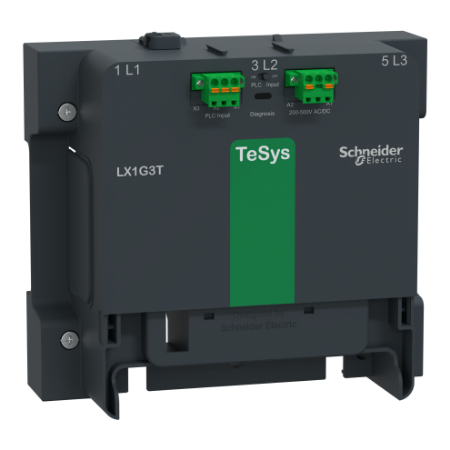

Picture of Control module,TeSys Giga,48-130V AC/DC,for LC1G630-800/3P advanced version
SKU:

LX1G3TEHEA

Control module,TeSys Giga,48-130V AC/DC,for LC1G630-800/3P advanced version

$5,271.49
Available for Shipping : 10-Oct-2024
Control module,TeSys Giga,48-130V AC/DC,for LC1G630-800/3P advanced version
  • AC/DC wide band electronic coil, more robust to voltage fluctuations and address different global voltage systems
  • Less number of references, simple to select, choose means less inventory
  • Coils are accessible from the front and maintained with very low down times
  • Low power consumption make significant savings on automation equipment, saves space and simplifies the diagrams
  • Advanced & Standard versions to address customer needs, PLC output control in Advanced version
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Instruction sheet
Catalog
China RoHS declaration
EU RoHS Declaration
REACh Declaration
End of life manual
Product Environmental
It is a 48-130V AC/DC control module for 3 poles TeSys Giga 630-800 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Products specifications

Attribute name Attribute value
Main
Mechanical durability 5 Mcycles
Device short name LX1G
Product compatibility LC1G630...800
Operating time 40...55 ms closing, 20...35 ms opening
Poles description 3P
Number of modules per PLC per PC 1
Maximum operating rate 600 cyc/mn 60 °C
Range TeSys
Product or component type contactor coil
Range compatibility TeSys G LX1G contactor coil
Range of product TeSys G
[Uc] control circuit voltage 48...130 V AC/DC 50/60 Hz
Complementary
Coil technology built-in bidirectional peak limiting
Connections - terminals control circuit: push-in termination 2 cable(s) 0.5-1.0 mm² rigid or stranded with cable end sleeve AWG 20...AWG 18, control circuit: push-in termination 1 cable(s) 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14, control circuit: push-in termination 1 cable(s) 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12
Control circuit voltage limits drop-out: 0...0.45 Uc (at 60 °C), operational: 0.8...1.1 Uc (at 60 °C)
Environment
Permissible ambient air temperature around the device -40-70 °C at Uc
Depth 211 mm
Width 192 mm
Quantity per set 1
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Net weight 2210 g
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to SEMI F47, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, emission tests criteria A conforming to IEC 60947-4-1, EMC immunity conforming to IEC 60947-4-1
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1A, EN/IEC 60947-4-1
Ambient air temperature for operation -25-60 °C
Height 130 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22 cm
Package 1 Width 27 cm
Package 1 Length 29 cm
Package 1 Weight 2.6 kg
